Page 16 WS1CS & WS1.25CS Manual
Drawing No. Order No. Description Quantity
1 V3175-01 WS1 FRONT COVER ASY 1
2 V3107-01 WS1 MOTOR 1
3 V3002-A WS1 DRIVE BRACKET ASY 1
4 V3108CS-03BOARD WS1/125 CS PCB XMEGA SMT REPL 1
5 V3110 WS1 DRIVE REDUCING GEAR 12X36 3
6 V3109 WS1 DRIVE GEAR COVER 1
7 V3106-01* WS1 DRIVE BRACKET & SPRING CLIP 1
Not Shown V3186-05 WS1 POWER SUPPLY 15VDC VI 1

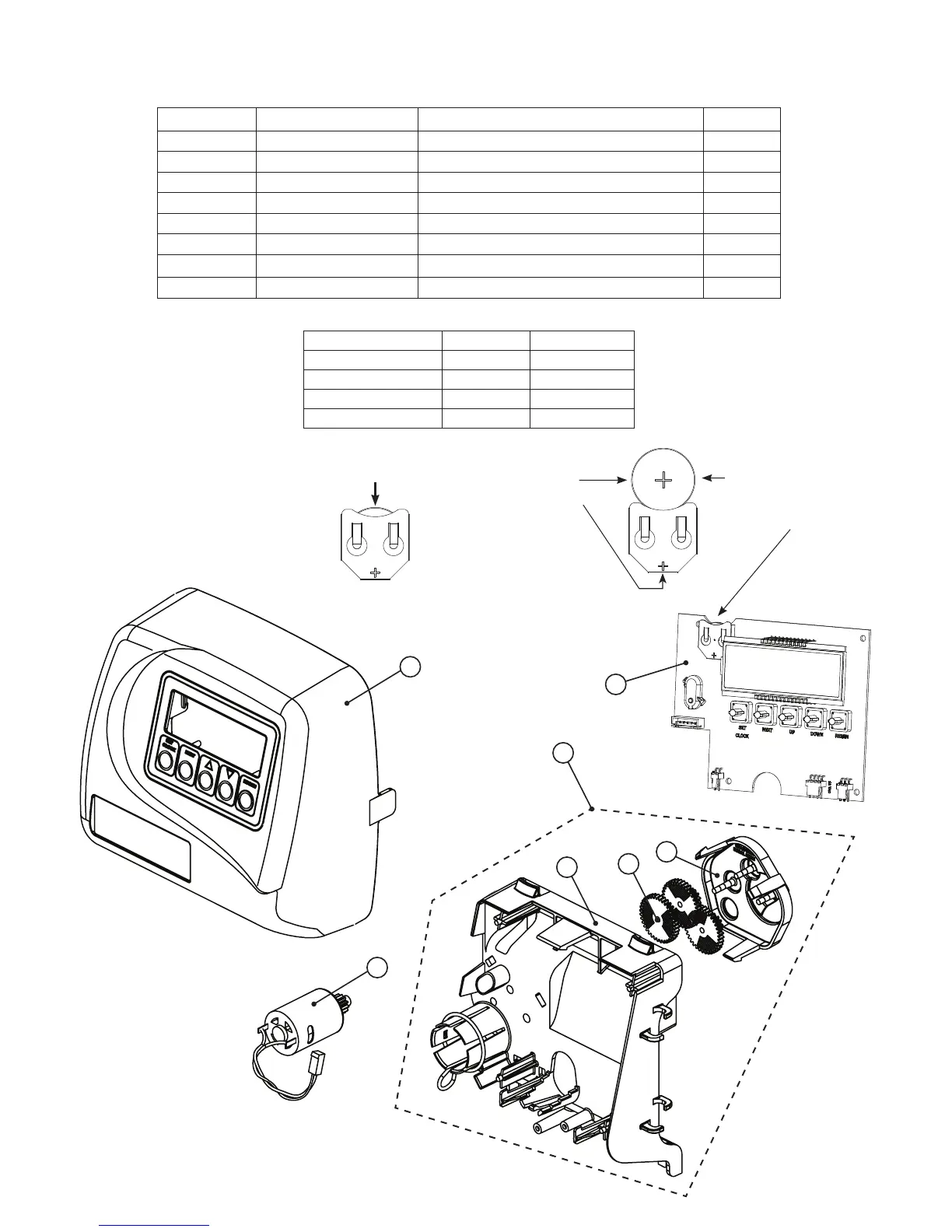

CS Front Cover and Drive Assembly
Battery Fully Seated
When replacing the battery, align
positives and push down to fully seat.
Correct
Battery
Orientation
Battery replacement is
3 volt lithium coin cell
type 2032.
AC Adapter U.S. International
Supply Voltage 120 V AC 230V AC
Supply Frequency 60 Hz 50 Hz
Output Voltage 15VDC 15VDC
Output Current 500 mA 500 mA
* Drawing number parts 2, 5, 6 and 7 may be purchased as a complete assembly, part V3002.
1
2
3
4
5
7
6
To Next Page
