Page 14 WS1CS & WS1.25CS Manual
Diagnostics
STEP 1D – Press ▼ and ▲ simultaneously for three seconds. If screen in step 2D does not appear
in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and SET CLOCK in
sequence, then press ▲ and ▼ simultaneously for 3 seconds.
STEP 2D
– Days, since last regeneration: This display shows the days since the last
regeneration occurred. Press NEXT to go to Step 3D. Press REGEN to exit Diagnostics.
STEP 3D – Gallons, since last regeneration: This display shows the number of gallons that
have been treated since the last regeneration. This display will equal zero if a water meter is not
installed. Press NEXT to go to Step 4D. Press REGEN to return to previous step.
STEP 4D – Gallons, reserve capacity used for last 7 days: If the valve is set up as a softener, a meter
is installed and Set Gallons Capacity is set to “Auto,” this display shows 0 day (for today) and
fl ashes the reserve capacity. Pressing ▲ will show day
1 (which would be yesterday) and fl ashes the reserve
capacity used. Pressing ▲ again will show day 2 (the day
before yesterday) and the reserve capacity. Keep pressing
▲ to show the gallons for days 3, 4, 5 and 6. ▼ can be
pressed to move backwards in the day series. Press NEXT
at any time to go to Step 5D. Press REGEN to return to
previous step.
STEP 5D - Gallons, 63 day usage history: This display
shows day 1 (for yesterday) and fl ashes the number of
gallons treated yesterday. Pressing ▲ will show day 2
(which would be the day before yesterday) and fl ashes the
number of gallons treated on that day. Continue to press
▲ to show the maximum number of gallons treated for the last 63 days. This display will show
dashes if a water meter is not installed. Press NEXT at any time to go to Step 6D. Press REGEN
to return to previous step.
STEP 6D – Flow rate, current: Turn the water on at one or more taps in the building. The fl ow
rate in gallons per minute will be displayed. If fl ow stops the value will fall to zero in a few
seconds. This display will equal zero if a water meter is not installed. Press NEXT to go to Step
7D. Press REGEN to return to previous step.
STEP 7D – Flow rate, maximum last seven days: The maximum fl ow rate in gallons per minute
that occurred in the last seven days will be displayed. This display will equal zero if a water meter
is not installed. Press NEXT to go to Step 8D. Press REGEN to return to previous step.
STEP 8D – Gallons, total used since last reset: The total number of gallons used since last reset
will be displayed. This display will equal zero if a water meter is not installed. Press NEXT to go
to Step 9D. Press REGEN to return to previous step.
STEP 9D – Days, total number since last reset: The total number of days the control valve has
been in service since last reset will be displayed. Press NEXT to go to Step 10D. Press REGEN to
return to previous step.
STEP 10D – Regenerations, total number since last reset: The total number of regenerations that
have occurred since last reset will be displayed. Press NEXT to exit Diagnostics. Press REGEN to
return to previous step.

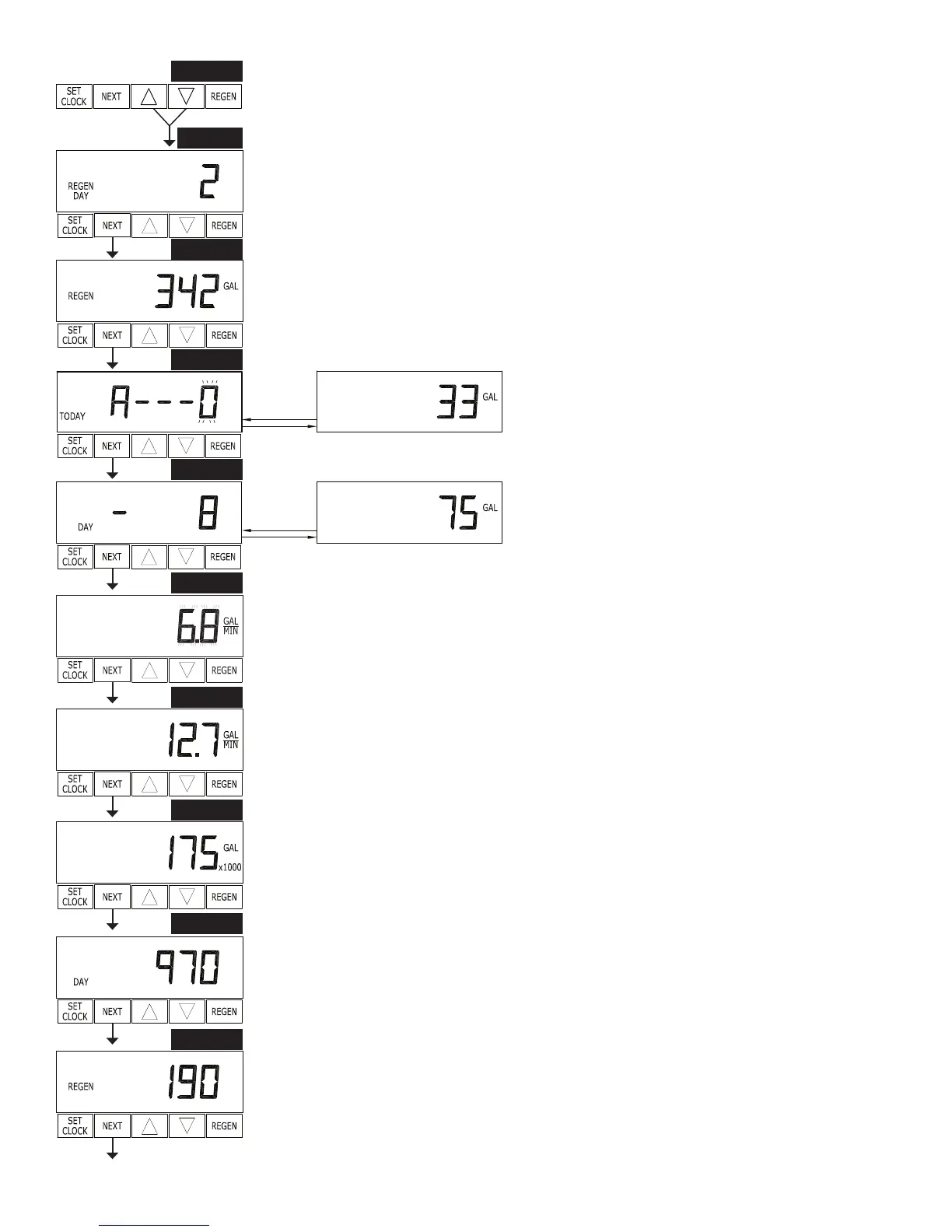

STEP 10D
When desired, all information in Diagnostics may be reset to zero when the valve is installed
in a new location. To reset to zero, press NEXT and ▼ simultaneously to go to the Service/
OEM screen, and release. Press ▼ and ▲ simultaneously to reset diagnostic values to zero.
Screen will return to user display.
RETURN TO
NORMAL MODE
STEP 9D
STEP 8D
STEP 7D
STEP 6D
STEP 5D
STEP 4D
STEP 3D
STEP 2D
STEP 1D
