WS1CS & WS1.25CS Manual Page 9
OEM Softener System Setup
This is a quick reference setup procedure. See OEM Softener System Setup Detail for more
information on available settings.
STEP 1S – Press NEXT and ▼ simultaneously for 3 seconds. If screen in step 2S does not
appear in 5 seconds the lock on the valve is activated. To unlock press ▼, NEXT, ▲, and
SET CLOCK in sequence, then press NEXT and ▼ simultaneously for 3 seconds.
STEP 2S – Choose Softening using ▼ or ▲. Press NEXT to go to Step 3S. Press REGEN
to exit OEM Softener System Setup.
STEP 3S – Set Refi ll option using ▼ or ▲:
• “PoST” to refi ll the brine tank after the fi nal rinse; or
• “PrE” to refi ll the brine tank two hours before the regeneration time set.
Press NEXT to go to Step 4S. Press REGEN to return to previous step.
STEP 4S – Program Code: Enter the desired program code from Table 2 or Table 3.
Prior to selecting a Program Code, verify the correct valve body, main piston, regenerant
piston, and stack are being used, and that the injector or injector plug(s) are in the correct
locations. See Compliance Table in WS1 and WS1.25 Drawings and Service Manual.
Press NEXT to go to Step 5S. Press REGEN to return to previous step.
STEP 5S – Enter the ion exchange capacity in grains of hardness as calcium carbonate for
the system based on test data using ▼ or ▲. Press NEXT to go to Step 6S. Press REGEN to
return to previous step.
STEP 6S – Enter the pounds of salt per regeneration using ▼ or ▲.
Press NEXT to go to Step 7S. Press REGEN to return to previous
step.
STEP 7S – Set Gallons Capacity using ▼ or ▲:
• “AUTO” (reserve capacity automatically estimated and gallons capacity
automatically calculated from grains capacity and water hardness);
• “oFF” (regeneration based on day override); or
• number of gallons (20 to 50,000).
See Setting Options Table for more detail. Press NEXT to go to Step 8S. Press REGEN to
return to previous step.
STEP 8S – Set Regeneration Time Option using ▼ or ▲:
• “NORMAL” means regeneration will occur at the preset time;
• “on 0” means regeneration will occur immediately when the gallons capacity reaches
0 (zero); or
• “NORMAL + on 0” means regeneration will occur at one of the following:
the preset time when the gallons capacity falls below the reserve or the specifi ed number of
• days between regenerations is reached whichever comes fi rst; or
• after 10 minutes of no water usage when the gallon capacity reaches 0 (zero).
See Setting Options Table for more detail. Press NEXT to exit OEM Softener System
Setup. Press REGEN to return to previous step.
RETURN TO
NORMAL
MODE

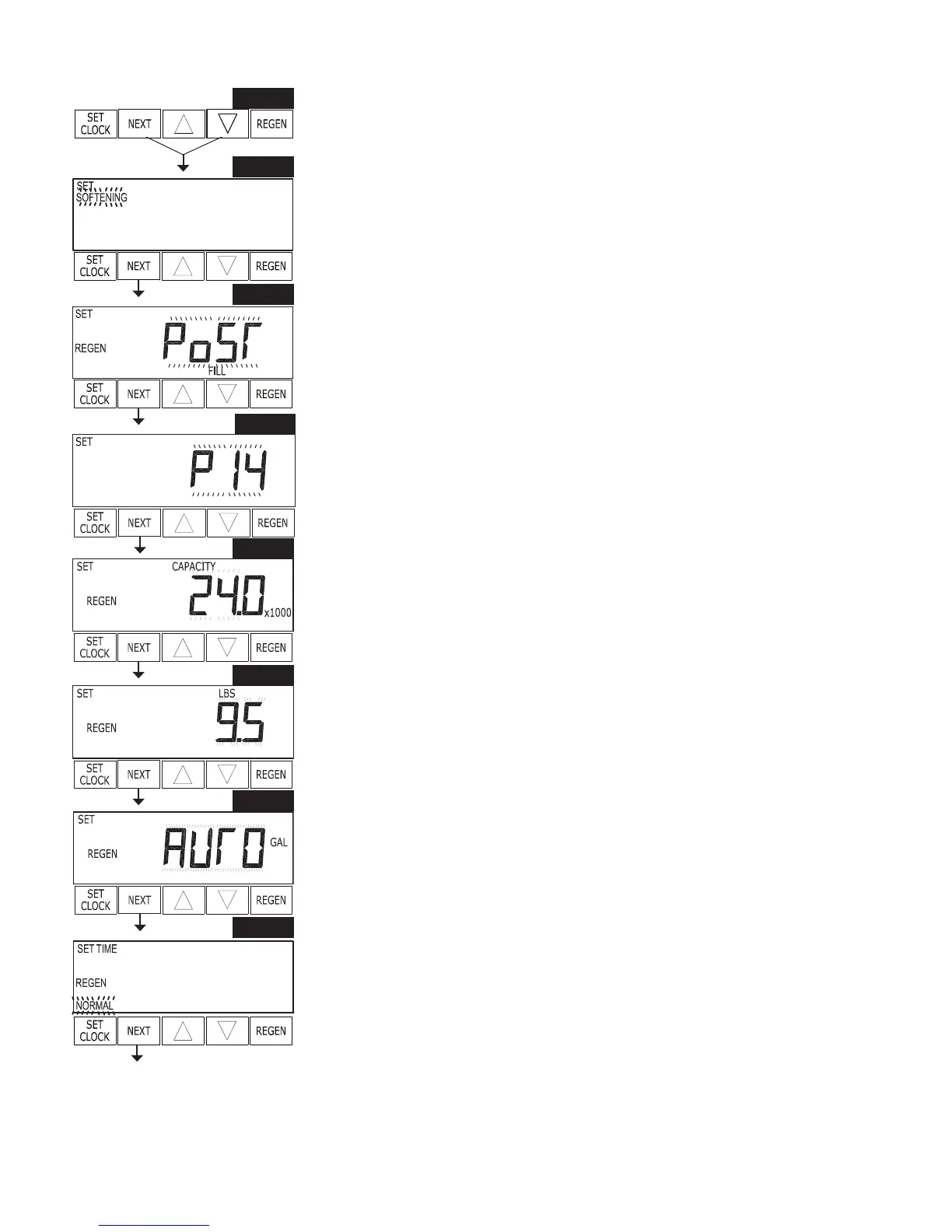

STEP 3S
STEP 2S
STEP 1S
STEP 5S
STEP 6S
STEP 7S
STEP 8S
STEP 4S
