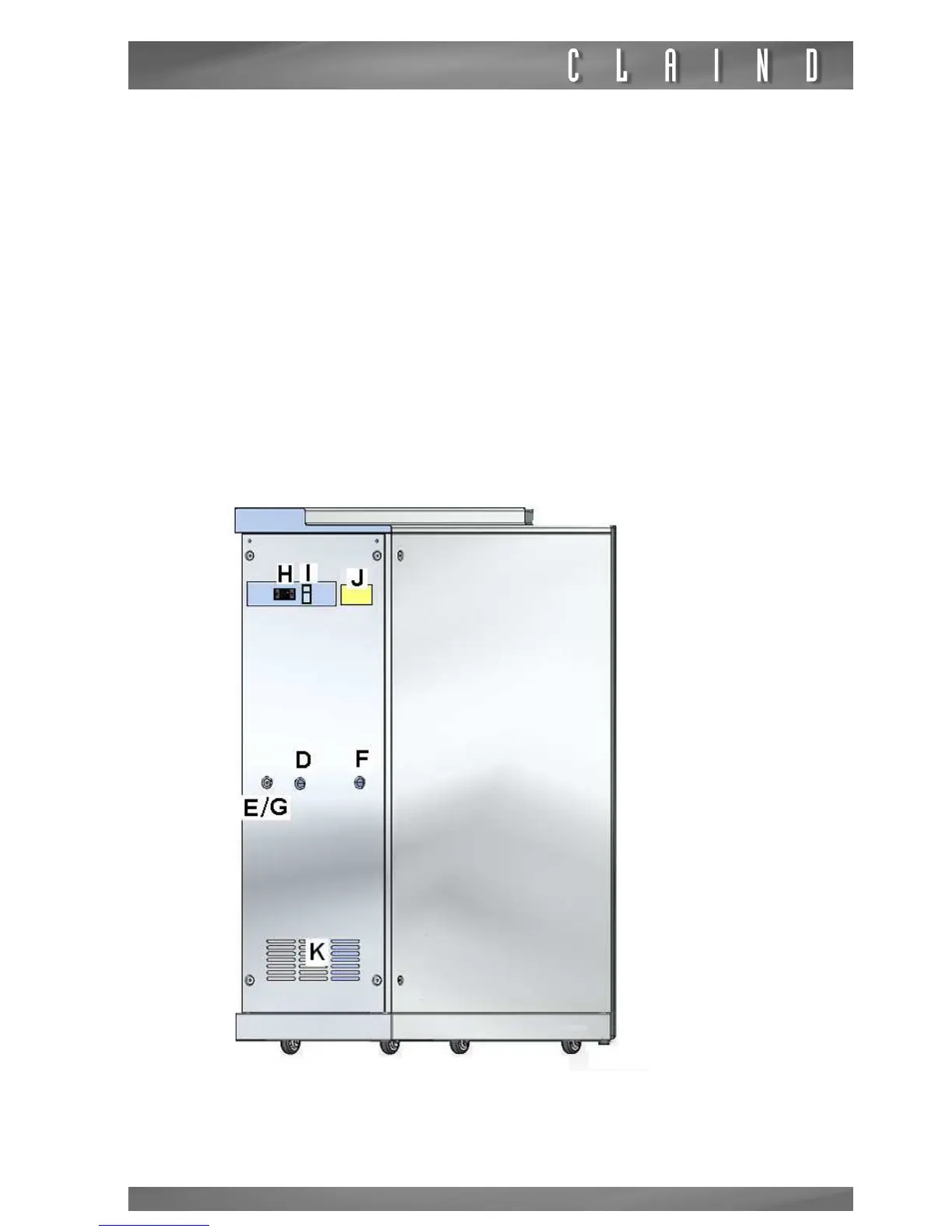

3.3.2. Rear view
D. NITROGEN OUTLET: pneumatic connection for the generator’s nitrogen
delivery
E. AIR INLET: pneumatic connection for compressed air line inlet. Not used for
NiGen HF-1 and NiGen LCMS 40-1
F. DRAIN: pneumatic connection for the condensation drain line. Not used for
NiGen HF-0, NiGen LCMS 40-0 and NiGen LCMS 100
G. AIR OUTLET: pneumatic connection for an optional line for compressed air
produced by the compressor. Not used for NiGen HF-0, NiGen LCMS 40-0 and
NiGen LCMS 100
H. CONNECTOR for electric power supply cable
I. “POWER" KEY: ON-OFF SWITCH
J. IDENTIFICATION LABEL: states the model, serial number (SN) and electrical
specifications
K. VENTILATION GRILLE
FIGURE 3.3.2. Rear view
