Manipulating the Map Screen
17
MAX973HD
English
• 3D Map
• 2D/2D Map
• 2D/3D Map

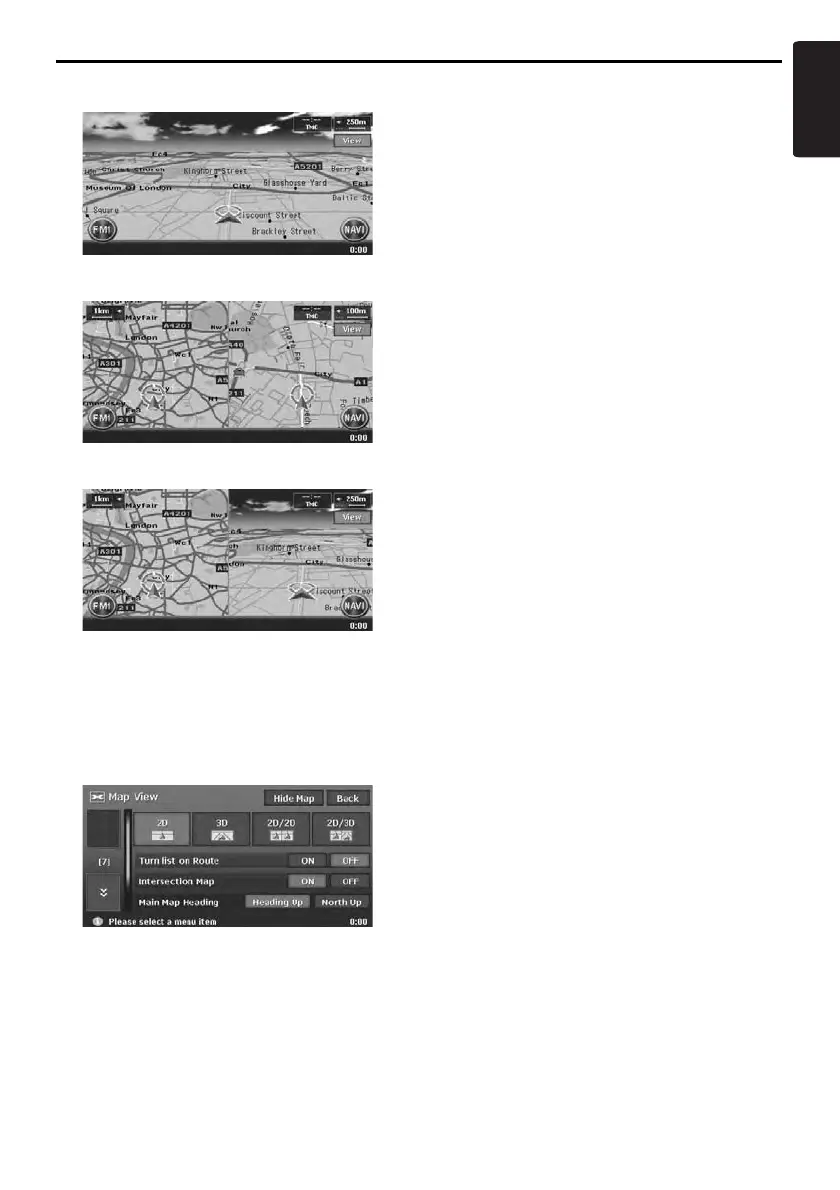

Touch the [View] key on the Map screen of the
current vehicle location. The Map View menu is
displayed.
Note:
You can also adjust these settings from
[Navigation] of the Setting menu. ➜ “Map View
settings” (P. 44)
[D]/[d] key:
Scrolls the Map View menu screen up or down.
[2D] key:
Changes to the map represented to the plane just
like the map of atlases.
[3D] key:
Changes to the 3D map using a viewing position
above the vehicle while looking in the direction of
the car heading.
Note:
To change the 3D angle, set the “3D Map Angle” as
mentioned below.
[2D/2D] key:
Displays two 2D maps right and left on the
divided screen. This is convenient to view two
maps with different scales.
Note:
To change the orientation or scale of the left map,
set the “Left Map Heading” or “Left Map Scale” as
mentioned below.
[2D/3D] key:
Displays a 2D map at the left and a 3D map at the
right on the divided screen.
Note:
To change the orientation or scale of the left map,
use the “Left Map Heading” or “Left Map Scale” as
mentioned below.
“Turn list on Route”:
During the route guidance mode: Set to ON to
display the list of the name, distance, and turning
direction of the guidance intersections at the left
of the screen.
•[ON]
Displays the Turn List screen.
•[OFF]
Hides the Turn List screen.
“Intersection Map”:
Changes the setting of the Intersection Close-up
display which displays the turning direction of the
next guidance intersection.
•[ON]
Displays the Intersection Close-up display.
•[OFF]
Hides the Intersection Close-up display.
“Main Map Heading”:
Changes the orientation of the map. This control
is available when the main map or the right map
is set to 2D mode.
•[Heading Up]
The map is displayed with the travelling
direction pointing up.
•[North Up]
The map is displayed with north pointing up.
“Left Map Scale”:
Changes the scale of the left map. This control is
available when a divided map mode is selected.
•[–]
Increases the map scale, and shows a more
detailed map.
•[+]
Decreases the map scale, and shows the map
of a wider area.
