INSTALLATION AND WIRE
CONNECTION MANUAL
Installing the Microphone for Voice Control
Note:
• Wipe off the dirt of the mounting surface before installing the microphone.
1. Stick the double-sided tape to the bottom face of the microphone.
2. Attach the microphone on a flat surface of the steering column or dashboard close to the driver.
3. Turn the microphone towards the mouth of the person who operates the system.
4. Connect the microphone extension lead to the microphone as required.
5. Fasten the lead using the lead holders.
Connecting the Speed Sensor
Note:
• Take care when connecting to the EC (Engine Control Computer) vehicle speed signal line.
1. Confirm the position of the EC (Engine Control Computer) and the vehicle speed signal line referring
to your car make/model.
2. Remove the vehicle parts, and confirm the position of the vehicle speed signal line of the EC.
3. Connect the vehicle speed signal line and the speed sensor connection lead of the vehicle signal lead
of this unit using the electro-tap for speed sensor.
4. Connect the negative terminal of the battery and start the engine.
Drive the vehicle slowly and check that the signals are proportional to the vehicle speed and are
correctly detected by displaying the connection check screen (see the “Navigation System Check”
section of the Navigation Manual).

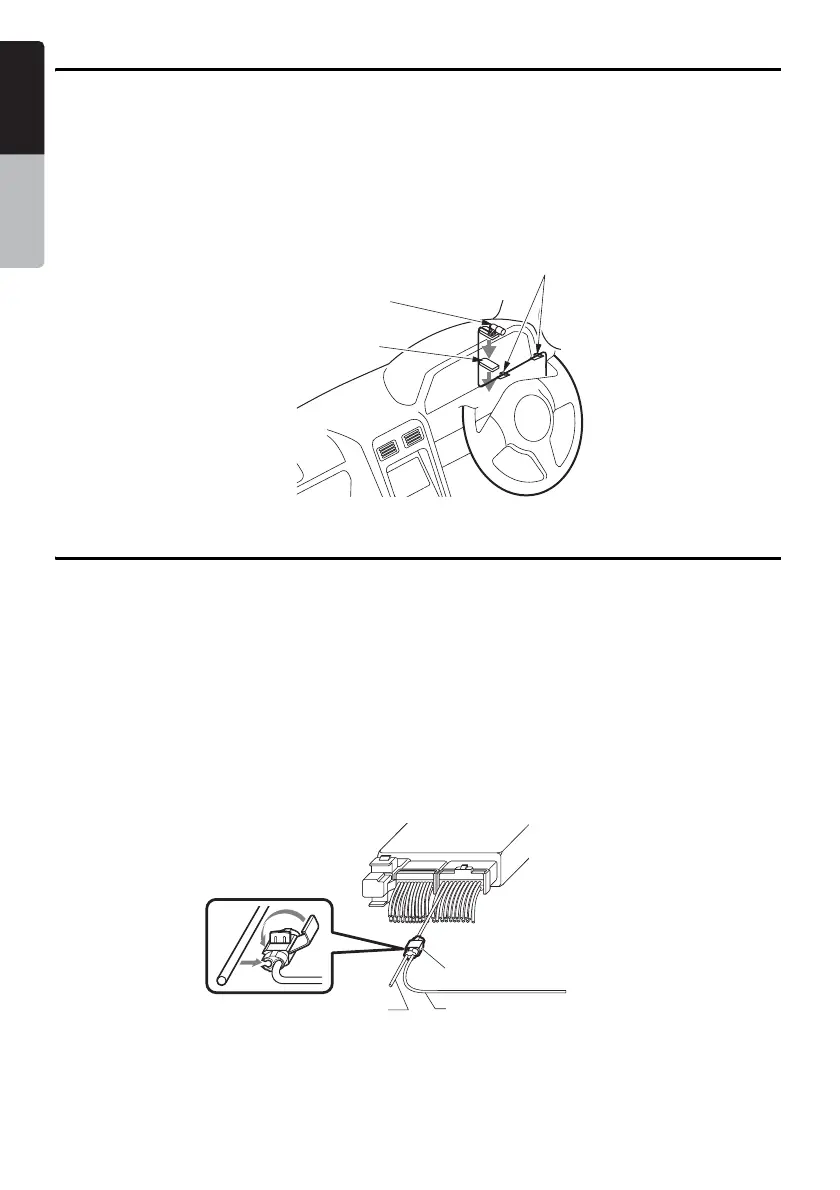

6 Microphone for voice control
6. Lead holders
7. Double-sided tape for microphone
Engine control computer (EC)
EC vehicle speed signal cable
Vehicle speed harness
4. Electro-tap for speed sensor
Speed sensor connection lead
