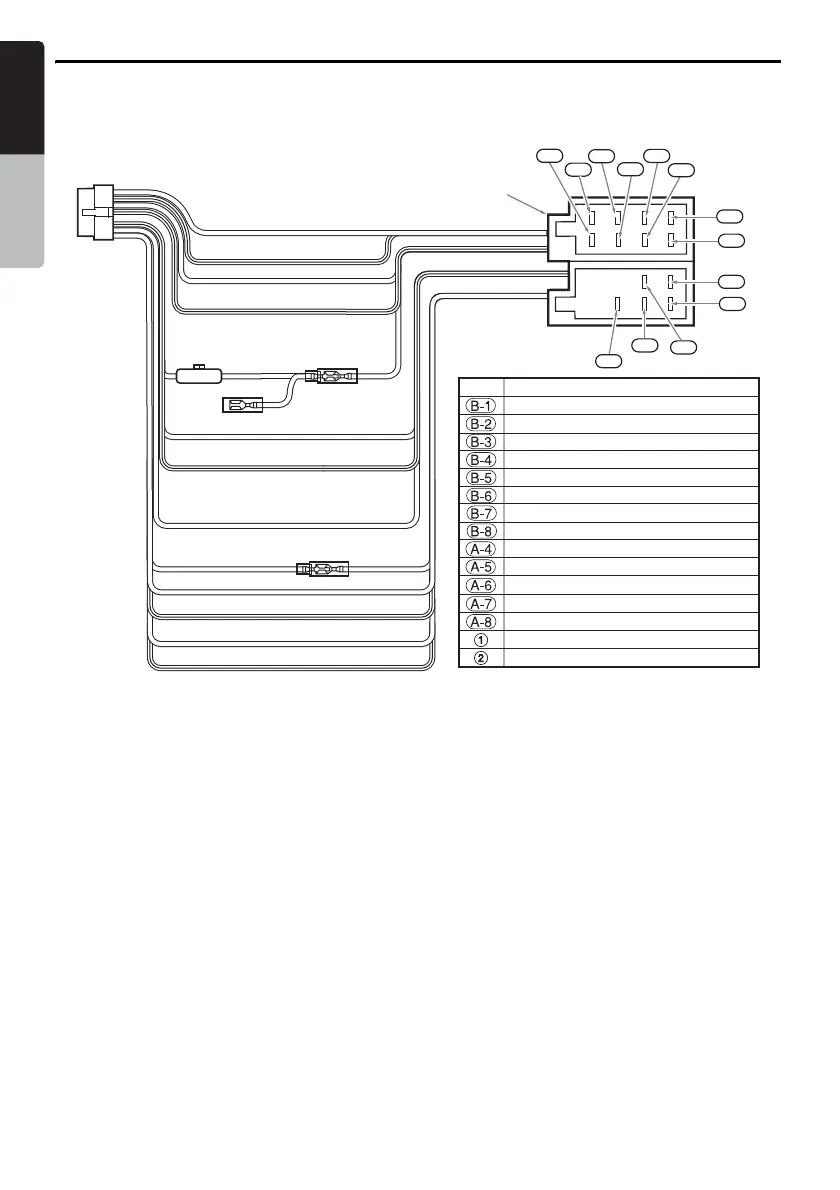

Wire Connection
88
MAX973HD
English
INSTALLATION AND WIRE
CONNECTION MANUAL
Power supply lead
Note:
*1: In certain vehicles - Volkswagen/Opel/Vauxhall - it is necessary to exchange the accessory <Red> and the
main power <Yellow> connection, to avoid overload and loss of memory.
Notes on installing the RDS-TMC antenna
• For vehicles that do not allow radio wave penetration such as heat reflection glass, heat insulation
glass or radio wave interception glass, the receiver sensitivity may decrease. For details, speak to the
dealer where you purchased the unit.
• The receiver sensitivity may weaken by interference from other antennas within the vehicle, therefore
try to install it away from other antennas.
• To prevent noise, wire the antenna cable separately from the power supply lead, speaker leads and
the other cables of the vehicle.
2
B-1
B-6
B-5
B-7
B-8
B-4
B-3
B-2
A-4
A-6
A-8
A-7
1
A-5
∗1
∗1
10A
No. Description
REAR RIGHT+
REAR RIGHT-
FRONT RIGHT+
FRONT RIGHT-
FRONT LEFT+
FRONT LEFT-
REAR LEFT+
REAR LEFT-
+12 V MAIN POWER (
∗1)
TUNER +B
ILLUMINATION
+12 V ACCESSORY (
∗1)
EARTH
ISO CONNECTOR
Spare terminal (Yellow)
To Next Page
