17. HDMI MODE
Wire Connection of HDMI Mode Wire Connection of HDMI Mode
iPhone 4, iPhone 4s, iPhone 5, iPhone 5s, iPhone 5c, iPhone 6 and iPhone 6 Plus can be connected by using the
connector cable supplied with the iPhone 4, iPhone 4s, iPhone 5, iPhone 5s, iPhone 5c, iPhone 6 and iPhone 6 Plus
and HDMI cable (sold in the market) or CCA-802 (sold separately) and digital Av adapter
Note:
The following is part of the wiring example.
Depending on the device, there is a case to connect to the device directly with the CCA-771.
Depending on the adapter or device, there is a case that the audio noise and video noise is generated.

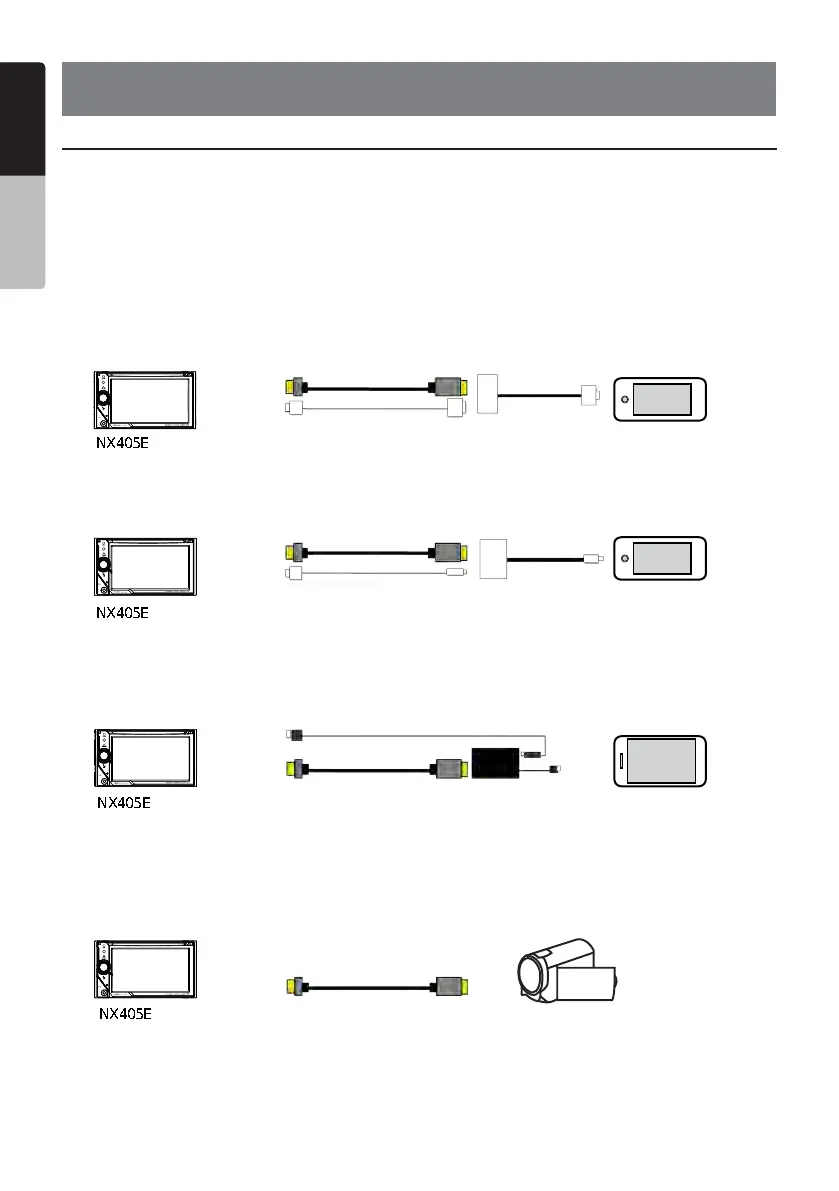

(1) Connection with the iPhone 4 and iPhone 4s
(2) Connection with the iPhone 5, iPhone 5s, iPhone 5c, iPhone 6 and iPhone 6 Plus
(3) Connection with the Android Phone
(4) Connection with the equipment with HDMI output
HDMI cable sold in the market or CCA-802 iPhone 4 and iPhone 4s
HDMI cable sold in the market or CCA-802
iPhone 5, iPhone 5s, iPhone 5c,
iPhone 6 and iPhone 6 Plus
30pin cable
(supplied with iPhone)
30pin-Digital AV adapter
(made by Apple Inc.)
Lightning cable
(supplied with iPhone}
Lightning-Digital AV adapter
(made by Apple Inc.)
Micro USB cable sold in the market
Android phobe
HDMI cable sold in the market or
CCA-802
MHL adaptor sold in
the market
HDMI cable sold in the
market
Electronic devices with HDMI output
To Next Page
