Clarion NX409 User Manual

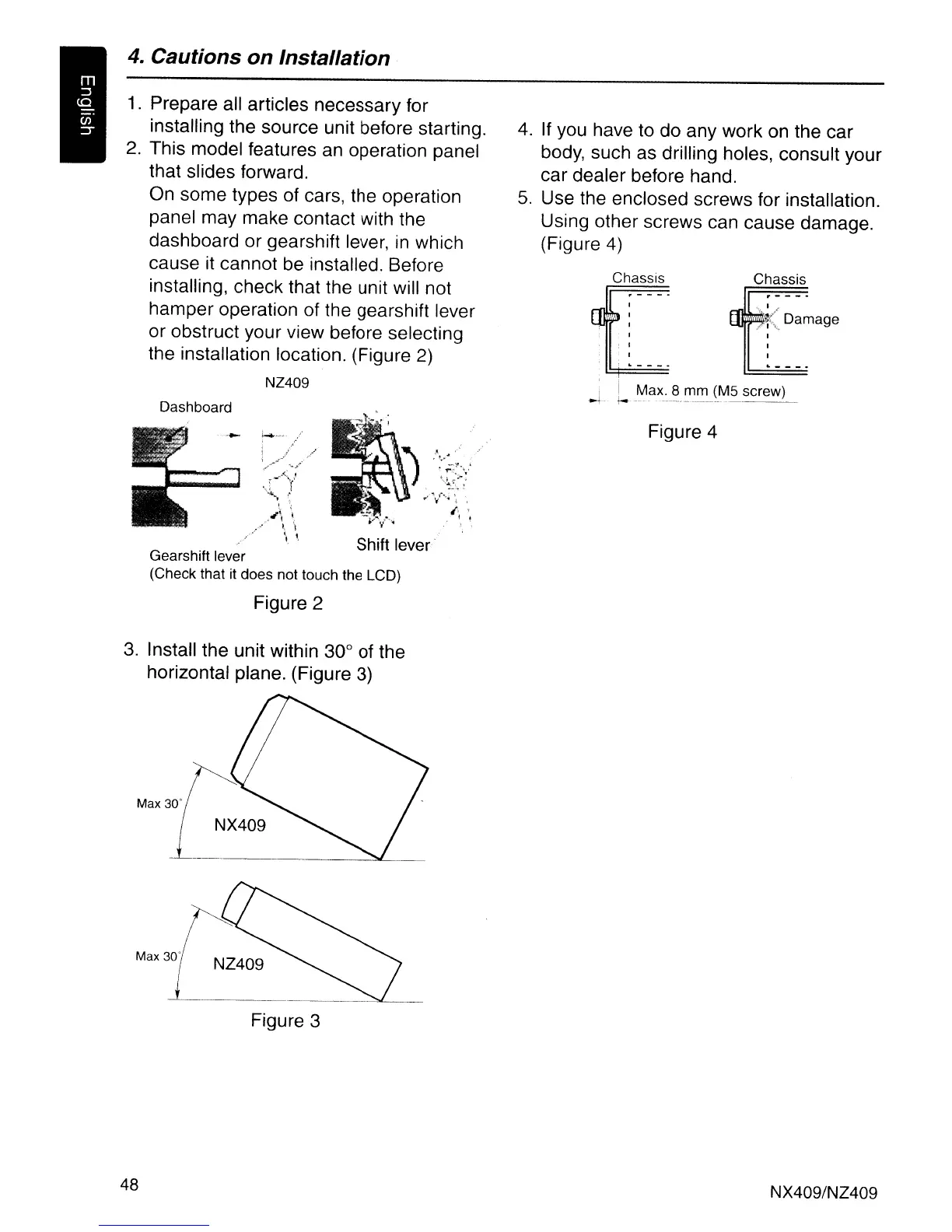

4. Cautions on Installation
1. Prepare all articles necessary for
installing the source unit before starting.
2. This model features an operation panel
that slides forward.
On some types of cars, the operation
panel may make contact with the
dashboard or gearshift lever,
in which
cause it cannot be installed. Before
installing, check that the unit will not
hamper operation of the gearshift lever
or obstruct your view before selecting
the installation location. (Figure
2)
NZ409
"'~_ I J
. ''-, Damage
,
I
I
Chassis
i Max. 8 mm (M5 screw)
.1- !-.---.----- ... -.--.-- ._--
Figure 4
Chassis
f[
I
, '
. ,~ ---.
, ,
4. If you have to do any work on the car
body, such as drilling holes, consult your
car dealer before hand.
5. Use the enclosed screws for installation.
Using other screws can cause damage.
(Figure
4)
Dashboard
Gearshift lever
(Check that it does not touch the LCD)
Figure 2
3. Install the unit within 30° of the
horizontal plane. (Figure
3)
Figure 3
48
NX409/NZ409
