Clarion NX409

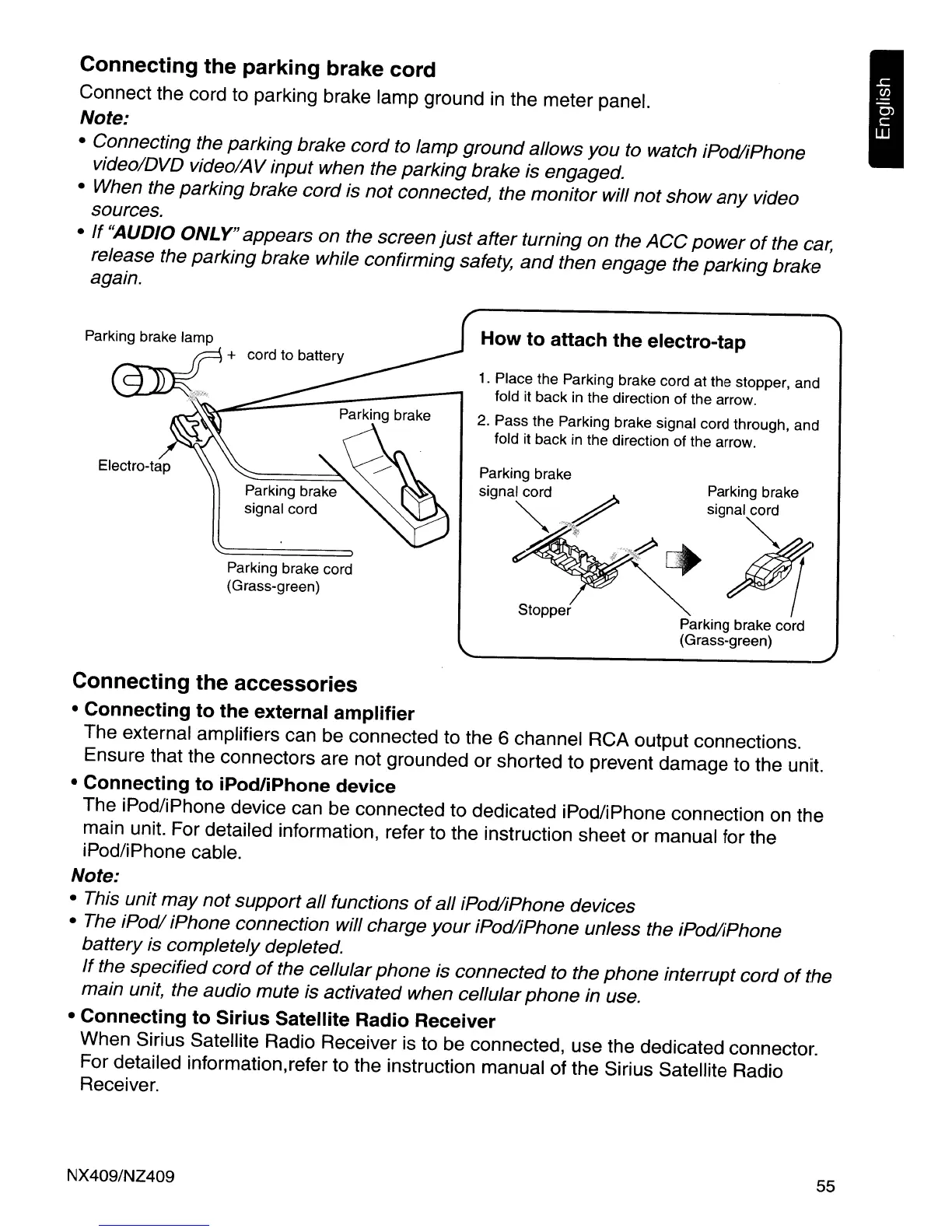

Connecting the parking brake cord
Connect the cord to parking brake lamp ground in the meter panel.
Note:
• Connecting the
parking brake cord to lamp ground allows you to watch iPodliPhone
videolDVD
videol AV input when the parking brake is engaged.
• When the
parking brake cord is not connected, the monitor will not show any video
sources.
•
If "AUDIO ONLY" appears on the screen just after turning on the ACC power of the car,
release the
parking brake while confirming safety, and then engage the parking brake
again.
Parking brake cord
(G rass-green)
Parking brake
signal cord
.... / Parking brake
'" .. signal cord
"'". ~
~. r~~ jfIf
Stopper I
How to attach the electro-tap
1. Place the Parking brake cord at the stopper, and
fold it back in the direction of the arrow.
2. Pass the Parking brake signal cord through, and
fold it back
in the direction of the arrow.
Parking brake cord
(Grass-green)
park@~=la~,m~,:~. t""'+.-=:;:.c::o::::rd:::t::o :ba~tt_e,rYp;~~::_l
Connecting the accessories
• Connecting to the external amplifier
The external amplifiers can be connected to the 6 channel RCA output connections.
Ensure that the connectors are not grounded or shorted to prevent damage to the unit.
• Connecting to iPod/iPhone device
The iPod/iPhone device can be connected to dedicated iPod/iPhone connection on the
main unit. For detailed information, refer to the instruction sheet or manual for the
iPod/iPhone cable.
Note:
• This
unit may not support all functions of all iPodliPhone devices
• The
iPodl iPhone connection will charge your iPodliPhone unless the iPodliPhone
battery is completely depleted.
If the specified cord of the cellular phone is connected to the phone interrupt cord of the
main unit, the audio mute is activated when cellular phone in use.
• Connecting to Sirius Satellite Radio Receiver
When Sirius Satellite Radio Receiver is to be connected, use the dedicated connector.
For detailed information,refer to the instruction manual of the Sirius Satellite Radio
Receiver.
NX409/NZ409
55
