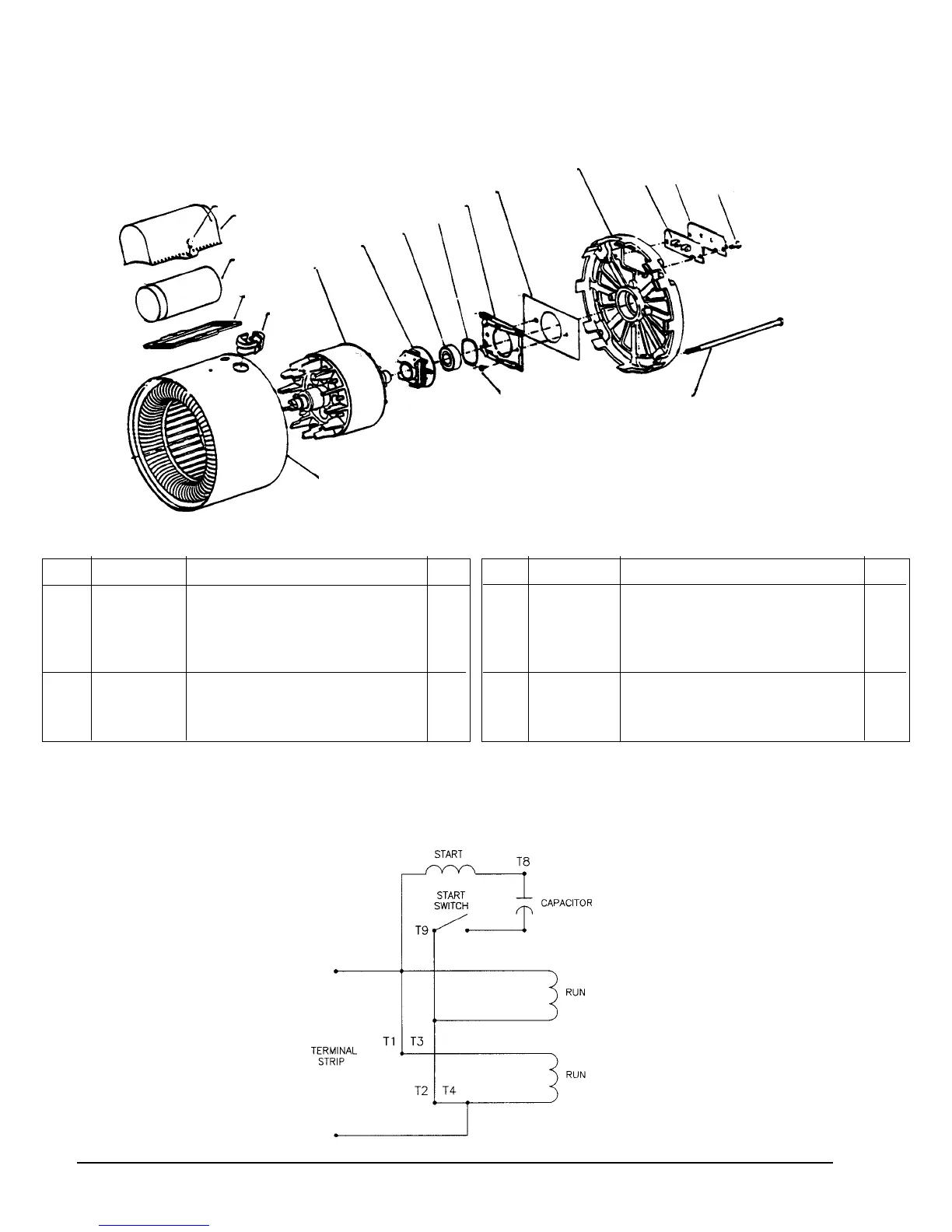

Clarke ALTO C2K Series - Motor Assembly Drawing & Parts List

Page -32 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 120V
CLARKE TECHNOLOGY
C2K-16, C2K-18, C2K-160, C2K-180, C2K-200, C2K-160HS, C2K-180HS and C2K-200HS
120V - 60 Hz Motor Assembly Drawing & Parts List 9/99
Note: If your machine has motor #44635A refer to this
drawing for service part replacement.
Ref. Part No. Description Qty.
1 58030A Screw #10-32 x.31 LG. 2
2 52018A Capacitor Case 1
3 52019A Start Capacitor 1
4 54330A Gasket, Capacitor Case 1
5 737502 Strain Relief 1
6 58028A Stator Frame Asm 1
7 50400A Rotor and Shaft Assembly 1
8 58029A Centrifugal Switch Asm. 1
9 902550 203 Bearing 1
Ref. Part No. Description Qty.
10 58673A Wave Spring Washer 1
11 58032A Stationary Switch 1
12 54713A Stationary Switch Insulation 1
13 53523A Bracket Opp. Shaft End 1
14 58911A Terminal Board Asm. 1
15 58912A Terminal Board 1
16 58034A Screw #10-32 x .31 2
17 50691A Bolt, .250-28 x 6.75 LG 4
18 58031A Screw, #8-32 x .38 LG 2
120V Motor
Electrical Schematic
