Clarke ALTO C2K Series - Motor Assembly Drawing and Parts List

CLARKE TECHNOLOGY Operator's Manual - C2K Series 120V Page - 37 -
Ref Part No. Description Qty.
1 50717A Thru-Bolt 2
2 N/A Commutator Bracket 1
3 56282A Hex Nut 1
4 912287 Rectifier 1
5 962399 Screw 1
6 448396 Spring (Included with #8) (4)
7 51405A Brush Asm., (Included w/#8) (4)
8 40410AK Brush Board Asm. (incl #'s 6,7,16, 18,19) 1
9 962310 Screw 4
10 980608 #8 Flat Washer 1
11 58057A Stator Frame 1
12 902550 Bearing-Upper (Included w/#13) (1)
13 40322A Armature Asm. (Includes #12) 1
14 N/A Strain Relief 1
15 N/A Bushing 1
16 55648A Red Lead (Included with #8) 1
17 980076 Wave Washer 1
18 55647A Yellow Lead (Included with #8) 1
19 59606A Varistor (Included w/#8) (1)
20 46735A Speed Control 1
CLARKE TECHNOLOGY
C2K-1600DS and C2K-2000DS

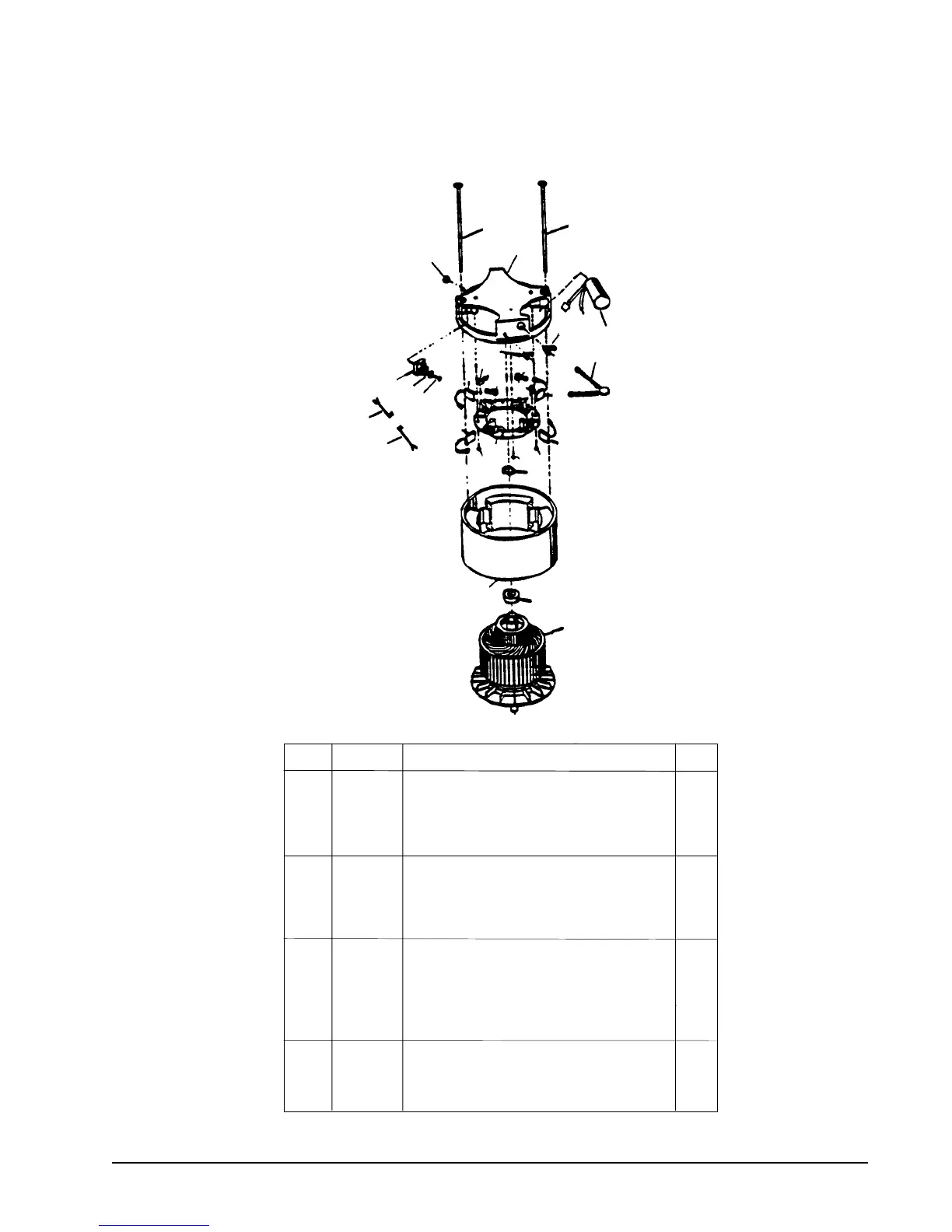

120V Motor Assembly Drawing & Parts List 2/01
NOTE: If your machine has motor/gearbox #44651A, refer to this drawing for service part replacement.
1
3
2
1
4
10
5
20
6
15
19
6
6
6
7
7
9
9
17
8
9
16
18
11
12
13
14
Note: Kindicates a
change has been made
since last publication of
this manual
