CLARKE TECHNOLOGY Operator's Manual - C2K Series 120V Page - 35 -
CLARKE TECHNOLOGY
C2K-1600, C2K-1800, C2K-2000

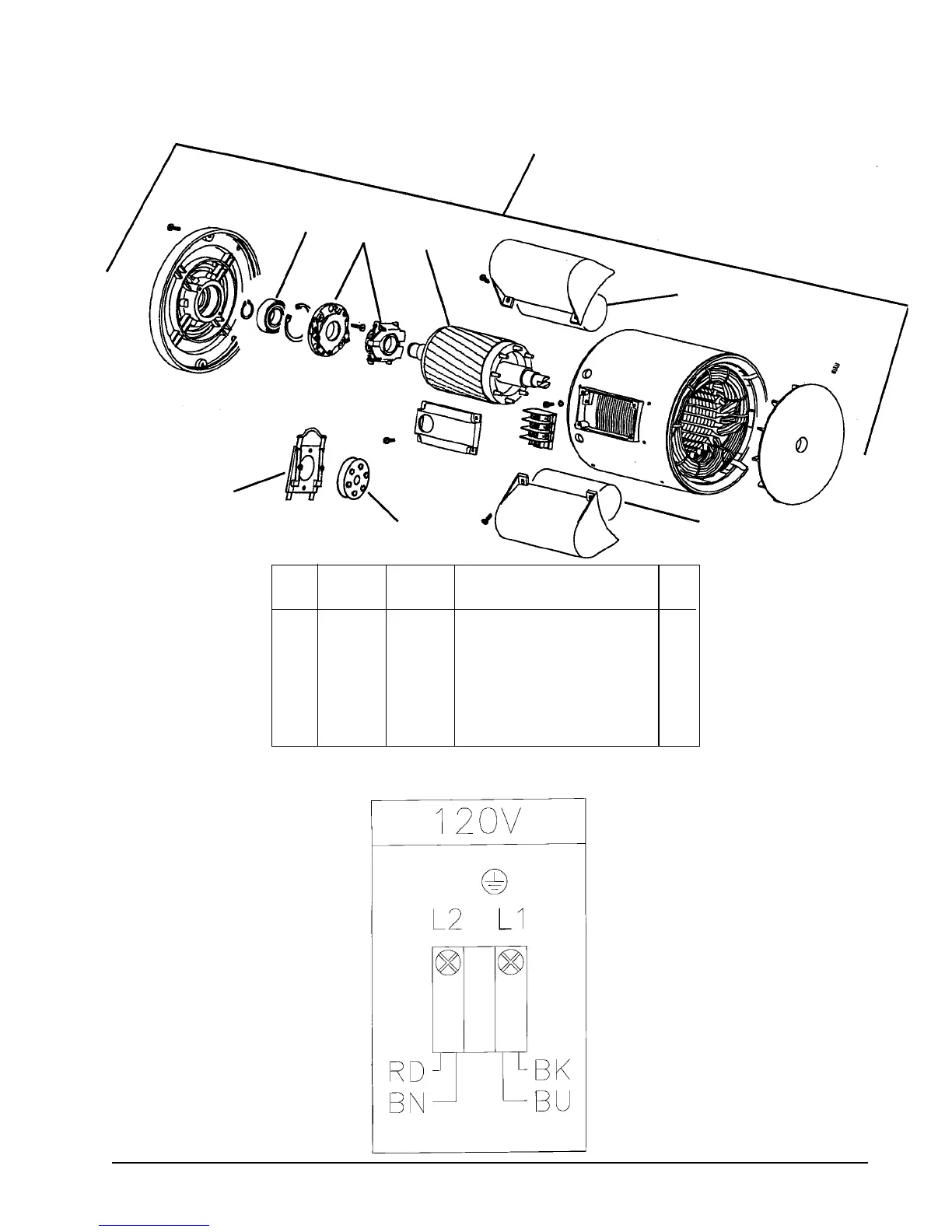

Motor Assembly Drawing & Parts List 9/00
Note: If your machine has motor #50858A or #50858B refer
to this drawing for service part replacements.
50858A 50858B
Ref. Part #'s Part #'s Description Qty
1 50861A 50861A Ball Bearing 1
2 50860A Centrifugal Switch 1
2(a) 51072A Stationary Switch 1
2(b) 51070A Centrifugal Mechanism 1
3 50859A 51073A Rotor 1
4 50862A 50862A Capacitor, Start 1
5 50863A 50863A Capacitor, Run 1
6 50858A 50858B Motor , Complete (1)
120V Motor
Connection Diagram
1
2
3
4
6
5
2a
2b
