Clarke ALTO C2K Series - Gearbox Assembly Drawing & Parts List

Page -34 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 120V
CLARKE TECHNOLOGY
C2K-160HS, C2K 180HS and C2K 200HS

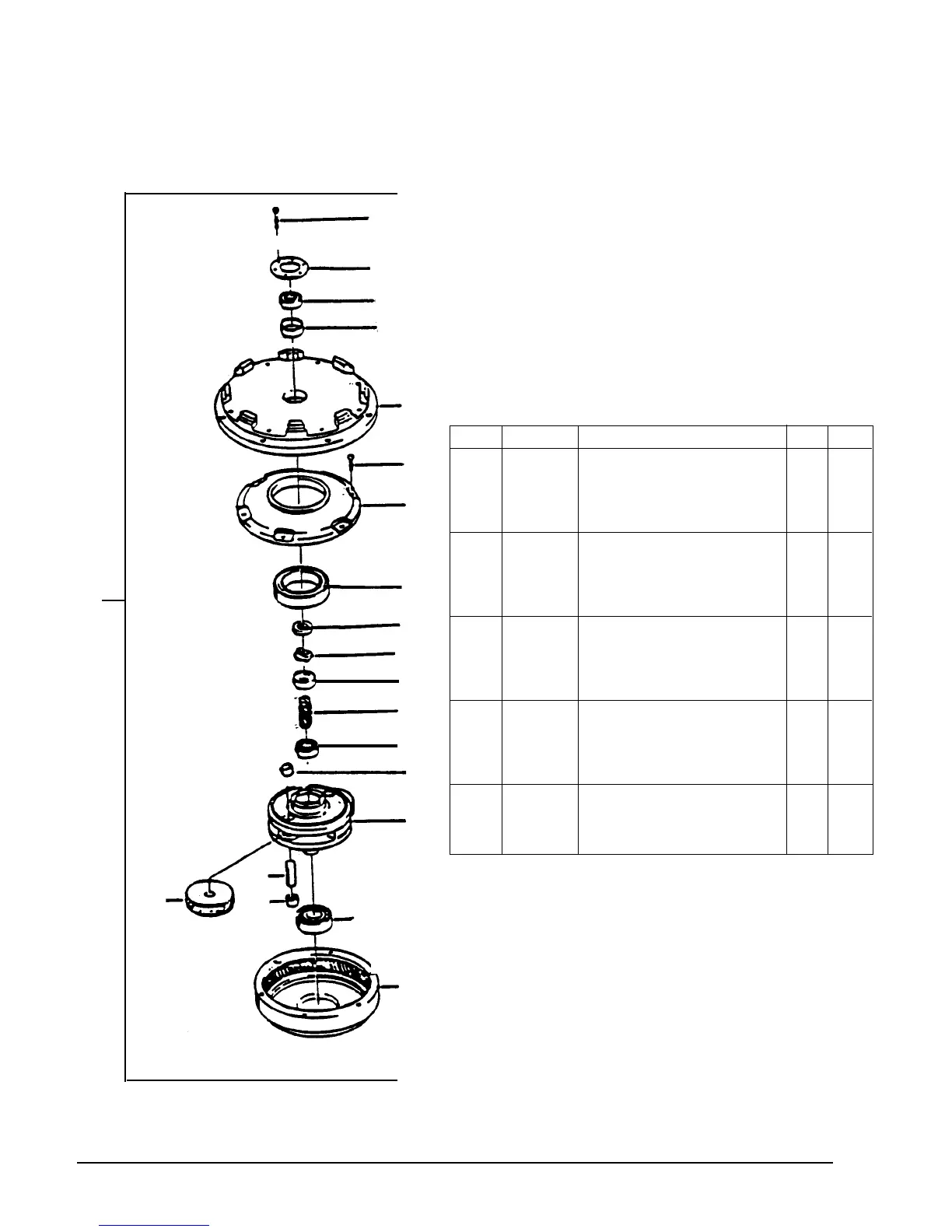

Gearbox Assembly Drawing & Parts List 2/00
Note: If your machine has gearbox #50884A or #52093A refer
to this drawing for service part replacement.
Ref. Part No. Description Qty. Qty.
1 80141AK Screw, Socket Hd. Cap 6 6
2
3 56922A Plate, Retainer 1 1
4 902606 Bearing 1 1
5 58513A Spacer, Sleeve 1 1
6 53524A Endshield 1 1
7 962794 Screw 10-24" x 1" 6 6
8 54858A Cover, Housing 1 1
9 902736 Bearing 1 1
10 58314A Retainer 1 1
11 442473 Coupling 1 1
12 50887A Gear, Pinion 1 -
50854A Gear, Pinion - 1
13 902606 Bearing - 2
14 902737 Bearing, Needle 4 4
15 50886A Cage 1 -
50855A Cage - 1
16 50888A Gear, Idler 2 -
50856A Gear, Idler - 2
17 58312A Shaft 2 2
18 902573 Bearing 1 1
19 50857A Housing, Drive 1 1
20 52093A Gearbox Asm., Complete - (1)
50884A Gearbox Asm., Complete (1) -
1
3
4
5
6
7
8
9
10
11
14
17
14
18
19
20
12
15
16
13
13
50884A 52093A
Note: K indicates a
change has been made
since the last publication
of this manual.
