Clarke ALTO C2K Series - Gearbox Assembly Drawing & Parts List 2;01

CLARKE TECHNOLOGY Operator's Manual - C2K Series 120V Page - 33 -
Ref. Part No. Description Qty.
1 80141A K Screw, Socket Hd. Cap 6
2
3 56922A Plate, Retainer 1
4 902606 Bearing 3
5 58513A Spacer, Sleeve 1
6 53524A Endshield 1
7 962794 Screw 10-24" x 1" 6
8 54858A Cover, Housing 1
9 902736 Bearing 1
10 58314A Retainer 1
11 442473 Coupling 1
12 58313A Gear, Pinion 1
14 902737 Bearing, Needle 6
15 52020A Cage 1
16 54408A Gear, Idler 2
17 58312A Shaft 2
18 902573 Bearing 1
19 54856A Housing, Drive 1
20
21 54409A Gearbox Asm., Complete (1)
CLARKE TECHNOLOGY
C2K-16, C2K-18, C2K-160, C2K-180 and C2K-200

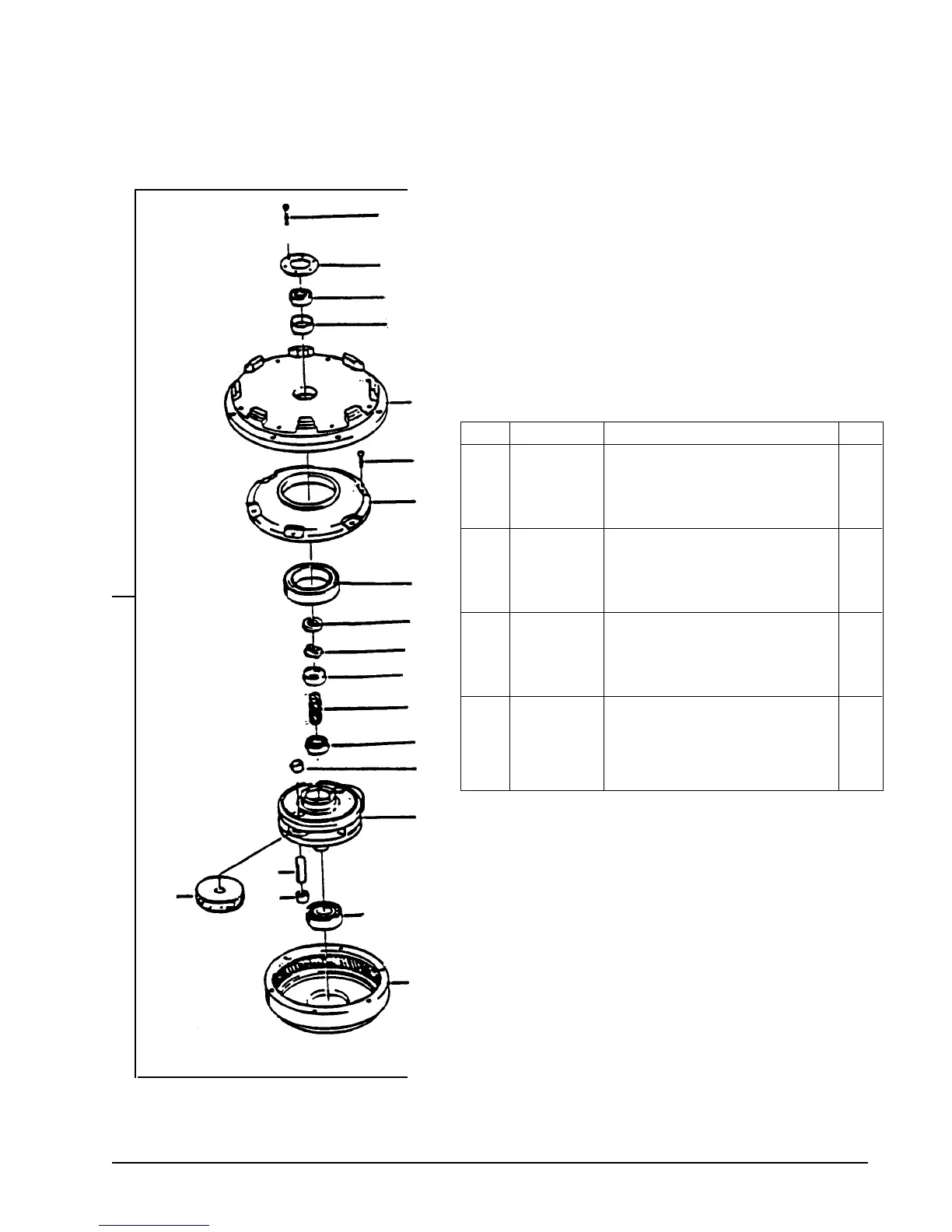

Gearbox Assembly Drawing & Parts List 2/01
Note: If your machine has gearbox #54409A refer to this
drawing for service part replacement.
1
2
3
4
5
6
7
8
9
10
11
4
12
4
14
15
16
17
14
18
19
21
Note: K indicates a
change has been made
since last publication of
this manual
