Page -36 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 120V
CLARKE TECHNOLOGY
C2K-1600, C2K-1800, C2K-2000

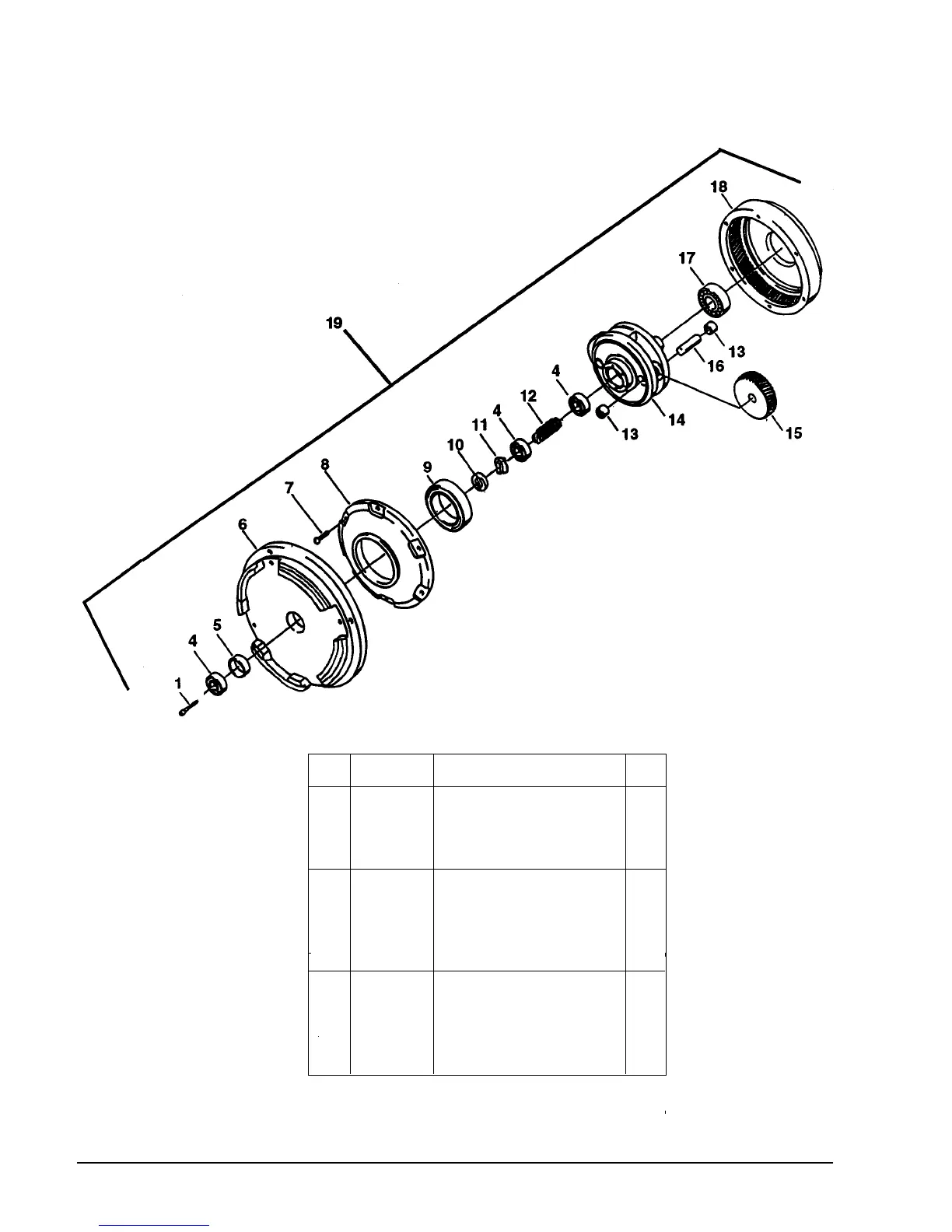

Gearbox Assembly Drawing & Parts List 2/01
NOTE: If your machine has gearbox #50851A, refer to this drawing for service part replacement.
Ref Part No. Description Qty.
1 80141AK Screw, Socket Hd. Cap 6
4 902606 Bearing, Ball 3
5 58520A Spacer, Sleeve 1
6 50852A Endshield 1
7 962794 Screw #10-24 x 1" 6
8 54858A Cover, Housing 1
9 902736 Bearing 1
10 58314A Retainer 1
11 442473 Coupling 1
12 58313A Gear, Pinion 1
13 902737 Bearing, Needle 6
14 N/A Cage 1
15 54408A Gear, Idler 3
16 58312A Shaft 3
17 902573 Bearing, Ball 1
18 54856A Housing, Drive 1
19 50851A Gearbox Asm., Complete (1)
Note: K indicates a
change has been made
since last publication of
this manual
