CLARKE TECHNOLOGY
C2K-1600DS and C2K-2000DS

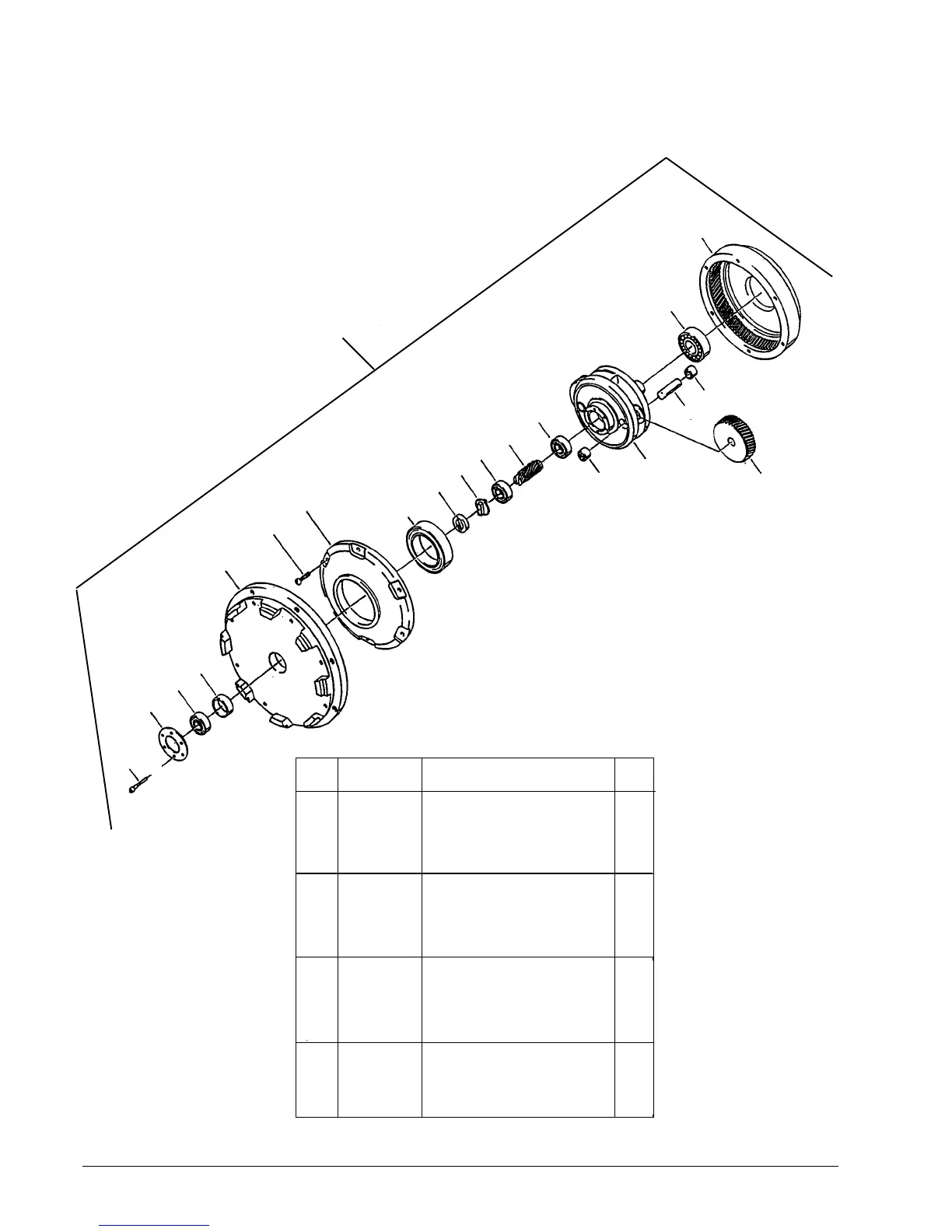

Gearbox Assembly Drawing & Parts List 2/01
NOTE: If your machine has gearbox #63602A, refer to this drawing for service part replacement.
Ref Part No. Description Qty.
1 80141AK Screw, Socket Hd. Cap 6
2
3 56922A Retainer, Bearing 1
4 902606 Bearing, Ball 3
5 58520A Spacer, Sleeve 1
6 53539A Endshield 1
7 962794 Screw 10-24" x 1" 6
8 54858A Cover, Housing 1
9 902736 Bearing 1
10 58314A Retainer 1
11 442473 Coupling 1
12 58313A Gear, Pinion 1
13 902737 Bearing, Needle 6
14 N/A Cage 1
15 54408A Gear, Idler 3
16 58312A Shaft 3
17 902573 Bearing, Ball 1
18 54856A Housing, Drive 1
19 63602A Gearbox Asm., Complete (1)
18
17
13
16
15
14
13
4
12
4
11
10
9
8
7
6
5
4
3
1
19
Page -38 - CLARKE TECHNOLOGY Operator's Manual - C2K Series 120V
Note: K indicates a
change has taken place
since last publication of
this manual
