Classeq Under Counter Range - User Manual
14
• Ensure the rubber seals are in place in the connectors.
• Hand tightens the connectors only.
• Ensure all connections are watertight before using your
warewasher.

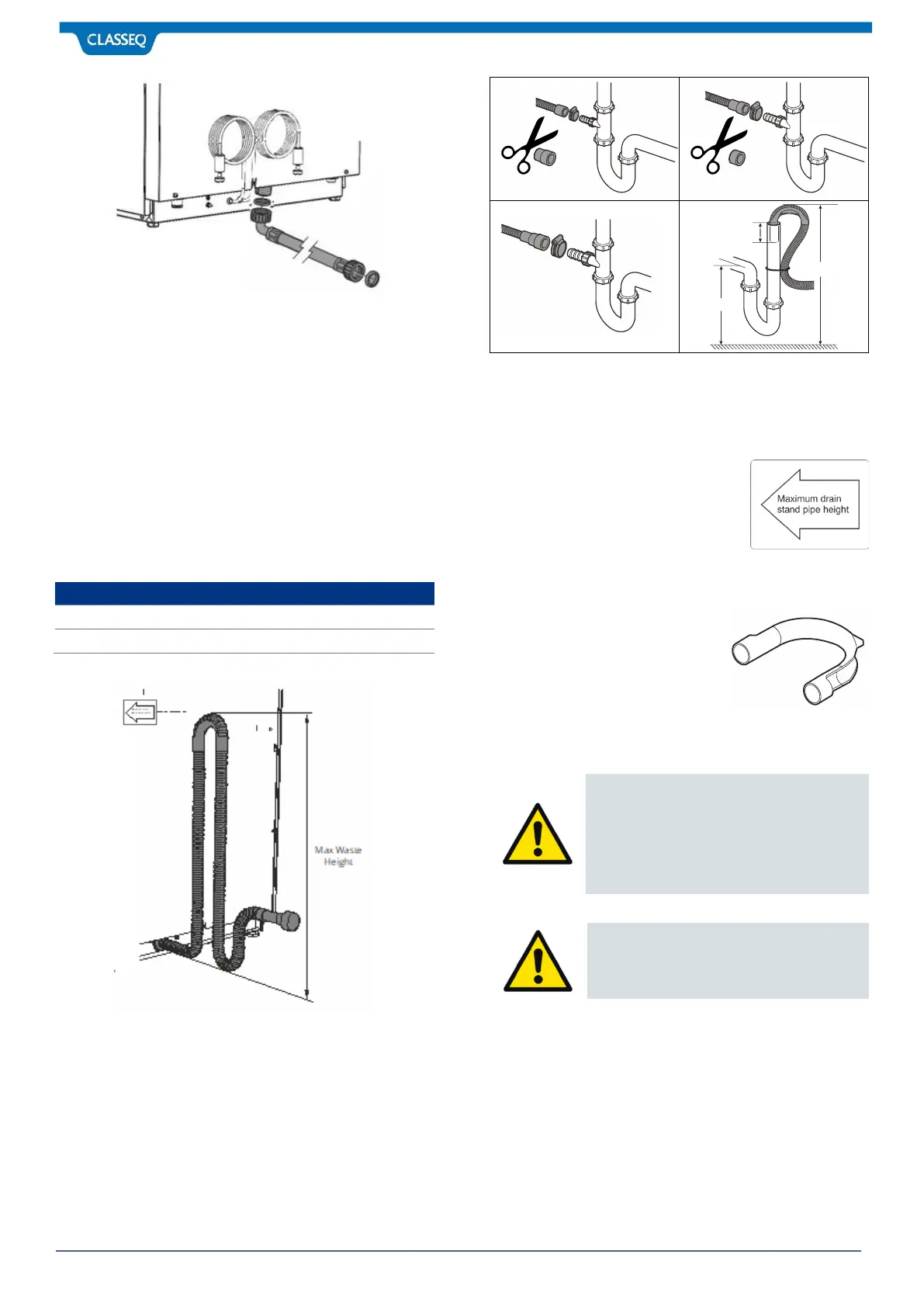

4.6 Wastewater and Connection
Pumped drain warewashers:
The outlet end of the waste hose of a pumped drain type
warewasher can be trimmed to fit a variety of sizes of pipes /
spigots.
The waste plumbing for this type of warewasher can be up to a
maximum of the following heights from the base of the
warewasher:
Fit the waste hose of your warewasher to the existing waste
piping. Ensure that the waste hose is not kinked. Ensure that the
waste hose is fitted in such a way that it will not come off or out
of the existing waste piping during warewasher operation.
The wastewater from your warewasher must be disposed of
down the foul drains system, i.e. the drains from sinks and WCs.
The wastewater from your warewasher must not be connected
to the surface water drainage system.
A form of back flow prevention must be
installed into the wastewater plumbing in
accordance with local and national
regulations.
Ensure that no part of the waste hose
from the warewasher is higher than the
mark on the rear of the warewasher (shown), when the
warewasher is in place.
Where the warewasher is fitted to a
standpipe, the Waste Hose Hook
should be used to help manage the
hose.
4.7 Attaching Chemical
Bottles
Warning!
Wear the correct Personal Protective
Equipment, e.g., gloves and goggles, when
handling chemicals and observe all safety
notes and dosing recommendations printed
on the packaging.
Caution
Only use commercial grade detergents and
rinse aids within your warewasher.
The chemical bottles should be placed in a safe, stable location
that is close to the warewasher and easily accessible to check the
levels and replace the bottles as needed.
A coil of PVC tubing is connected to each of the chemical pumps
inside the warewasher.
These tubes exit the rear of the warewasher and should be
routed to the chemical bottle locations. The tubes need to be
long enough to allow the bottles to be moved without the risk of
falling over. Excess tubing may be cut off.
540mm - 600cm
Min 120mm
Min 300mm
