6. Operation
Before operating the warewasher, ensure that the mains
electrical and water supplies are turned on.
Children must be supervised to ensure that they do not play with,
or operate, the warewasher.

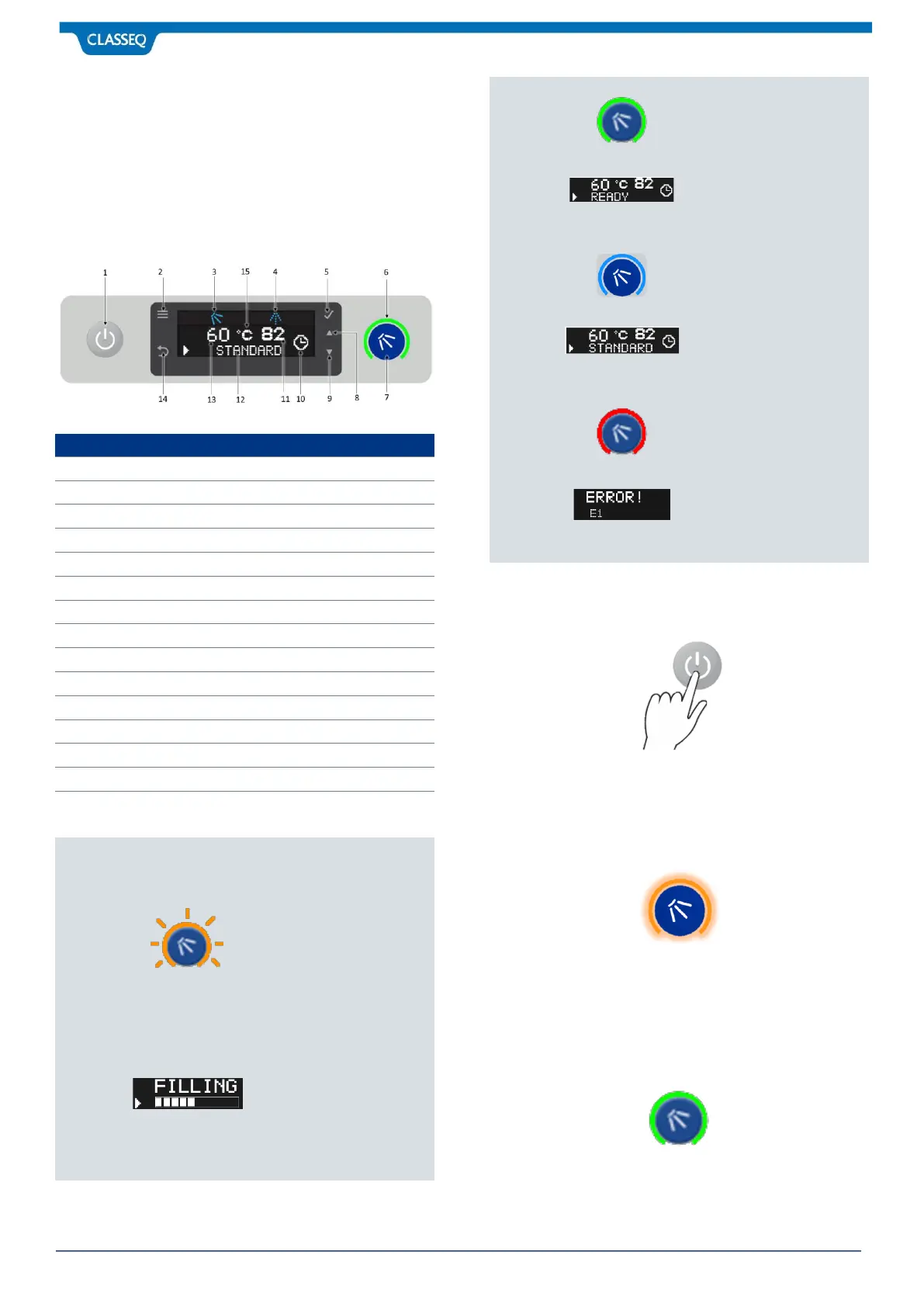

6.1 Operation Interface
Item
Description
1
On/Off button
2
Menu button
3
Wash CYCLE display
4
Rinse CYCLE display
5
Select button
6
LED indicator
7
Cycle button
8
UP selection button
9
DOWN selection button
10
Program display
11
Rinse Temperature
12
Stage display
13
Wash Temperature
14
Return button
15
Temperature Unit
Notes:
1. LED indicator (6) and Stage Display (12):
FLASHING AMBER LED
Indicator (6) - warewasher
not ready (Wash Tank not
full / Rinse Tank not full /
Wash Tank still heating /
Rinse Tank still heating).
Stage Display (12) – will
show progress of the
filling and heating stage.
Note that Tank full
interlocks always apply.
Operating temperature
interlocks can be altered
as required (►5.2.3).
GREEN LED indicator (6)
means warewasher is
ready to start the cycle.
Stage display (12) to
display ready information.
Blue LED indicator (6)
means warewasher is in
cycle.
Stage display (12) to
display wash programme
selected information.
RED LED indicator (6)
means a serious error
condition has occurred.
Stage display (12) to
inform Error number.
Please refer section () for
more details.
6.2 Turning on the Warewasher
To turn on the warewasher, ensure the door is closed and press
the On/Off button (1) on the Control Panel. The display will
illuminate and the warewasher will start to fill if the door is
closed.
6.3 Warewasher Ready to Operate
The warewasher operates a pulse fill function, this means that it
will fill the Rinse Tank, heat this to a pre-set temperature (60ºC)
then transfer this water to the Wash Tank. During the fill stage
the LED indicator (6) will flash amber.
Once the Wash Tank is filled the LED indicator will illuminate
green to indicate the warewasher is ready to run a cycle.
The time required for the warewasher to fill, and heat will vary
depending on the power rating of the warewasher, as stated on
the rating label (►2.3), and the incoming water temperature.
