Front & Left Views - Models B/D 1 - 15

Quick Start Guide

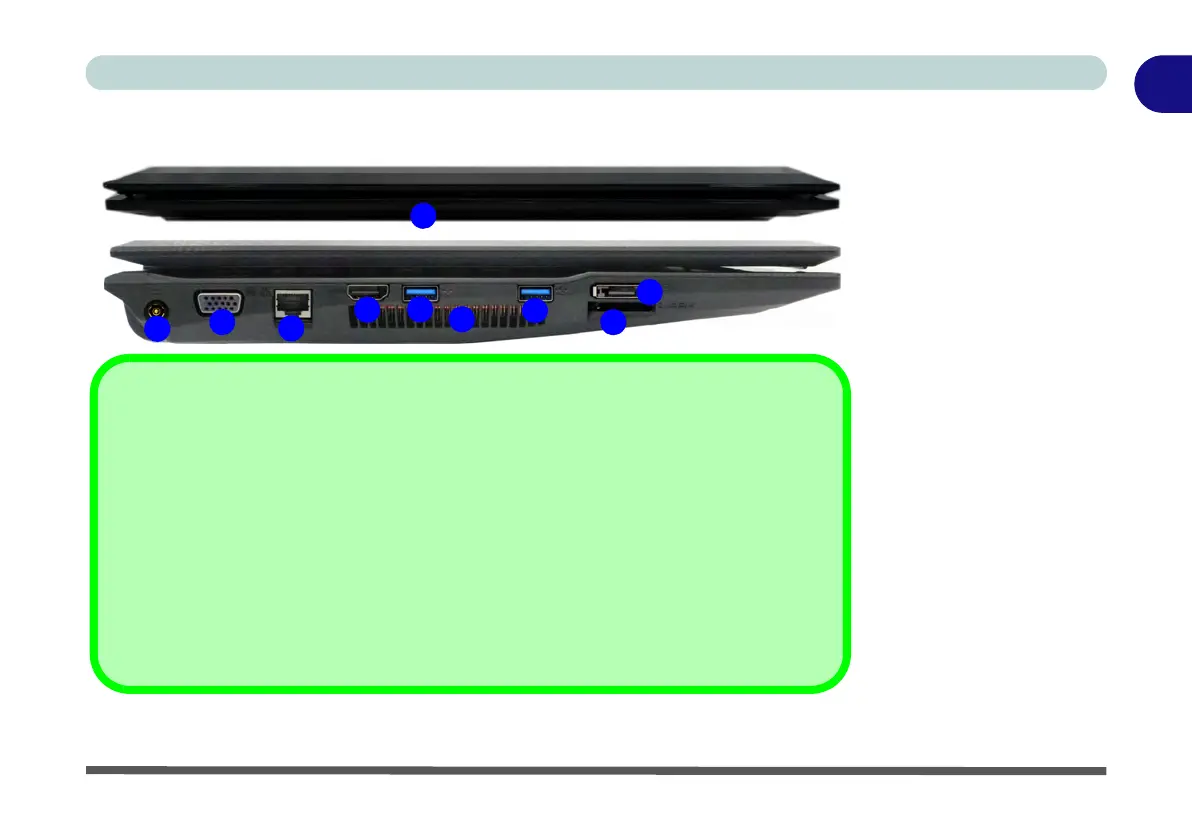

Front & Left Views - Models B/D

Figure 1 - 8

Front & Left Views

Models B/D

1. LED Power Indica-

tors (see

Table 1 -

2, on page 1 - 9)

2. DC-In Jack

3. External Monitor

Port

4. RJ-45 LAN Jack

5. HDMI-Out Port

6. 2 * USB 3.0 Ports

7. Vent/Fan Intake

8. e-SATA Port

9. Multi-In-1 Card

Reader



Multi-In-1 Card Reader

The card reader allows you to use the most popular digital storage card formats:

MMC (MultiMedia Card) / RS MMC

SD (Secure Digital) / Mini SD / SDHC / SDXC

MS (Memory Stick) / MS Pro / MS Duo

USB 3.0 Port OR USB 2.0 Port

USB 3.0 ports are denoted by their blue color; USB 2.0 ports are colored black. Note that

the USB 3.0 port requires a driver installation (see “USB 3.0 (Win 7 Only)” on page 4 -

7) for Windows 7 (no driver is required for Windows 8) and is not operational under DOS.
