SCALE 1 : 1
6
Installation Instructions

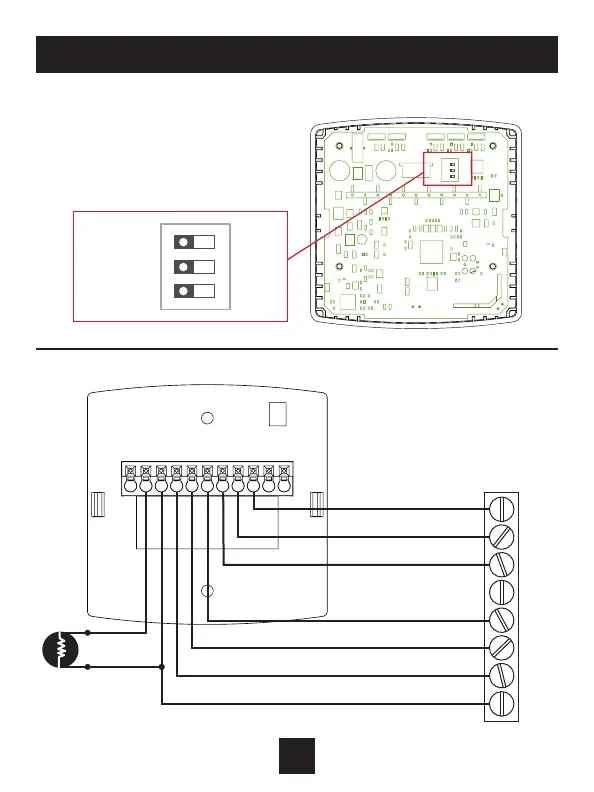

2 Stage Heat, 2 Stage Cool with wired remote sensor
(gas/elec)
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
1
GAS
O
GAS/EL
ELEC
B
HP
ON
23
Dip Switch Settings
C
Y2
W1
O
W2
Y1
G
R
Thermostat
HVAC
Equipment
10KNTC
Remote
Sensor
(optional)
D / H
RS
R
G
Y1
W
O
Y2
C
CK1
