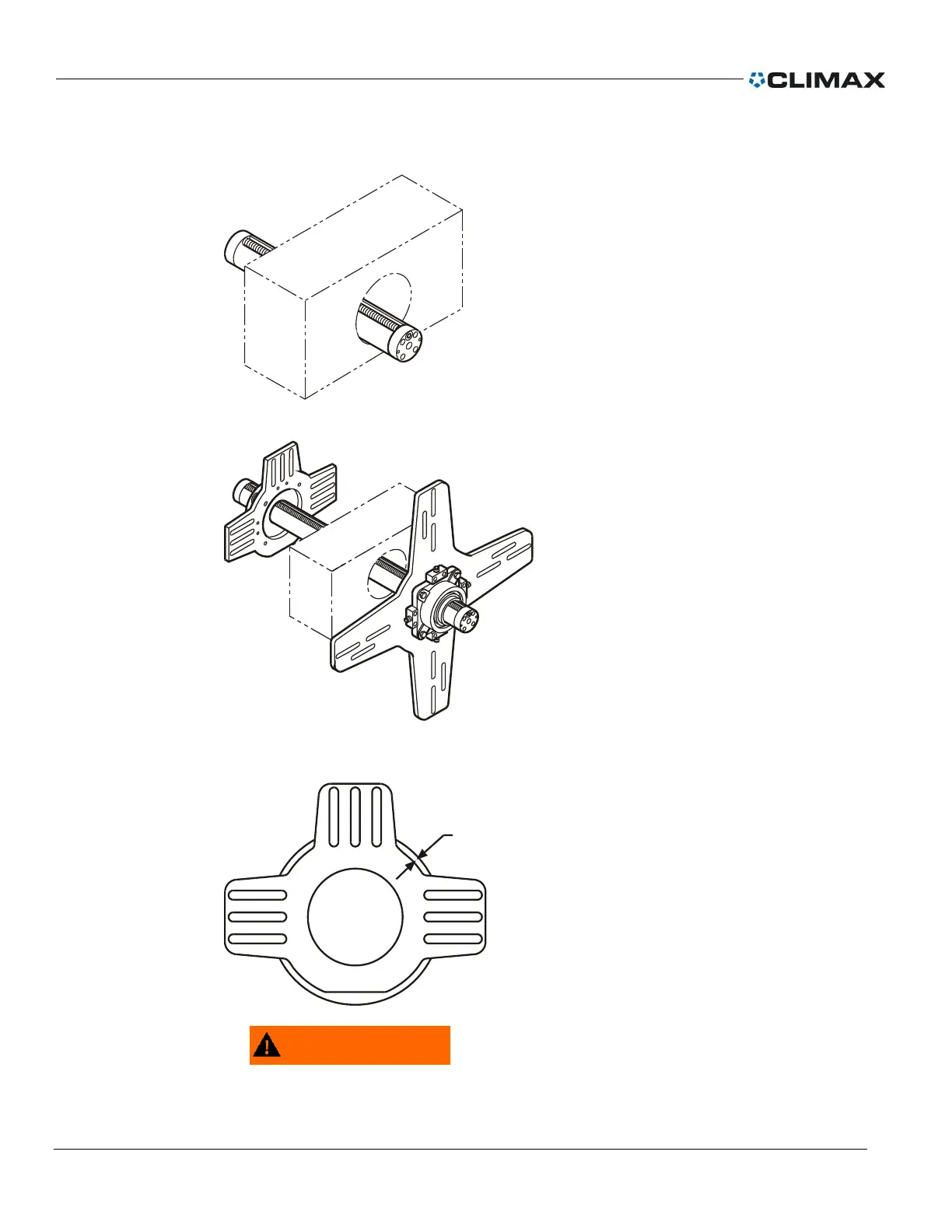

3. Slide the boring bar into the workpiece.
4. Slide the bearing supports onto the ends of the bar.
5. Using a hoist, hold the bar and bearings in the approximate center of the bore.
Alignment within 1/8" (3 mm) is sufficient.
WARNING
Uncontrolled swinging or falling machinery can cause serious
injury. Securely wrap the hoist around the bar and/or bearings
before lifting the machine.
