Page 20 BB6100 Operating Manual
TABLE 3. ID-MOUNT BEARING COMPONENT FIGURE IDENTIFICATION
ID-Mount Bearing Assembly Bore Diameter Table
Bore Range
Inch (mm)
Components
required
12.0 - 14.53 (304.8 - 369.1)
1,3,4
14.53 - 16.53 (369.1 - 419.9)
2, 3, 6, 4
16.53 - 18.53 (419.9 - 470.7)
2, 3, 5, 6
18.53 - 20.53 (470.7 - 521.5)
2, 3, 4, 7
20.53 - 22.53 (521.5 - 572.3)
2, 3, 5, 7
22.53 - 24.53 (572.3 - 623.1)
2, 3, 5, 7, 10
24.53 - 27.53 (623.1 - 699.3)
2, 3, 4, 8
27.53 - 29.53 (699.3 - 750.1)
2, 3, 5, 8
29.53 - 31.53 (750.1 - 800.9)
2, 3, 5, 8, 10
31.53 - 33.53 (800.9 - 851.7)
2, 3, 4, 9
33.53 - 35.53 (851.7 - 902.5
2, 3, 5, 9
35.53 - 37.53 (902.5 - 953.3)
2, 3, 5, 9, 10
Number
Component
1
Plate check
2
Chuck body
3
Modified bearing
4
Short jacking bolt
5
Long jacking bolt
6
3.5" (90 mm) jaw
7
5.5" (140 mm) jaw
8
7.5" (190 mm) jaw
9
9.5" (240 mm) jaw
10
1" (25 mm) spacer

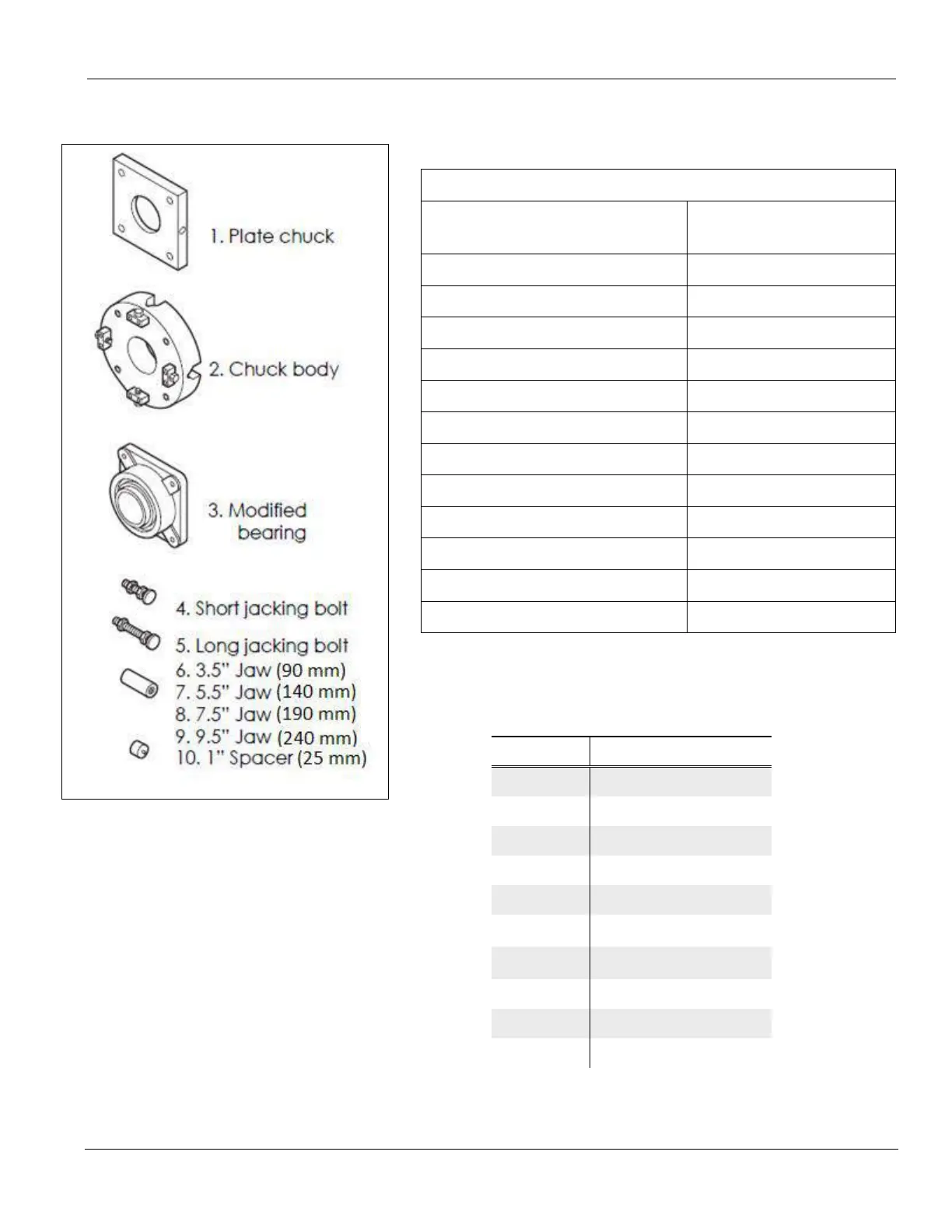

FIGURE 2. ID-MOUNT BEARING COMPONENT
