P/N: 57017, Rev. 3 Page 21
If using the small plate chuck, do the following before moving on to step 5:
a. Screw short or long jacking bolts into the sides of the plate chuck.

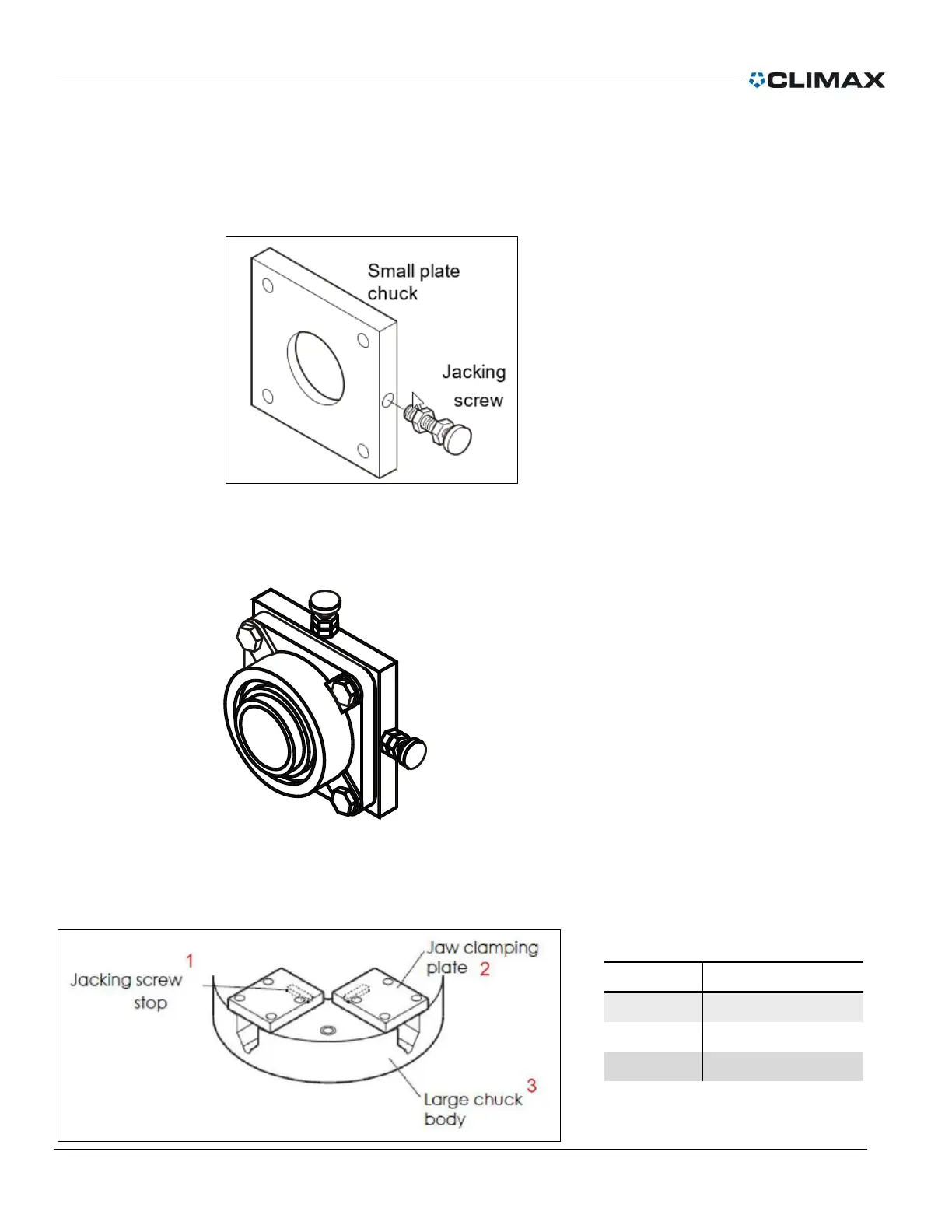

FIGURE 3. SMALL PLATE CHUCK (LEFT) AND JACKING SCREW (RIGHT)
b. Loosely mount the bearing to the plate using the spring washers, flat washers, and screws (if
necessary).
If using the large chuck body, do the following before moving on to step 5:
a. Loosely mount the jaw clamping plates to the chuck body. Check that the stop plates on the
end of the clamping plates face toward the center of the chuck and toward the leg slot.
