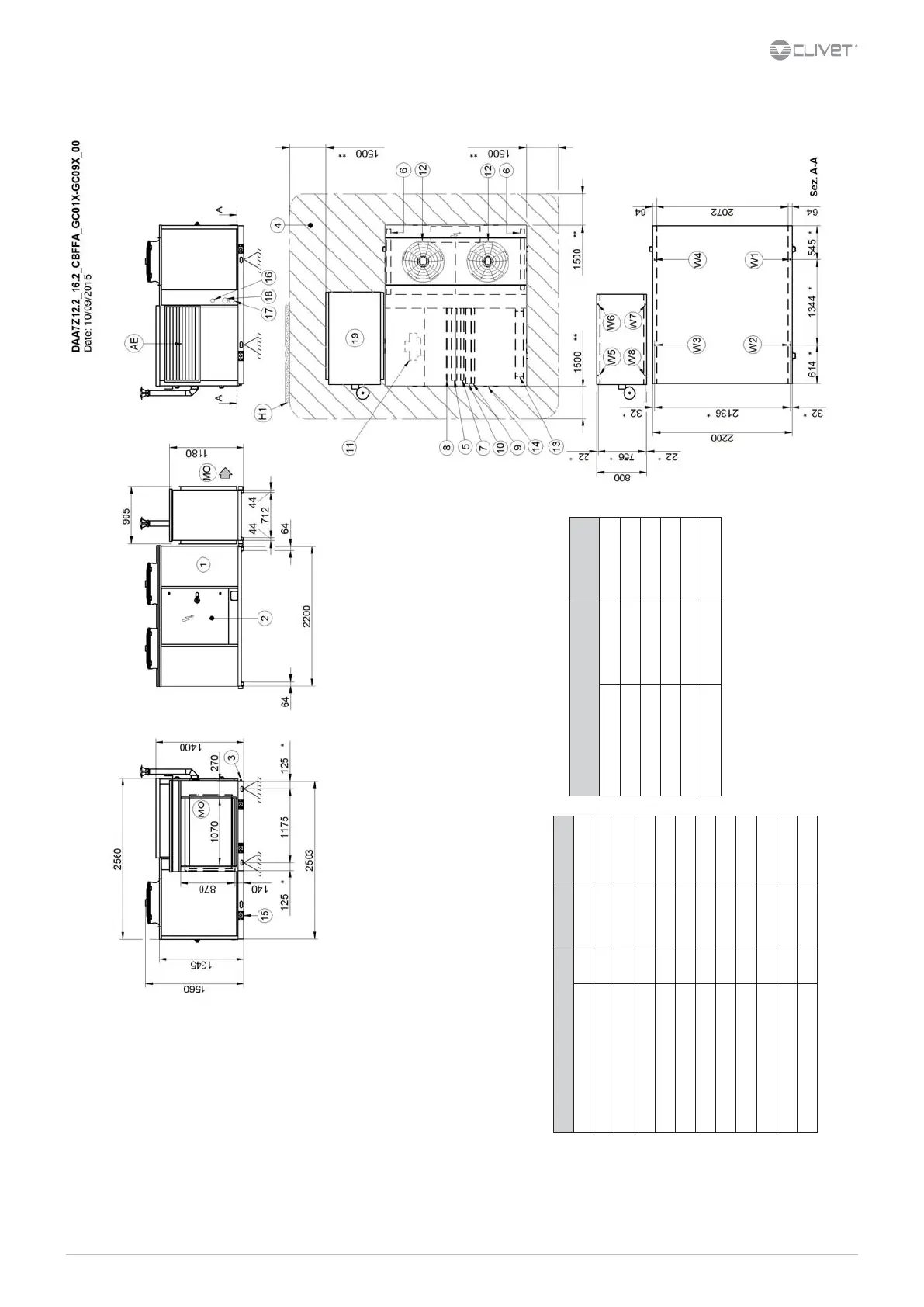

Size 12.2 - 16.2 Combustion module - CBFFA conguration
1. Compressor compartment
2. Electrical panel
3. Condensate drain
4. Functional spaces
5. Internal exchanger
6. External exchanger
7. H2O heating coil / Electric heaters (Otional)
8. Reheat coil (Optional)
9. G4 air lters (Standard)
10. F7 lters / H10 electronic lters (Optional)
11. Electric fan (Supply)
12. External electric fan
13. Fresh air damper
14. Access for coil - lter - heater inspection
15. Lifting brackets (removable)
16. Humidier connections
17. H2O heating coil input Ø 3/4”
18. H2O heating coil output Ø 3/4”
19. Gas module
(M0) Horizontal air supply
(AE) Fresh air inlet
(H1) Wall with same height as unit on a maximum of three sides
(*) Anti-vibration mount position
(**) Suggested minimum clearance
Size 12.2 16.2
A - Operating length mm 2560 2560
B - Operating depth mm 2300 2300
C - Operating height mm 1650 1650
Shipping length mm 2560 2560
Shipping depth mm 2300 2300
Shipping height mm 1650 1650
W1 Supporting point kg 350 360
W2 Supporting point kg 266 268
W3 Supporting point kg 289 291
W4 Supporting point kg 368 378
Operating weight kg 1273 1297
Shipping weight kg 1273 1297
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
GAS MODULE WEIGHT DISTRIBUTION
Size 12.2 - 16.2
W5 Supporting point kg 70
W6 Supporting point kg 58
W7 Supporting point kg 58
W8 Supporting point kg 70
Operating weight kg 256
Shipping weight kg 256
