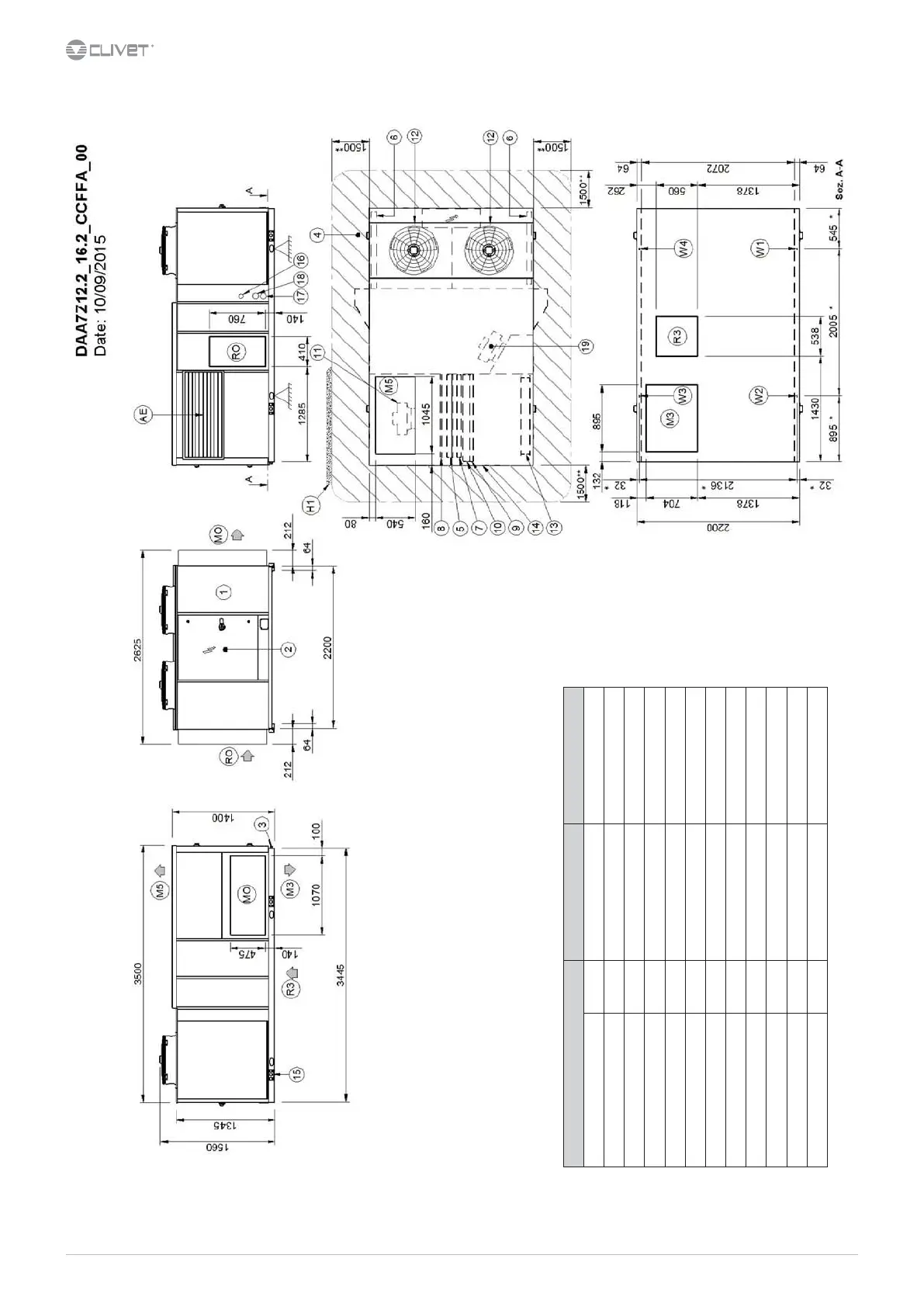

Size 12.2 - 16.2 - CCFFA conguration
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
Size 12.2 16.2
A - Operating length mm 3500 3500
B - Operating depth mm 2625 2625
C - Operating height mm 1650 1650
Shipping length mm 3500 3500
Shipping depth mm 2300 2300
Shipping height mm 1650 1650
W1 Supporting point kg 386 396
W2 Supporting point kg 290 292
W3 Supporting point kg 319 321
W4 Supporting point kg 406 416
Operating weight kg 1401 1425
Shipping weight kg 1401 1425
1. Compressor compartment
2. Electrical panel
3. Condensate drain
4. Functional spaces
5. Internal exchanger
6. External exchanger
7. H2O heating coil / Electric heaters (Otional)
8. Reheat coil (Optional)
9. G4 air lters (Standard)
10. F7 lters / H10 electronic lters (Optional)
11. Electric fan (Supply)
12. External electric fan
13. Fresh air damper
14. Access for coil - lter - heater inspection
15. Lifting brackets (removable)
16. Humidier connections
17. H2O heating coil input Ø 3/4”
18. H2O heating coil output Ø 3/4”
19. Exhaust electric fan
(R0) Horizontal return
(R3) Downow return
(M0) Horizontal air supply
(M3) Downow air supply (Optional)
(M5) Upow air supply (Optional)
(AE) Fresh air inlet
(H1) Wall with same height as unit on a maximum of three sides
(*) Anti-vibration mount position
(**) Suggested minimum clearance
