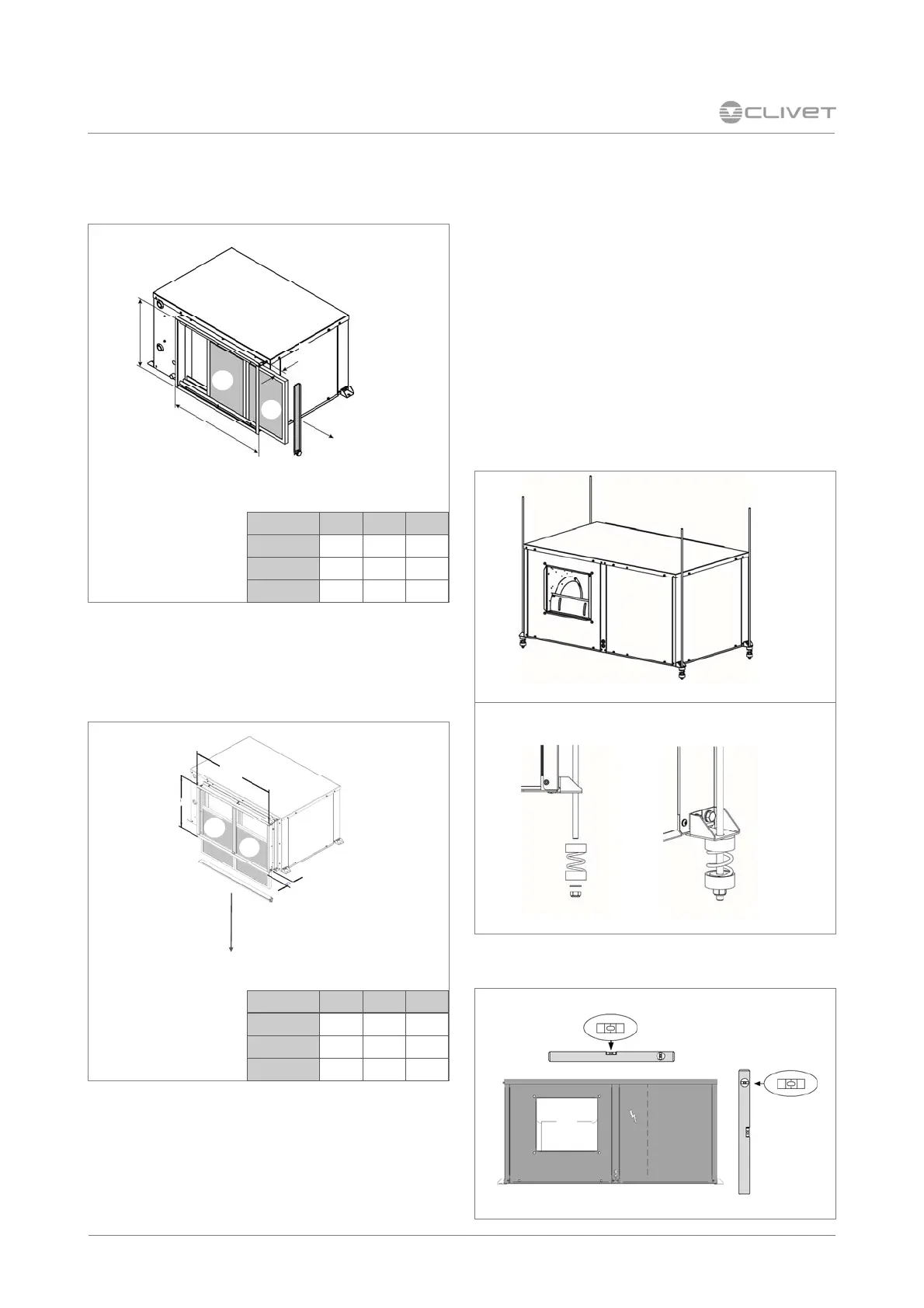

CLIVET EVH-X SPACE 2.1 - Ceiling Positioning; Extracting the Filter from Underneath - Option; Extracting the Side Filter - Standard; Unit in Bubble Level

12
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03
Ceiling positioning
1 Fix some M10 threaded bars (not supplied) to
the ceiling.
2 Pass the M10 threaded bars in the brackets on
the unit.
3 Insert the threaded rod inside the anti-vibration
mount.
4 The antibration device must be positioned with
the interior threaded downward
5 Insert the flat washer and screw the nut to lock.
 Avoid to over tighten the nuts, the springs,
because if too much crushed they don’t absorb
vibrations.
Size A B C
2.1-3.1 625 460 100
5.1-7.1 845 560 100
10.1-12.1 1085 650 100
Size A B C
2.1-3.1 625 460 100
5.1-7.1 845 560 100
10.1-12.1 1085 650 100
A
C
B
D
Extracting the side filter - standard
Extracting the filter from underneath -
option
4 POSITIONING
1
2
A
C
B
D
1
2
Unit in bubble level
