EVH-X SPACE 2.1 - 12.1
M0SM10N17-03
5 WATER CONNECTIONS
• Condensate drain pump
• Pump support bracket
Water connections
Warning
Kit composition
 Assemble and perform the hydraulic connections first, then the electrical connections.
 If in doubt, refer to the component manufacturer’s instructions.

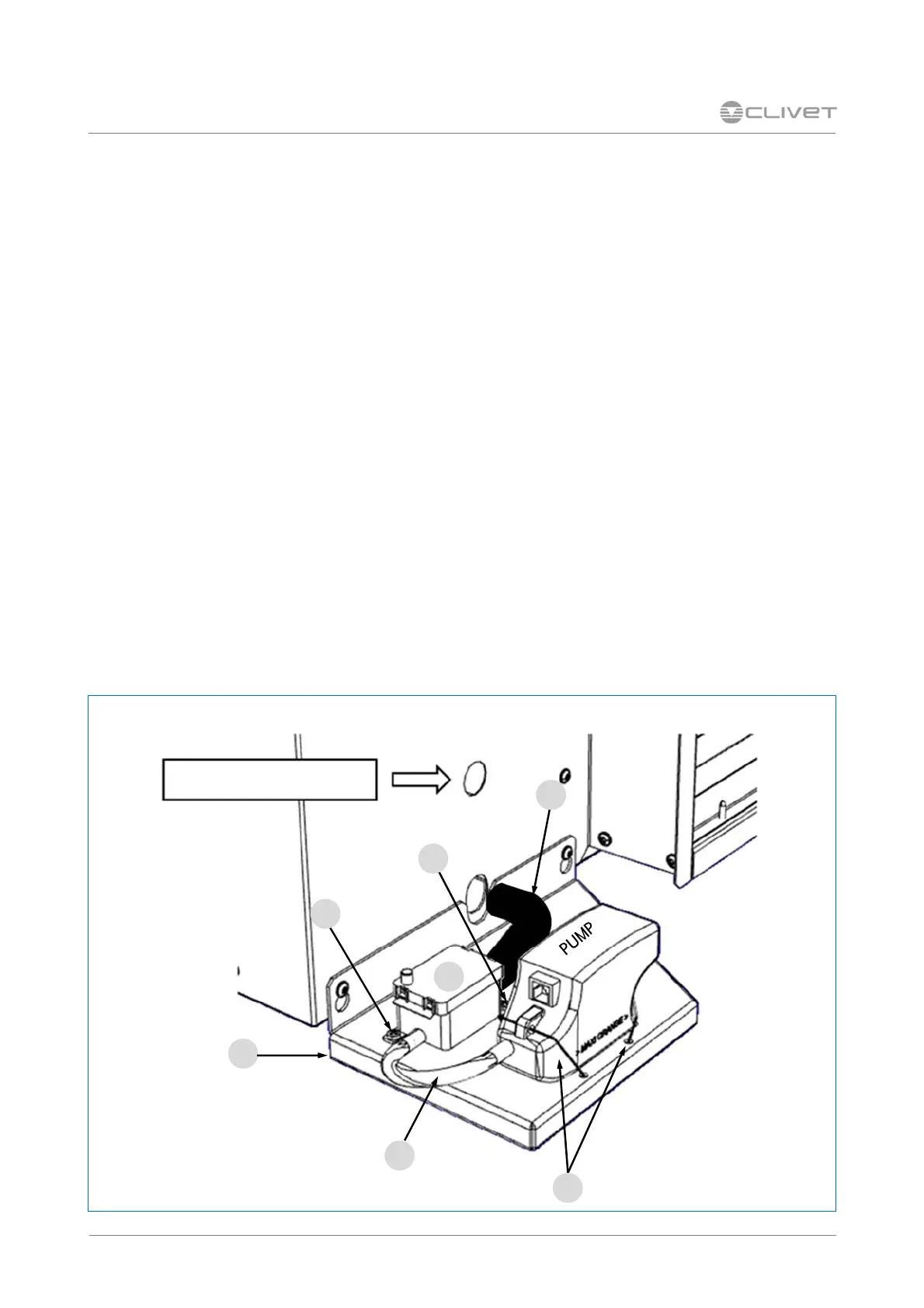

• Install pump support bracket (A)
• Connect black L-tube (B) to the unit condensate drain and to the pump tank (C)
• Connect the tank (C) to the pump with the pipe (D) and fix with clamps
• Fix the tank (C) to the bracket with the screws (E)
• Fix the pump with the clamps (F)
A
C
B
D
E
E
F
It is necessary in installations where the external outlet is placed at a higher height than the condensate
tray. The integrated sensor activates the pump only when necessary.
If the water level in the tray should be greater than the pre-set limit, the unit stops the compressor to
avoid the tray overflowing, signalling the fault with an alarm.
Condensate drain pump (option)
Hole for cable passage
