CLIVET EVH-X SPACE 2.1 User Manual

28
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

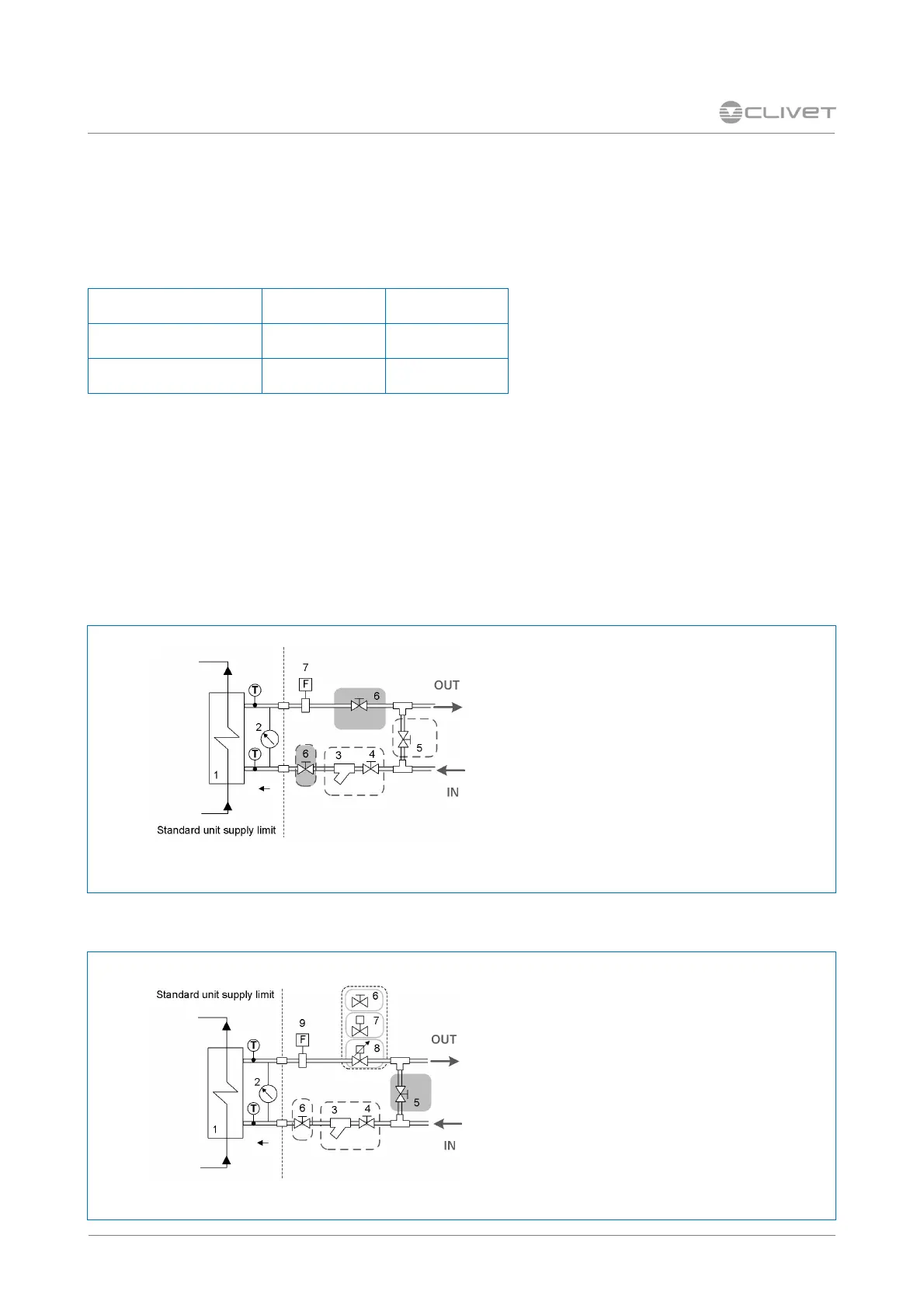

5 WATER CONNECTIONS
2-way manual shut-off valve (option)
• Two-way ball valve
Water connections
Warning
Kit composition
Size Ø Water fitting fittings
2.1-3.1-5.1-7.1 1”
F
10.1
-12.1 1”1/2
F
 Use a sealant to ensure tightness of the fittings.
1 Internal exchanger
2 Differential pressure switch
3 Filter *
4 Manually operated shut-off valve *
5 By-pass shut-off valve *
6 2-way manual shut-off valve
7 Flow switch *
* components not supplied with the kit
Application: constant flow-rate loop
Application: bypass
1 Internal exchanger
2 Differential pressure switch
3 Filter *
4 Manually operated shut-off valve *
5 By-pass shut-off valve
6-7-8 Regulating / shut-off valves for the
system *
9 Flow switch *
* componenti non forniti con il kit
