33
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

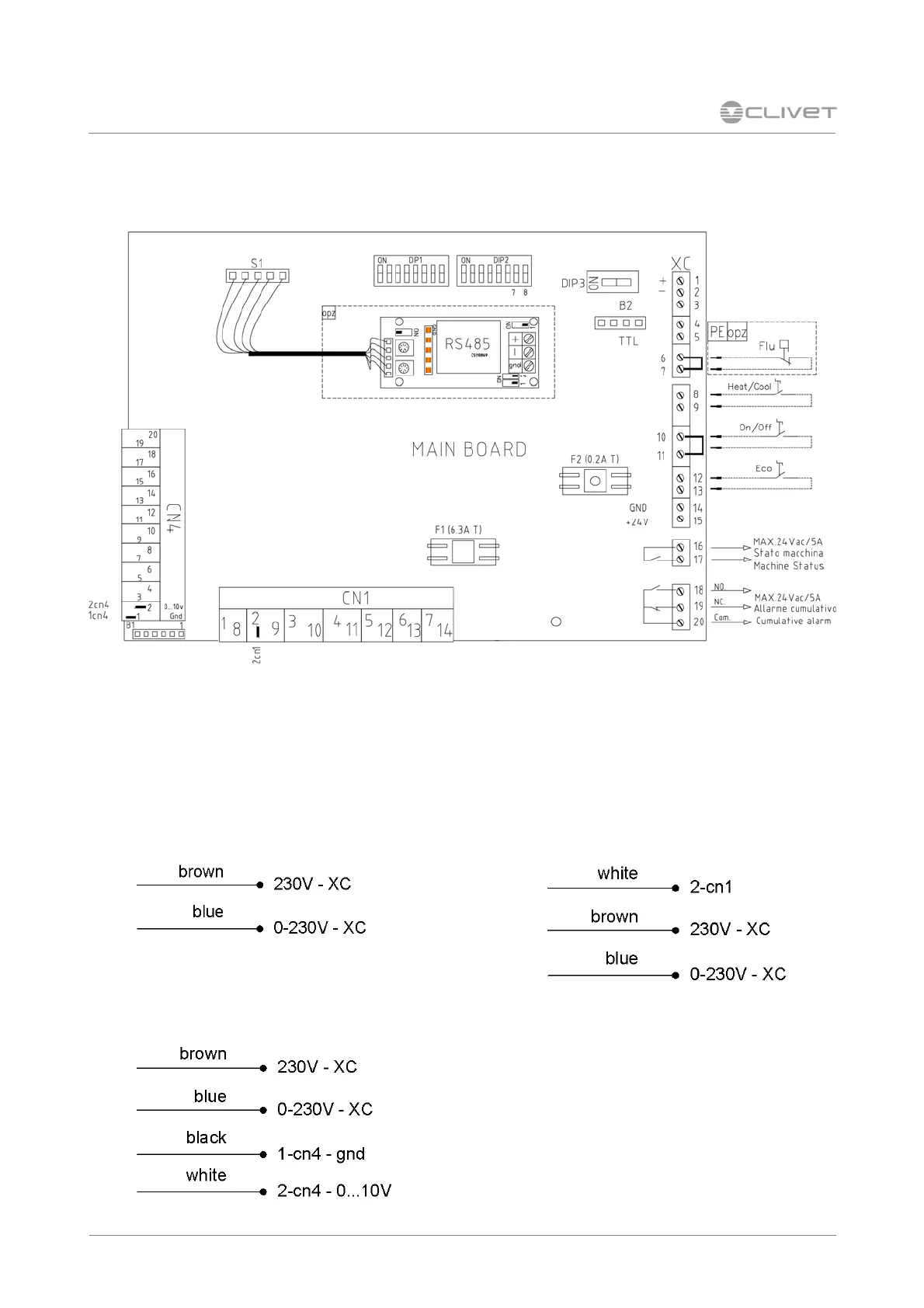

7 ELECTRICAL CONNECTIONS
Connections performed by customer
ON-OFF valve Discharge condensate pump
Modulating valve
Attention!
It is mandatory to use appropriately sized wire end sleeves for connecon of the power supply to the terminal block (XC1).
