5 WATER CONNECTIONS
• Two-way ball valve
• Steel mesh filter
Water connections
Warning
Kit composition
Size Ø Filter Ø Water fitting fittings Degree of filtration
2.1-3.1 1”
1”
F 400 μm
5.1-7.1 1”
1” M 40
0 μm
10.1-12.1 1”1/2
1”
1/2
M 50
0 μm
 Follow the direction of flow
 Use a sealant to ensure tightness of the fittings.

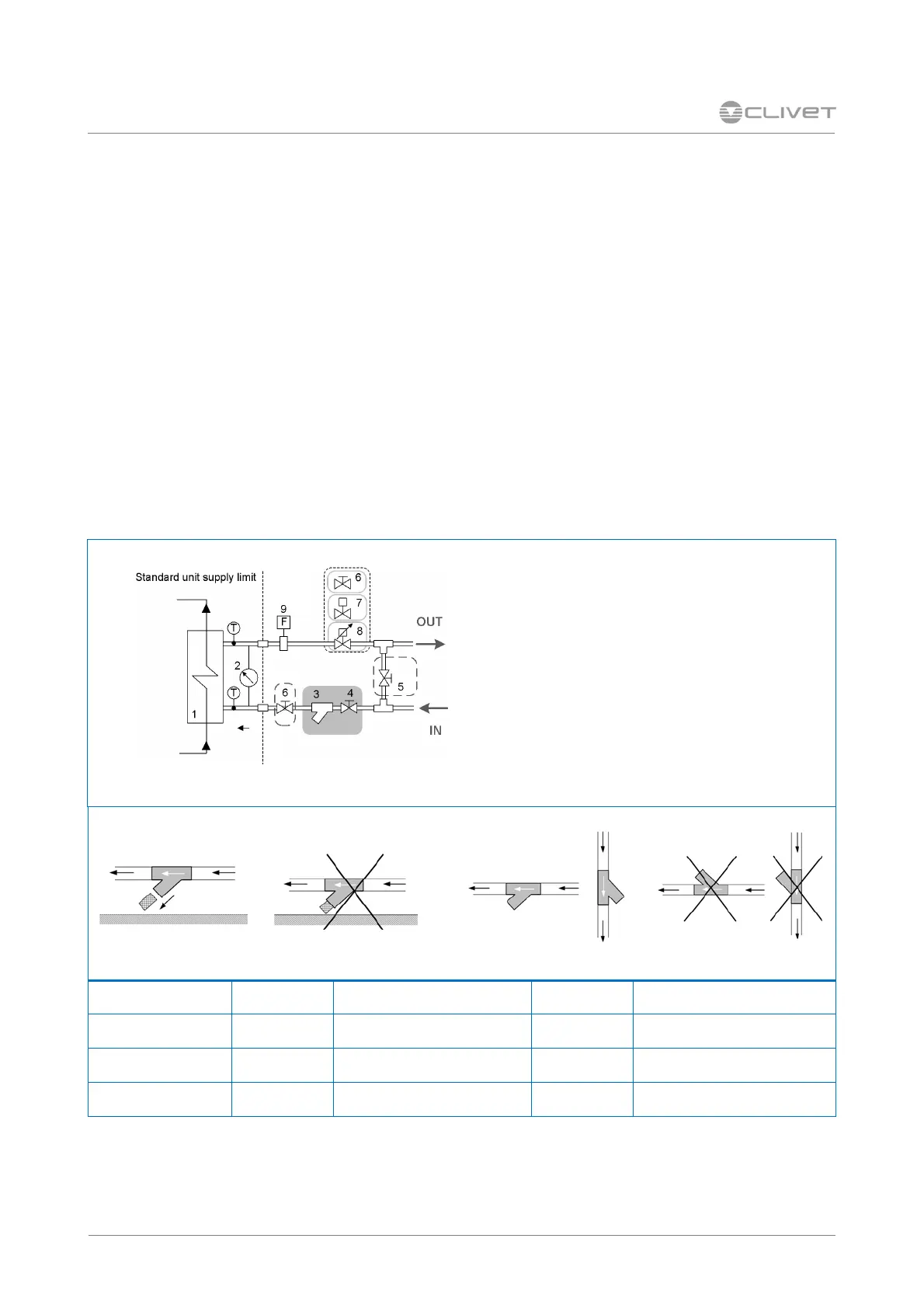

1 Internal exchanger
2 Differential pressure switch
3 Filter
4 Manually operated shut-off valve
5 By-pass shut-off valve *
6-7-8 Regulating / shut-off valves for the
system *
9 Flow switch *
* components not supplied with the kit
Steel mesh filter and manually operated shut-off valve (option)
OK
OK
