EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

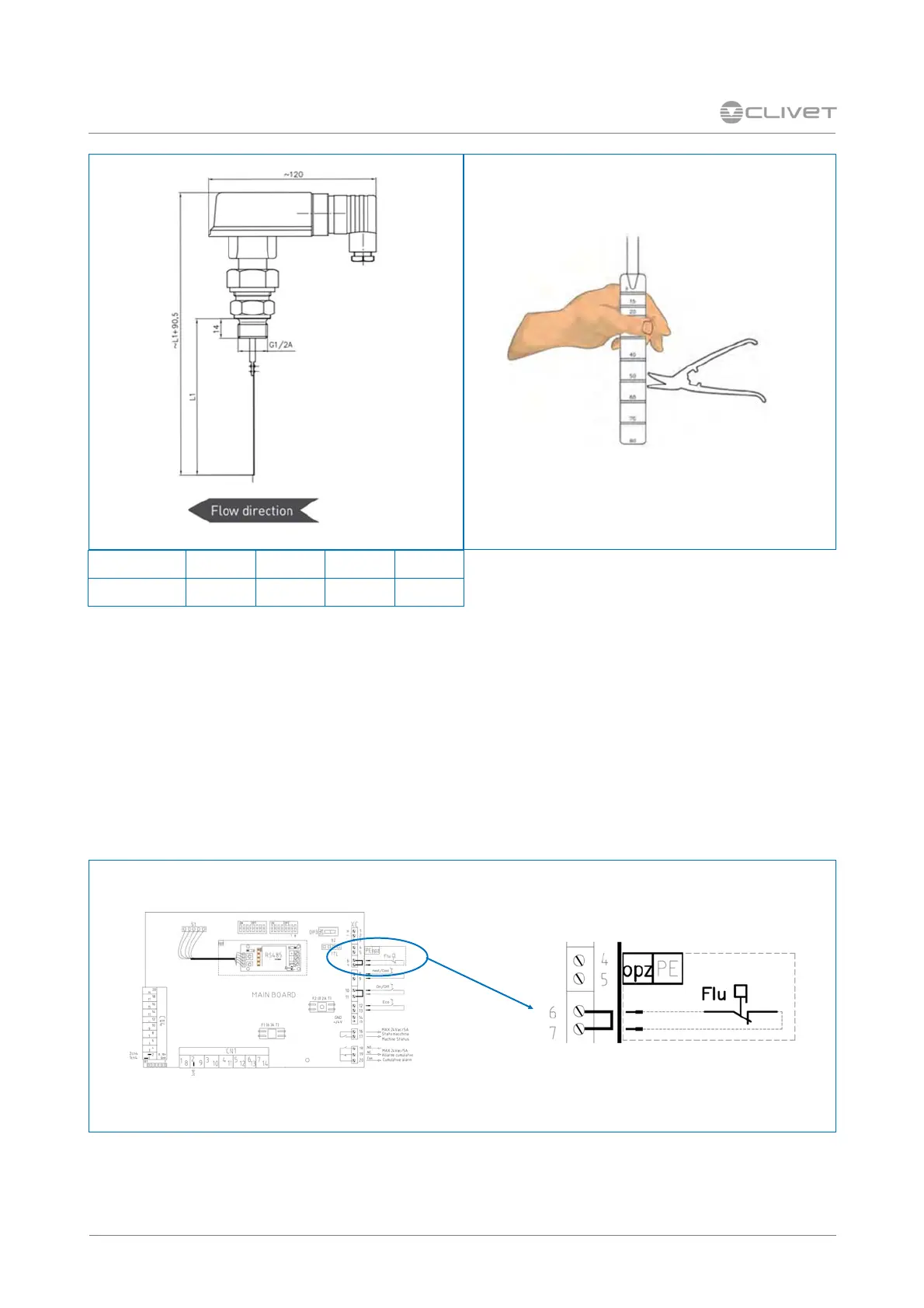

5 WATER CONNECTIONS
Cut on the “30” mark
Size
DN Rp fittings
10.1-12.1
40 1”1/2 F
L1 [mm]
61
Electrical connections
Perform the electrical connections after the hydraulic connections
Perform the electrical connections with the unit disconnected.
Make sure the cable is not damaged along the path between the electrical panel and the valve, use the
cable gland provided.
Follow the connections on the wiring diagram.
If in doubt, refer to the unit’s wiring diagram
Carefully tighten the terminals.
