CLIVET EVH-X SPACE 2.1 User Manual

36
EVH-X SPACE 2.1 - 12.1
M0SM10N17-03

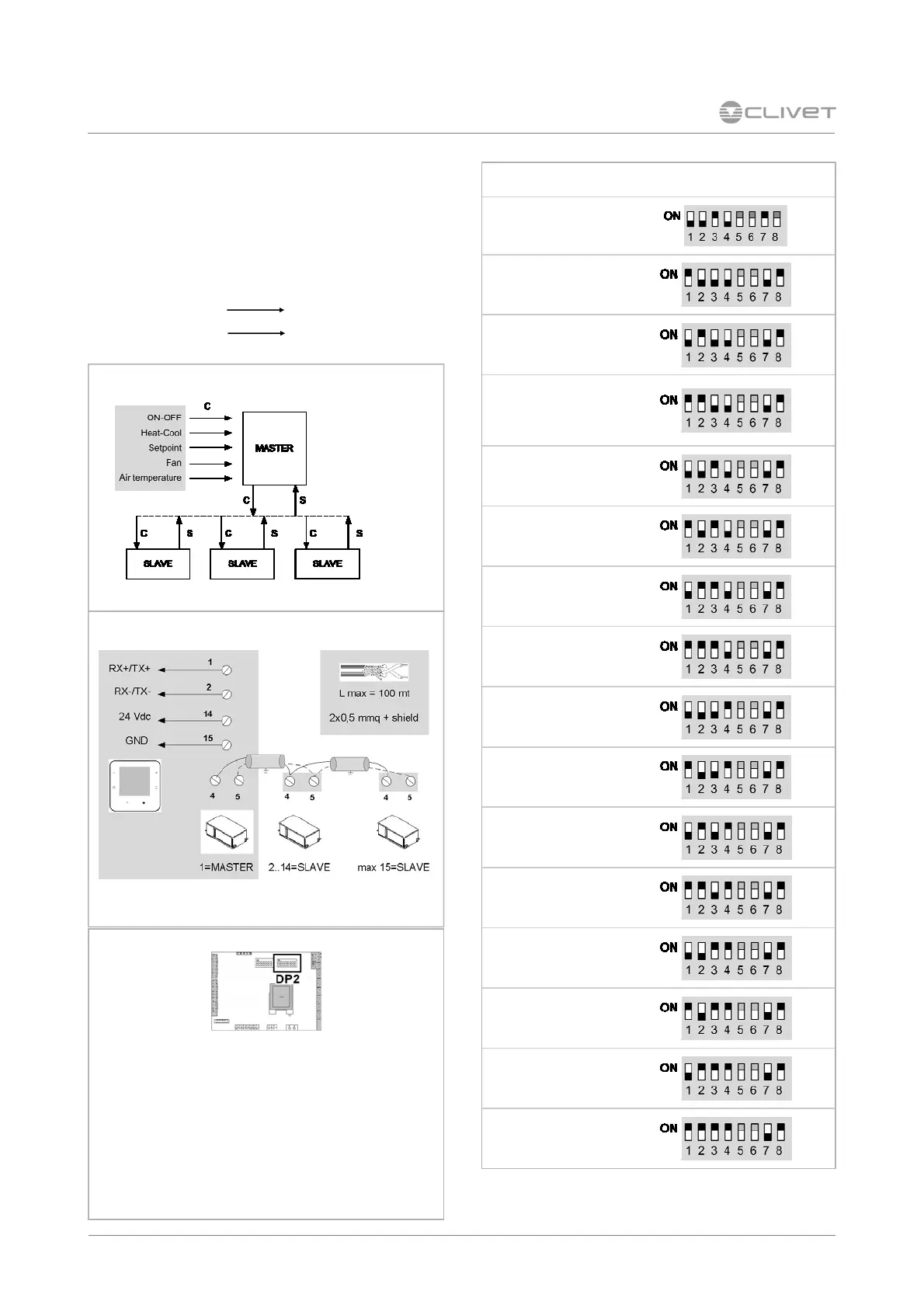

7 ELECTRICAL CONNECTIONS
C = command
S = status
1 master
1 slave
2 slave
3 slave
4 slave
5 slave
6 slave
7 slave
8 slave
9 slave
10 slave
11 slave
12 slave
13 slave
14 slave
15 slave
DP2 : ADDRESSING EXAMPLES
MASTER : dip 1...4 = num slave in rete
dip 7 = ON
SLAVE : dip 1...4 = indirizzo 1...15
(1, 2, 3, 4 = ok ; 1, 2, 4 ,= no)
dip 7 = OFF
NON IN RETE : dip 1...4 = off
Mini-Network
Max 15 unit: 1 master + 14 slave.
Maximum total length: 100 mt
Wire: 2x0,5 mmq + display
Changing a setting on the MASTER, it is to all the
SLAVE units.
Es.: Master = Cool Slave = Cool
Master = Heat Slave = Heat
