CLIVET WiSAN-YME 1 S 8.1 - Heating and Domestic Hot Water Operation; Cooling and Defrosting Operation

REFRIGERATION CIRCUIT
12

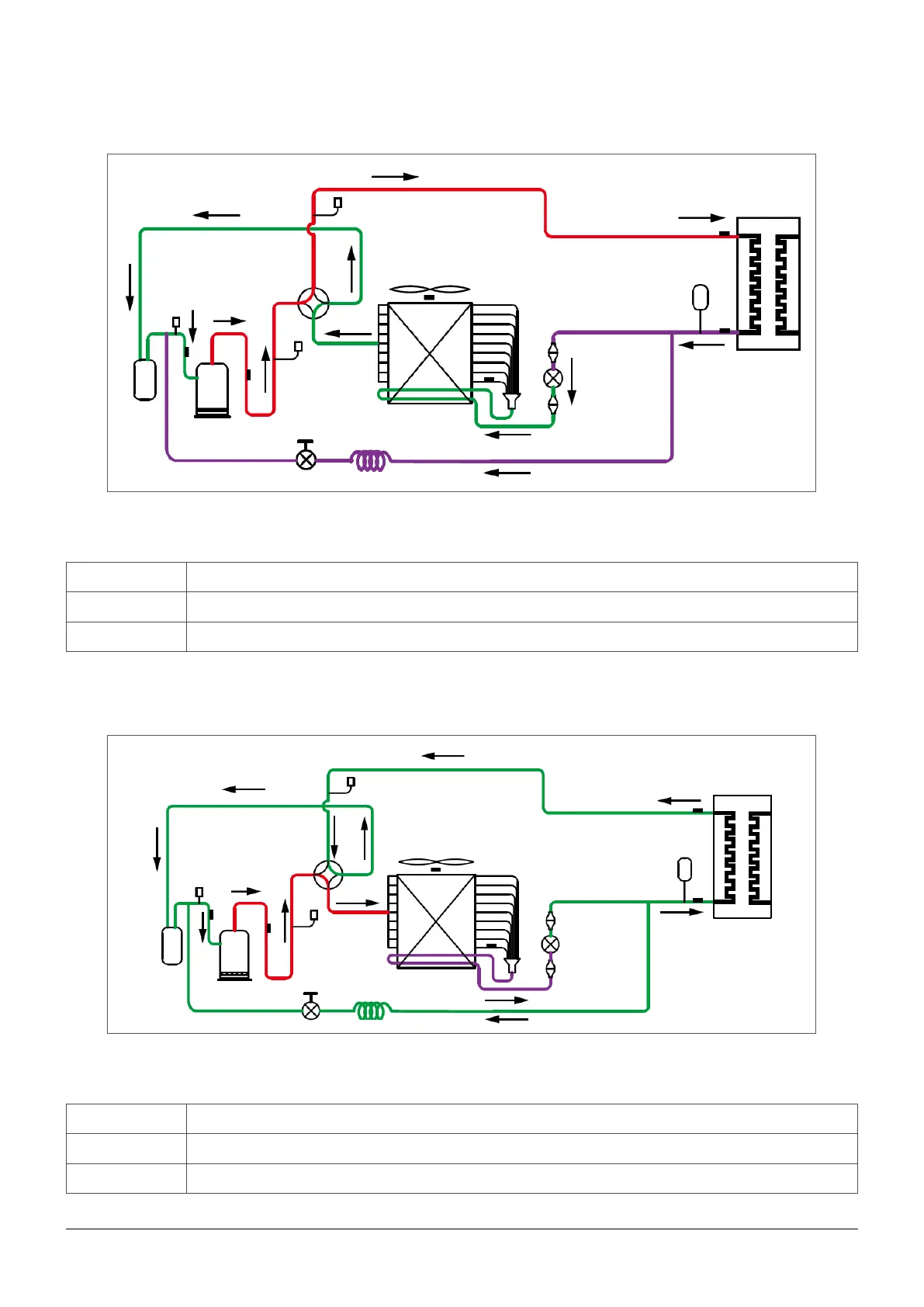

3.2 Heating and Domestic Hot Water operation
Red High temperature, high pressure, gas
Green Low temperature, low pressure
Viola High temperature, high pressure, liquid
3.3 Cooling and defrosting operation
Red High temperature, high pressure, gas
Green Low temperature, low pressure
Viola High temperature, high pressure, liquid
