LAYOUT OF PCB BOARDS
50

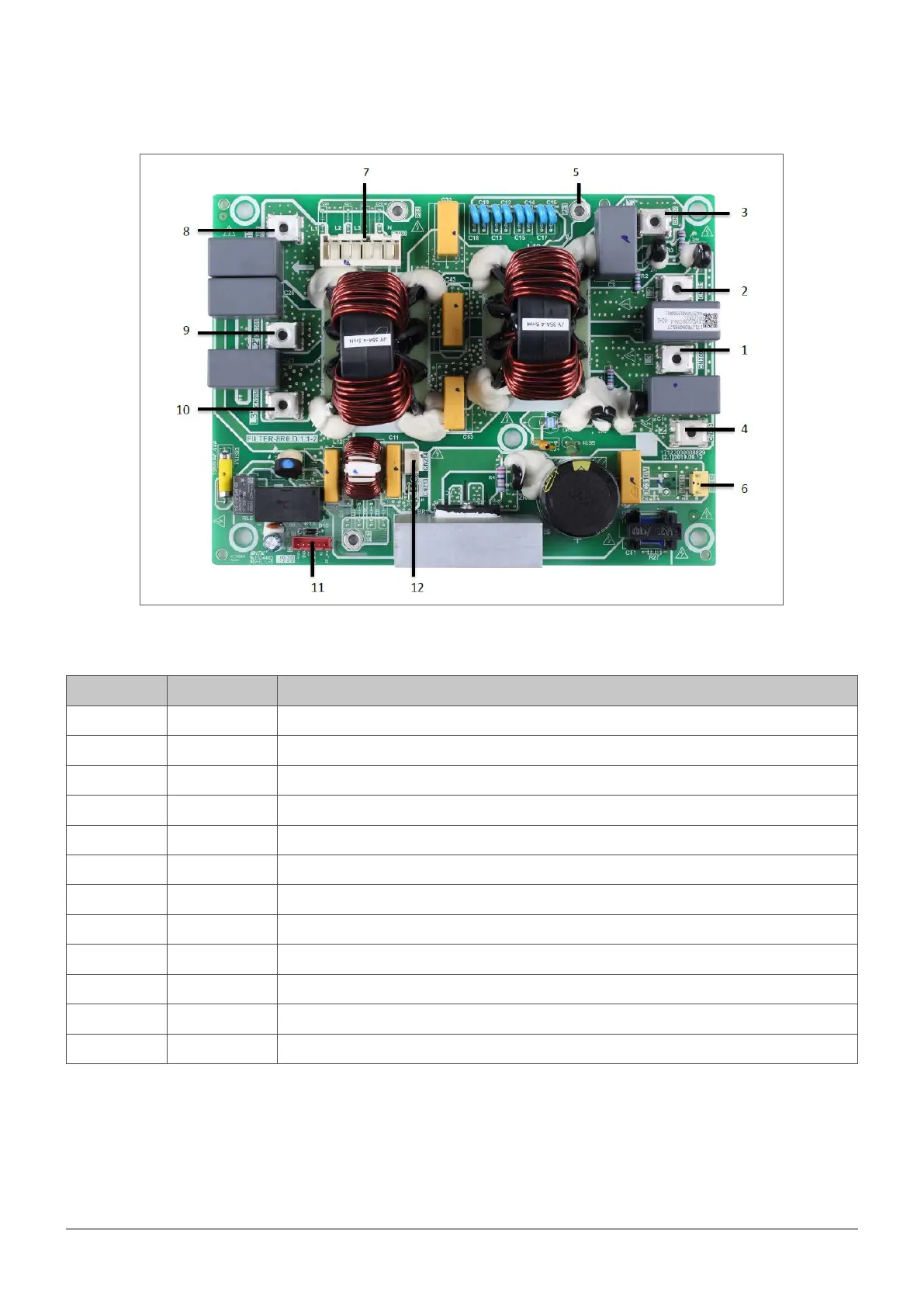

6.12 Filter module - 9.1. - 10.1 - 12.1 - 14.1
Rif Sign Description
1 L3 Power supply L3
2 L2 Power supply L2
3 L1 Power supply L1
4 N Power supply N
5 PE1 Earth wire
6 CN212 Power supply port for DC fan
7 CN30 Power supply port for main control board
8 L1’ Power filtering L1
9 L2’ Power filtering L2
10 L3’ Power filtering L3
11 CN8 Port for communication with PCB B
12 CN214 Power output for PCB A switching power output
