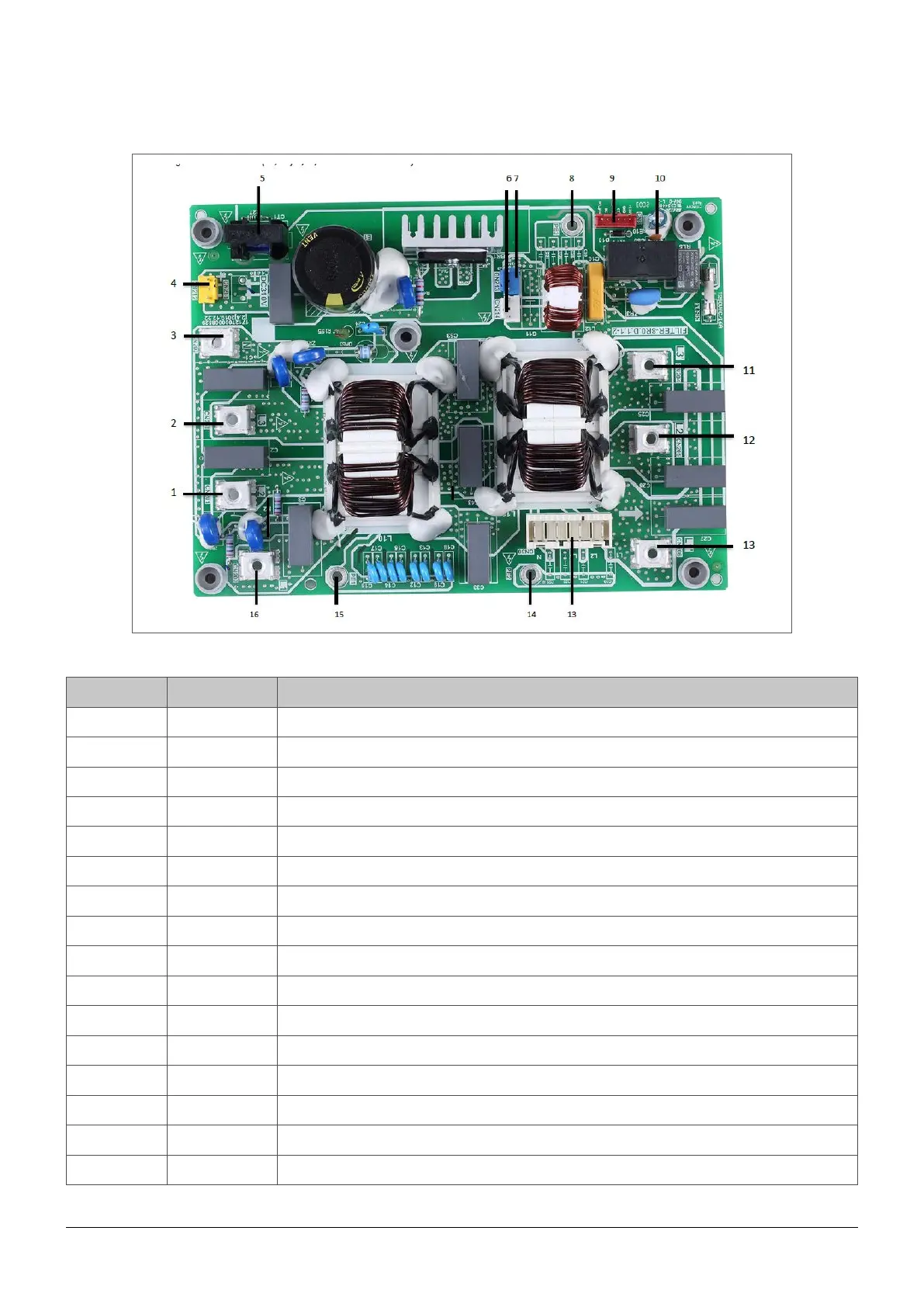

LAYOUT OF PCB BOARDS
6.11 Filter module 6.1T - 7.1T - 8.1T
Rif Sign Description
1 CN201 Power supply L2
2 CN200 Power supply L3
3 CN203 Power supply N
4 CN212 310VDC power supply port
5 CN211 Power supply port for load
6 CN213 Port for FAN reactor
7 CN214 Power supply port for Inverter module
8 PE3 Earth wire
9 CN8 Port for communication with the FILTER BOARD
10 L3’ Power filtering L3
11 L2’ Power filtering L2
12 L1’ Power filtering L1
13 CN30 Power supply port for main control board
14 PE2 Earth wire
15 PE1 Earth wire
16 L1 Power supply L1
