LAYOUT OF PCB BOARDS
34
6. Layout of PCB boards
The units have two main PCBs: one for the refrigerant circuit and one for the water circuit.
The main board of the hydronic system is the same on all models.

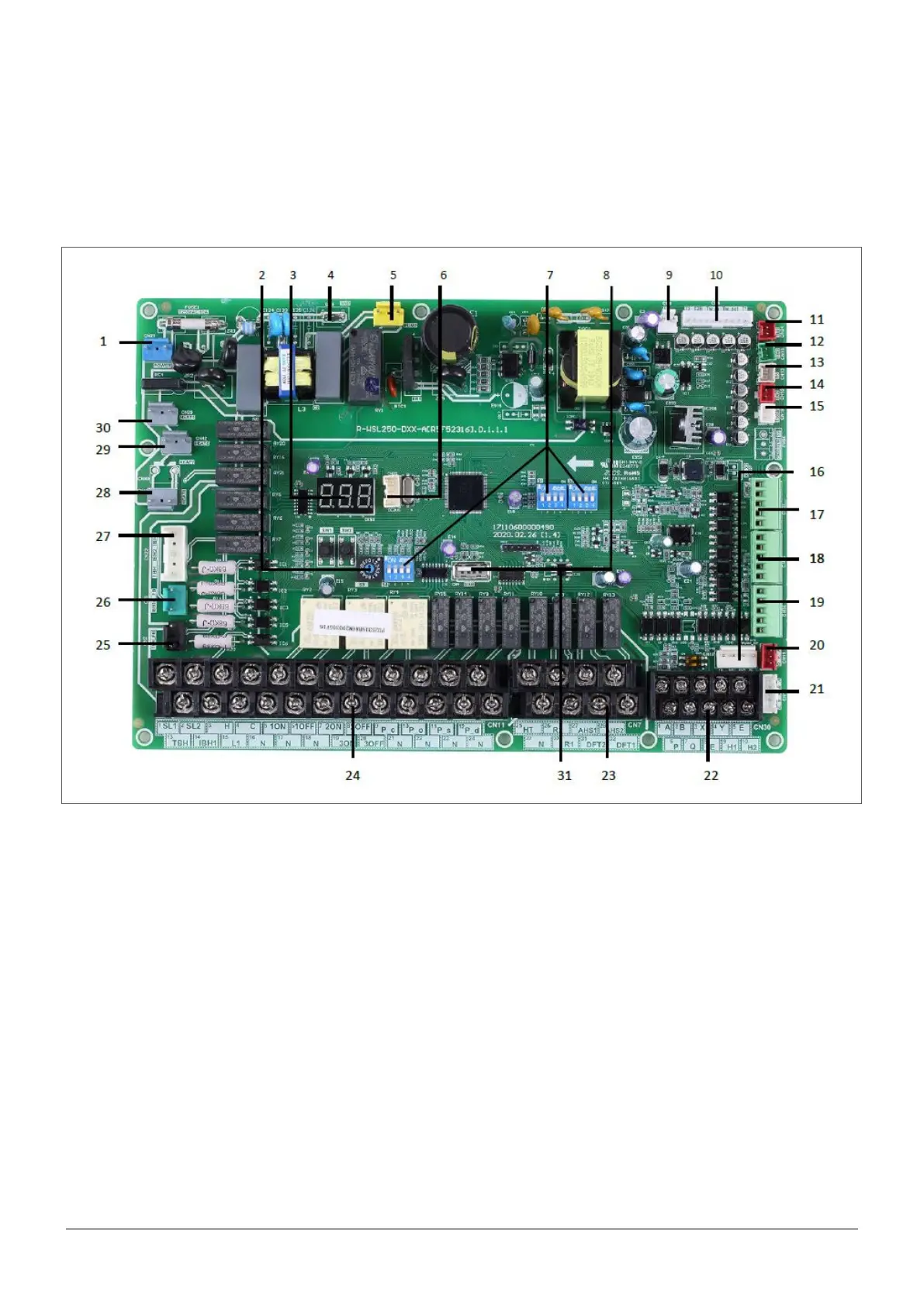

6.1 Water circuit board 2.1 - 14.1
