45
LAYOUT OF PCB BOARDS

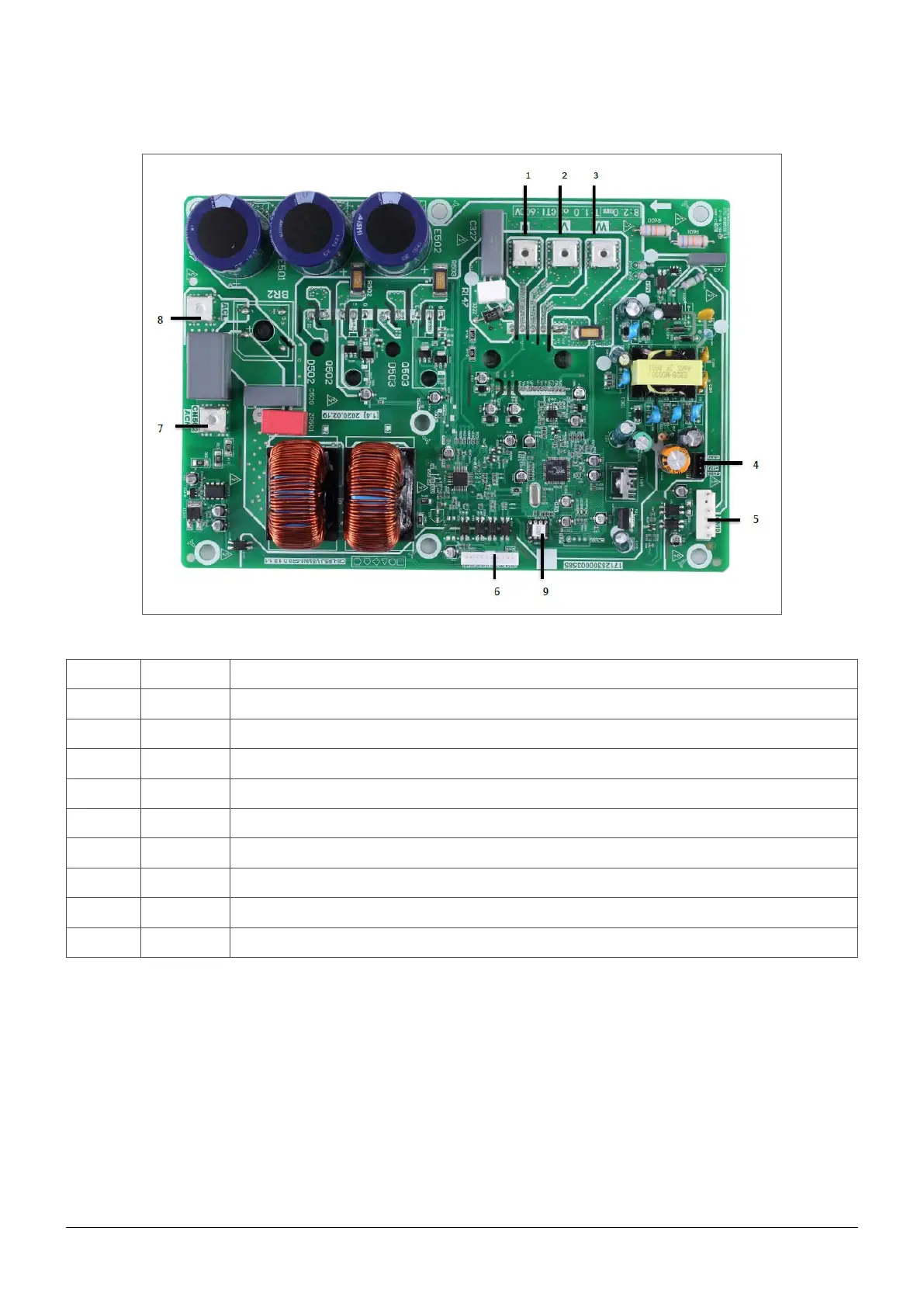

6.7 Inverter module - 4.1. - 5.1
Rif Sign Description
1 U Compressor connection port U
2 V Compressor connection port V
3 W Compressor connection port W
4 CN20 Output port for +12V/9V
5 CN19 Port for fan
6 CN32 Port for communication with main PCB for filter board
7 CN502 Input port L for rectifier bridge
8 CN501 Input port N for rectifier bridge
9 1C320 EEPROM
