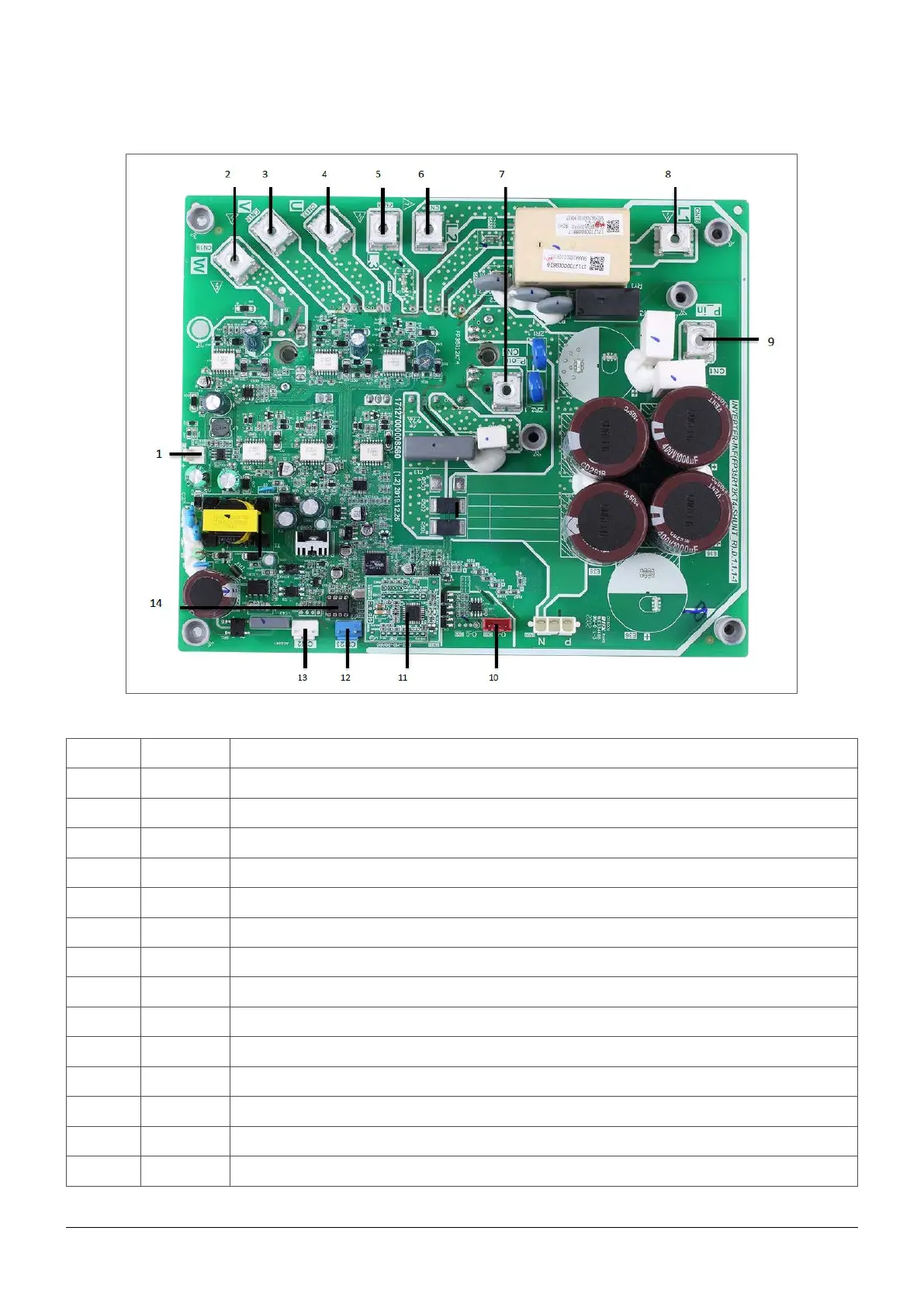

LAYOUT OF PCB BOARDS
6.9 Inverter module - 6.1.T - 7.1T - 8.1T
Rif Sign Description
1 CN4 Output port for +15V
2 W Compressor connection port W
3 V Compressor connection port V
4 U Compressor connection port U
5 L1 Power supply port L1
6 L2 Power supply port L2
7 P_out Input port P_out for IPM module
8 L3 Power supply port L3
9 P_in Input port P_in for IPM module
10 CN1 Communication port with filter board
11 CN22 Power supply for PED board
12 CN2 Power supply for switching power output
13 CN23 Port for high pressure switch
14 IC25 EEPROM
