CLIVET WiSAN-YME 1 S 8.1 Service Manual

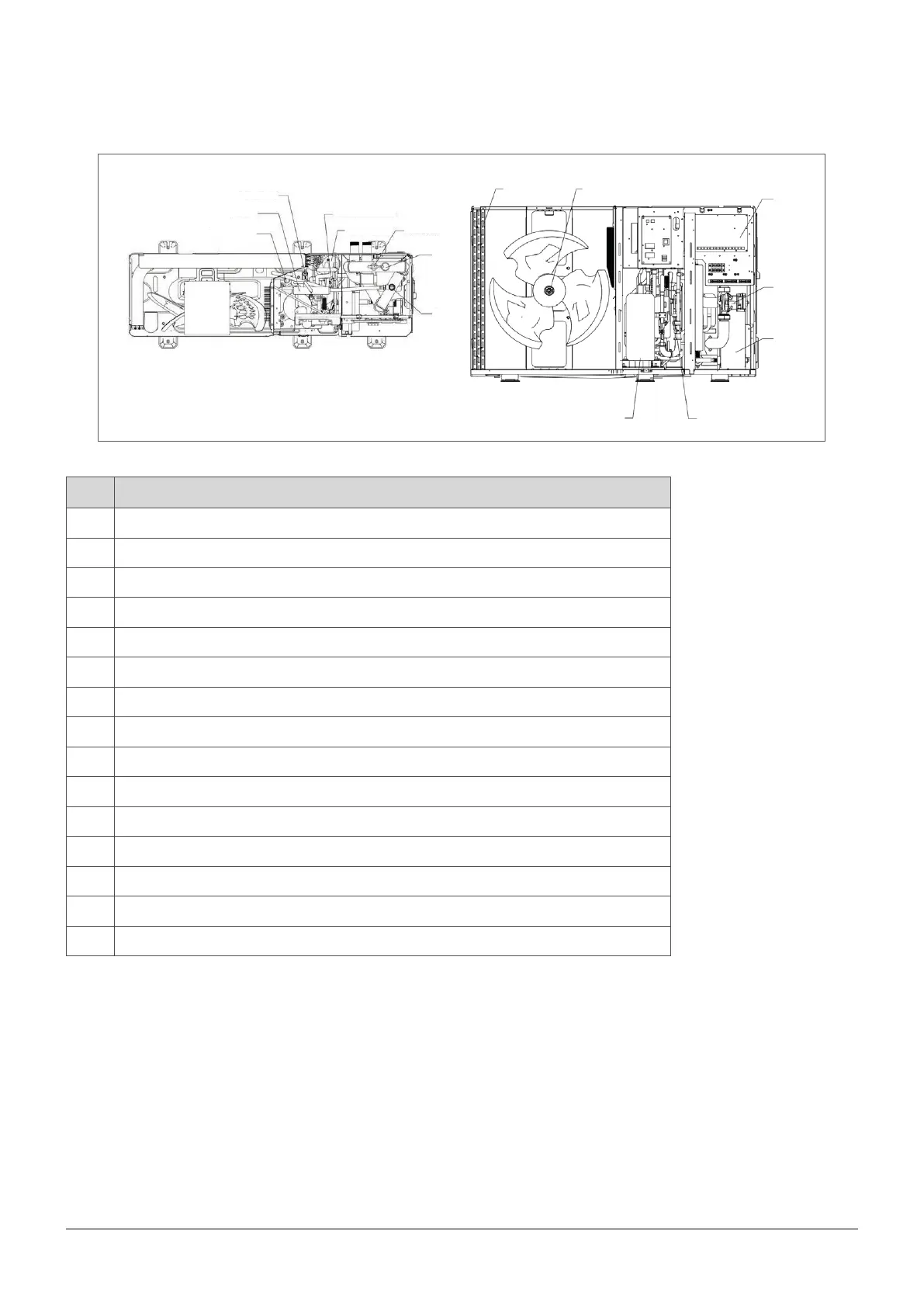

LAYOUT OF COMPONENTS
8
2.3 Sizes 6.1T - 7.1T - 8.1T
1
2
3
4
5
6
7
8
9 10
11
12
13
14
15
N° Component
1
High pressure switch
2
4-way valve
3
Pressure sensor
4
Electronic expansion valve
5
Gas-suction separator
6
Water flow switch
7
Air relief valve
8
Water pressure relief valve
9
Source exchanger: Finned coil
10
Fan motor
11
Main board
12
Water circulator
13
Water side heat exchanger
14
Low pressure switch
15
Compressor inverter
