B-29
Programming
GLC 353/503/553 MC3
4
2
4
2
4
2
P4 Programmieren eines Schweißprozessablaufs

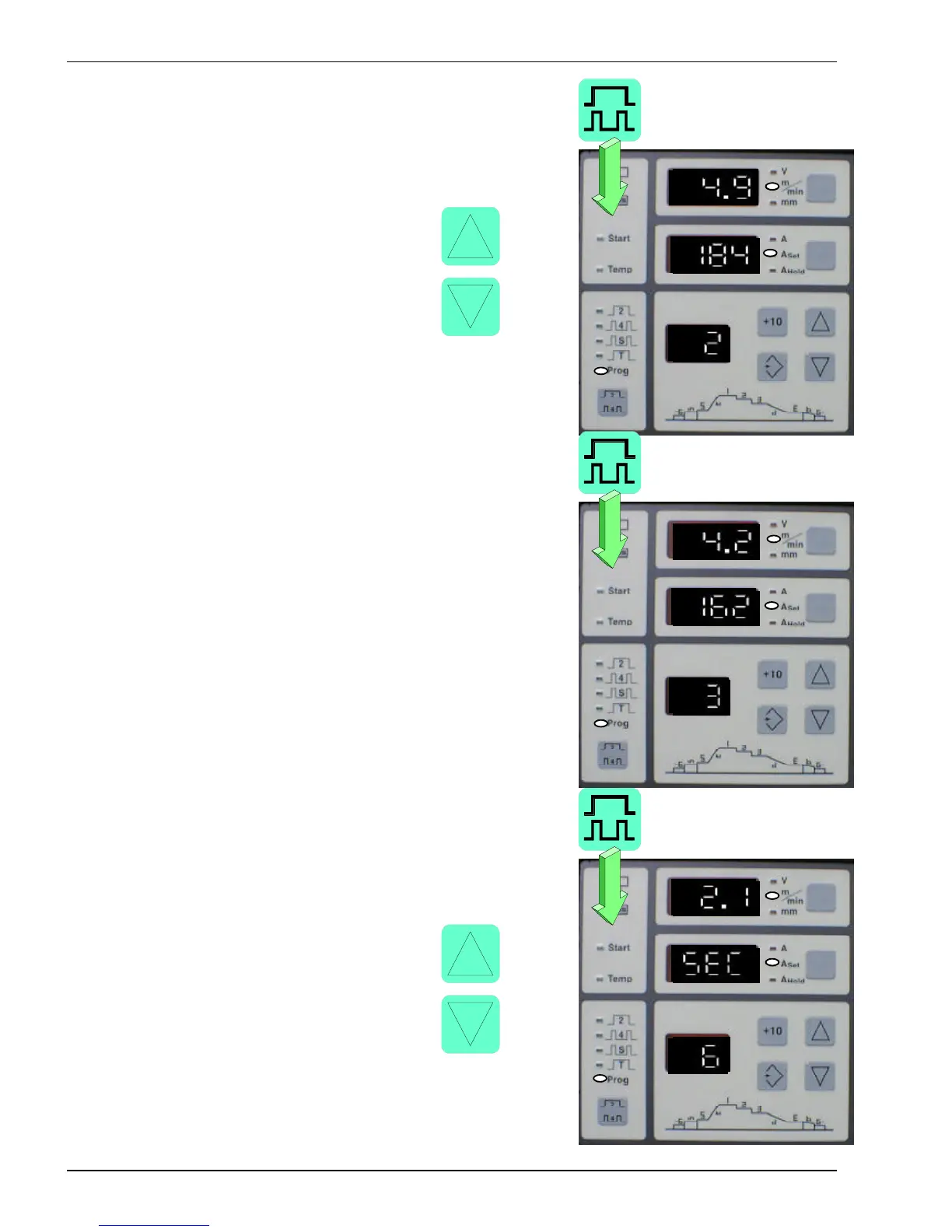

- Press and release the key Operating mode again.
Main parameter 2 can be set.
Proceed in the same way as described for
setting the Capacity 1.
- After setting the Main parameter 2, press the key
Operating mode.
You can now set Main parameter 3.
Please proceed in the same way as described
for setting Main parameter 1 and 2.
If you want to weld with Main parameter 1 and 2 only
you just have to turn the wire feed of
Main parameter 3 to 0.
- Press and release the key Operating mode.
Set the time for End crater ramp.
Actuate the keys Up
or Down until the required
value has been set.
