20
P/N 192047138 Rev AA November 2017
WIRING DIAGRAMS
The following wiring diagrams are representative. For actual wiring diagram, refer to the diagram supplied with the hoist. Note: for 575-3-60
units, refer to wiring diagram supplied with hoists.

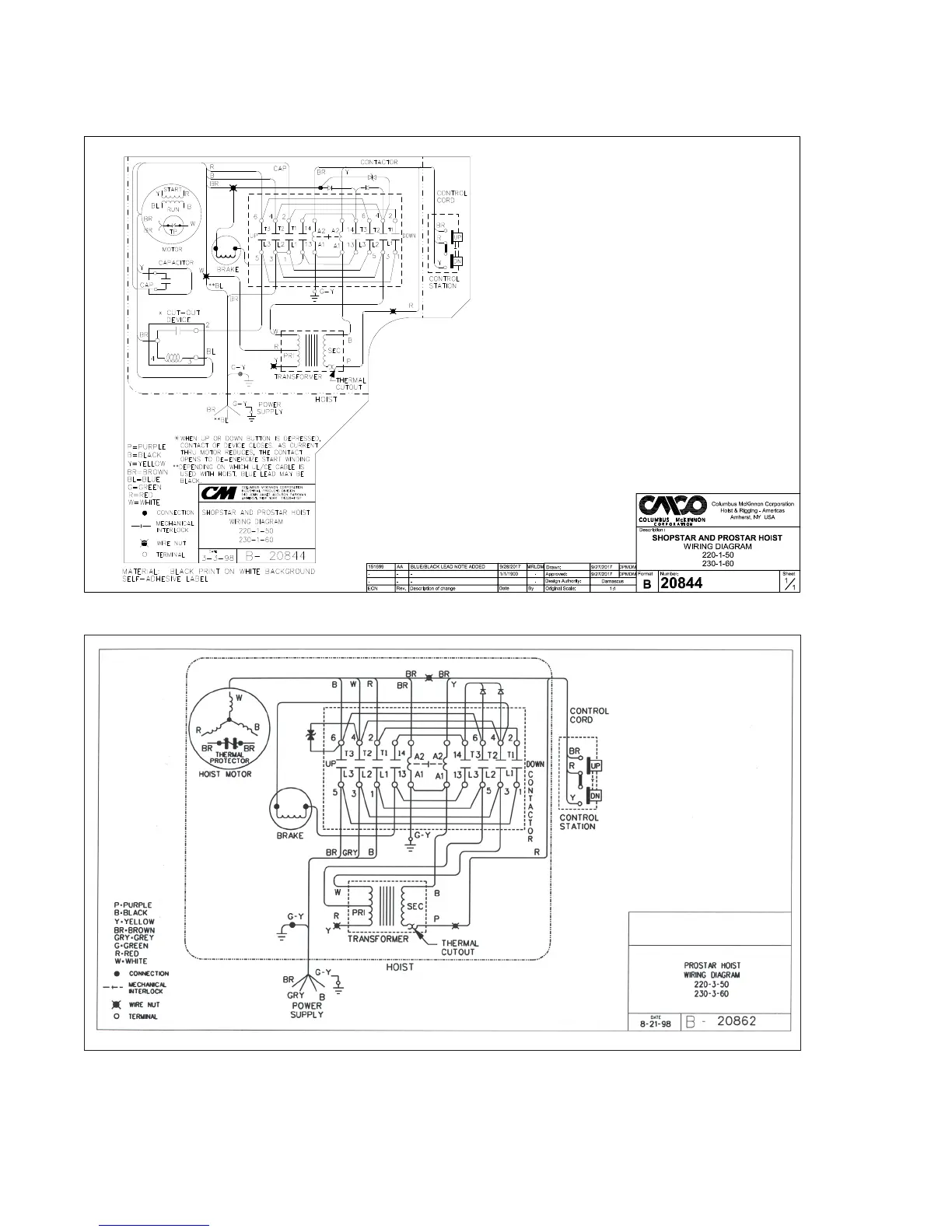

Figure 19 - 220-1-50, 230-1-60 Hoists with Contactor (Black Control Station)
Figure 20 - 220-3-50, 230-3-60 Hoists with Contactor (Black Control Station)
