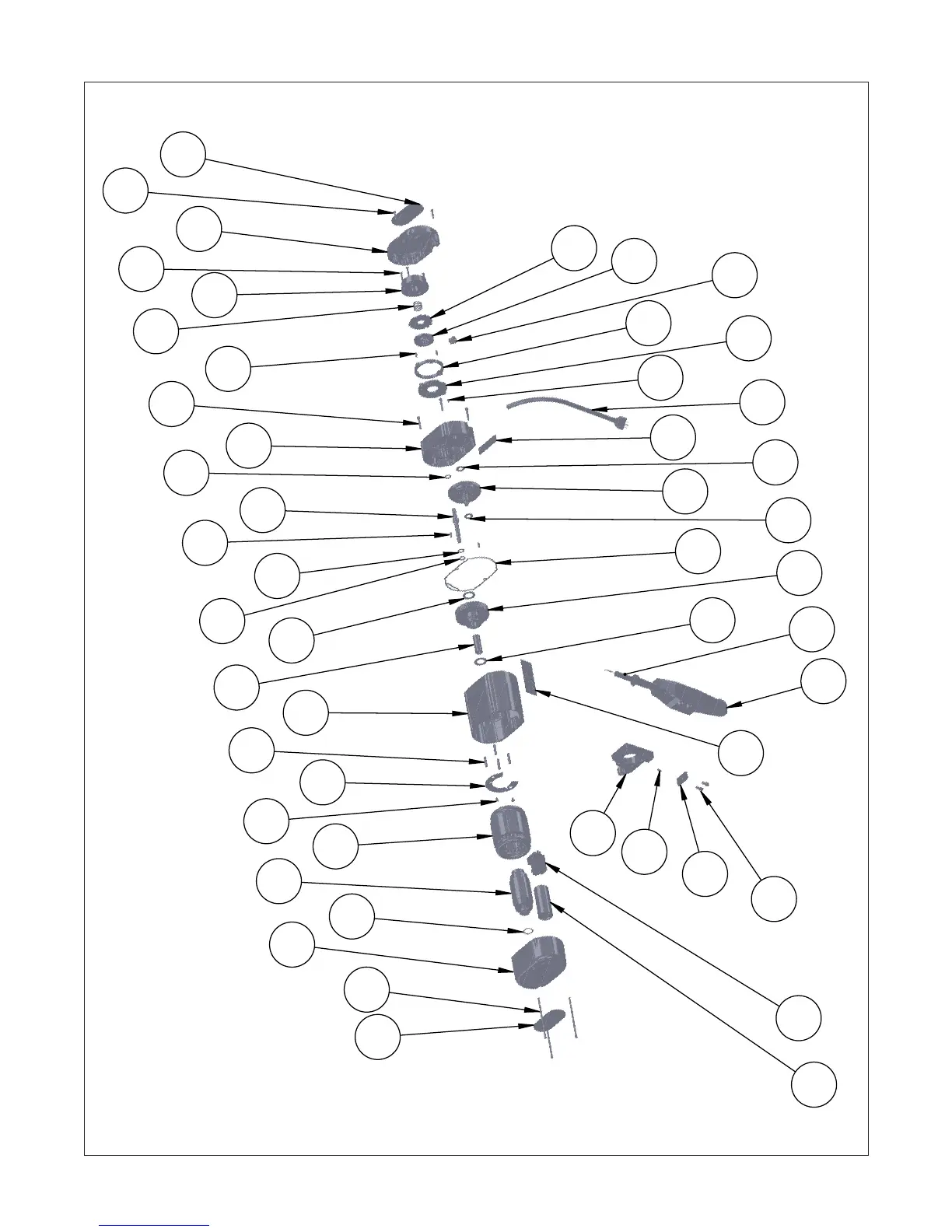

28
37
3
25
36
31
34
10
23
42
2
8
24
21
6
43
17
20
19
26
32
23
15
19
1
18
33
4
20
7
18
13
11
14
35
9
12
5
22
30
29
23
40
41
45
45
16
39
38
ITEM NO.
PART NUMBER
DESCRIPTION
NO SPACER/QTY.
1
Shopstar manual20704
LIFTWHEEL SHAFT SEAL
1
2
Shopstar manual20723
BRAKE SPACER
1
3
20345
20323
20377
20366
BRAKE END COVER
BLACK
ORANGE
WHITE
YELLOW
1
4
Shopstar manual20313
LIFTWHEEL SHAFT
1
5
20321
20302
20356
20369
MOTOR END COVER
BLACK
ORANGE
WHITE
YELLOW
1
6
20301B
20301C
20301W
20301Y
GEAR HOUSING
BLACK
ORANGE
WHITE
YELLOW
1
7
20300B
20300C
20300W
20300Y
MAIN FRAME
BLACK
ORANGE
WHITE
YELLOW
1
8
Shopstar manual20419
BRAKE BASE PLATE
1
9
Shopstar manual20651
ROTOR ASSEMBLY
1
10
Shopstar manual20698
BRAKE DISC
1
11
Shopstar manual20700
PIN RETAINER PLATE
1
12 20727
ROTOR THRUST WASHER
1
13
Shopstar manual20729
CHAIN GUIDE/STRIPPER PIN
4
14 20743
PIN RETAINER PLATE SCREW
2
15
Shopstar manual20755
GASKET
1
16
Shopstar manual20758
CAUTION LABEL
1
17
Shopstar manual24842
WARNING LABEL
1
18
Shopstar manual88638
LIFTWHEEL THRUST WASHER
2
19
Shopstar manual88639
FIRST PINION THRUST WASHER
2
20
Shopstar manual88640
PROTECTOR THRUST WASHER
2
21
Shopstar
manual920718
GEAR HOUSING SCREW
4
22
Shopstar
manual920719
MOTOR COVER SCREW
3
23
Shopstar
manual920720
DOWEL PIN
5
24 920756
WIRE NUT
1
25 10001215
BRAKE SCREW
4
26
20665
20645
20660
20665
20638
20662
20645
20660
20648
20661
20638
20662
20648
20661
PROTECTOR ASSEMBLY
6 fpm, 1,000 lbs.
8 fpm, 500 & 600 lbs.
8 fpm, 1000 lbs.
12 fpm 500 lbs.
12 fpm, 600 lbs.
12 fpm, 1000 lbs.
16 fpm, 250 & 300 lbs.
16 fpm, 500 lbs.
20 fpm, 500 lbs
20 fpm, 600 lbs.
24 fpm, 250 & 300 lbs.
24 fpm, 500 lbs.
40 fpm, 250 lbs.
40 fpm, 300 lbs.
1
27
20667
20668
20669
-
20675
20676
20677
-
CONTROL CORD ASSEMBLY
FOR ORANGE CONTROL STATION &
10 ft. lift
15 ft. lift
20 ft. lift
FOR BLACK CONTROL STATION &
10 ft. lift
15 ft. lift
20 ft. lift
FOR OTHER LIFTS, CONTACT FACTORY
28
Shopstar manual20763
CAPACITY WARNING LABEL
250 lbs.
300 lbs.
500 lbs.
600 lbs.
1,000 lbs.
1
29
Shopstar
manual10001230
CHAIN GUIDE/STRIPPER
1
30
Shopstar manual20753
SHOPSTAR LABEL
1
31
Shopstar manual20887
1
32
Shopstar manual20422
FIRST PINION & DRIVE SHAFT
1
33
Shopstar manual20646
LIFTWHEEL AND GEAR ASSEMBLY
1
34
Shopstar manual20420
ARMATURE
1
35
Shopstar manual20707
STATOR 3 PHASE
1
36
Shopstar manual20629
(20658, 20659)
1
37
Shopstar
manual920715
SCREW, BRAKE COVER
3
38
Shopstar manual20709
1
39
Shopstar manual20708
START CAPACITOR
1
40
Shopstar manual20714
DEAD END PLATE
1
41
Shopstar manual73715
SOCKET HEAD CAP SCREW
2
42
Shopstar manual20717
CORD GRIP
1
43
Shopstar manual20635
up down Power Cord
1
44
Shopstar manual20711
UPPER GROMMET
1
45
Shopstar
manual36900R
CONTROL CORD AND STATION SUB ASSEMBLY
1
46
Shopstar
manualChainContainer
1
