MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 19 of 126

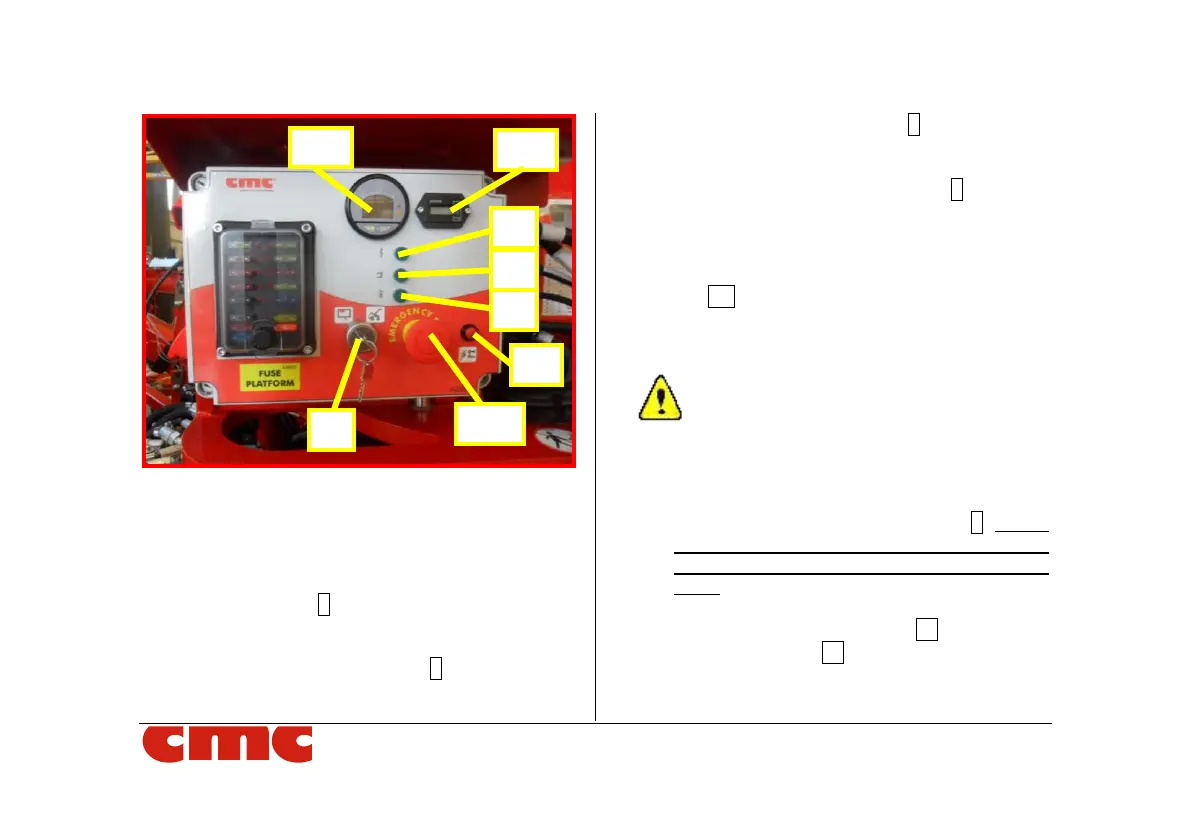

Picture 4c: ignition station in case of hybrid or
full lithium version.
In hybrid version and in a full lithium equipment, the
electrical box mounted on the chassis (Picture 4c)
changes as below:
• the green light 5 indicating machine power
supply: it is on when the SK key is in position
I;
• the control station selector 6: at left it ena-
bles the basket control station, at right the ra-
dio control on the ground.
• the platform consent light 7: if lighted on, it
allows the maneuvers of the aerial part only
with stabilization correctly performed.
• the stabilization consent light 8: if lighted
on, it allows the movement of the outriggers
only with the boom and the pantograph rested
on their supports.
• the emergency red mushroom-shaped but-
ton EB that blocks the machine, removing the
power supply to the control circuits. This button
has priority over all other commands; thus, it
allows only manual descent to the ground.
The emergency button has a mechanical
locking device; therefore, it must be un-
locked by turning it clockwise to reacti-
vate the normal machine working.
• the “dead man” outriggers button 9: it must
be held pressed together with other levers of
outriggers control station to stabilize or desta-
bilize.
• the fuse box;
• the battery charge indicator 10;
• the hour counter 11.
