MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 18 of 126

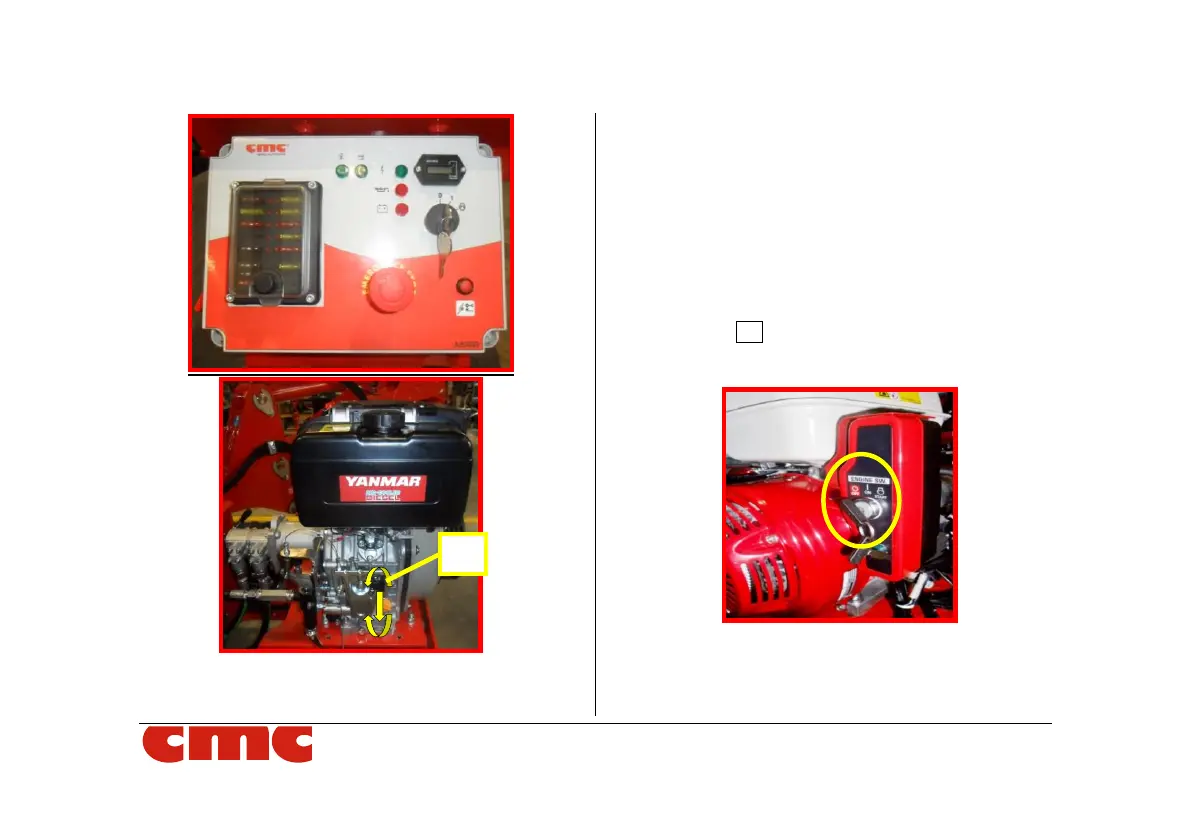

Picture 4b: ignition station in case of
Yanmar diesel engine.
The Yanmar diesel engine has a hydraulic accelera-
tor in order to change the travel speed also manual-
ly unscrewing the knob A, lowering it until to “hare”
symbol and screwing it in the new position (Picture
4b).
If the machine is equipped with a petrol engine or in
a hybrid version (petrol + electric engine), the con-
trol station includes an ignition key lock positioned
directly on the motor group (Picture 4c): turning to
the right the SK key, it is possible to switch on the
electric system and start the endothermic engine.
