• lever 9 for lowering/raising outriggers
during loading/unloading operations;
• travel speed selector 10: “turtle” mode =
slow speed, “hare mode” = medium
speed, “double hare” mode = high speed;
• lever 11 for automatic stabiliza-
tion/destabilization;
• lever 12 for "Home function” / basket
levelling (dead man device).
Carry out the basket levelling operation
only when the aerial part of the MEWP is
in transport configuration.
It is strictly forbidden to carry out the
basket levelling operation when the ma-
chine is developed.
- on the right side:
• electropump activation button.

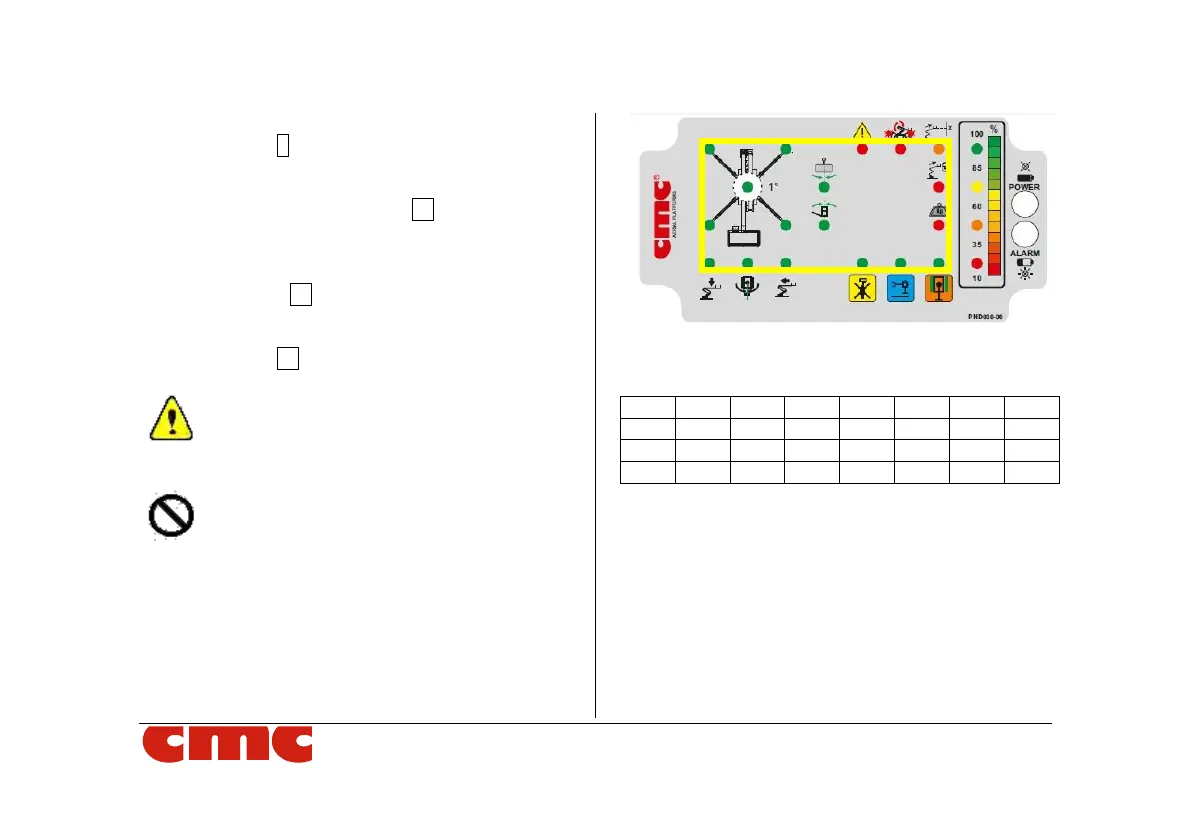

Picture 9: LED panel with indicator lights.
1
3
5
6
7
8
10
12
15
16
17
19
20
23
24
25
26
27
29
30
31
32
Table 1: assignment number for LEDs matrix.
1. LED – LEFT FRONT OUTRIGGER TO
THE GROUND
2.
3. LED – RIGHT FRONT OUTRIGGER
TO THE GROUND
4.
5. LED – DANGER/GENERIC FAULT
6. WARNING LIGHT - ANTICRASH
