MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 29 of 126
3.2.2 Basket (operating) control station
The functions contained on the basket
control station are the same as those of
the platform (operating) control station in
Picture 8 and are indicated by the same
symbols described above.
In the basket (operating) control station, clearly, the
parking button P and the lever 7 are missing.

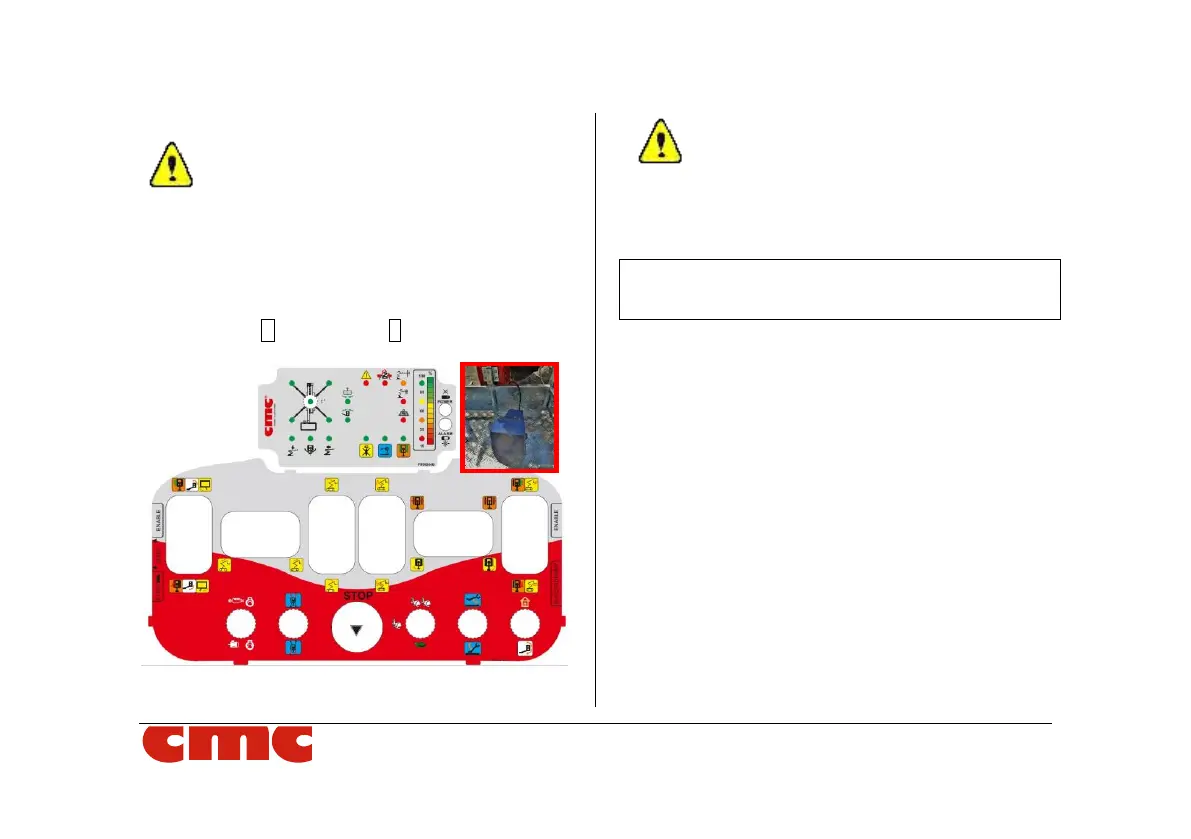

Picture 12: basket control station +
“dead man” pedal.
The “dead man” pedal (*optional) must be
pressed simultaneously with joysticks for all
manoeuvres by the basket control station.
3.3 Emergency control sta-
tions
The emergency control station includes:
• outriggers control station;
• errors display;
• emergency workbench for recovery procedure.
3.3.1 Outriggers control station
The "outriggers control station” is fixed aboard the
machine frame.
The manual stabilization/destabilization manoeuvres
are carried out by the operator on the ground
through the outriggers control levers (Picture 13):
