MAN.234 Rev.6 ENG - Use and maintenance manual S19HD page 53 of 126

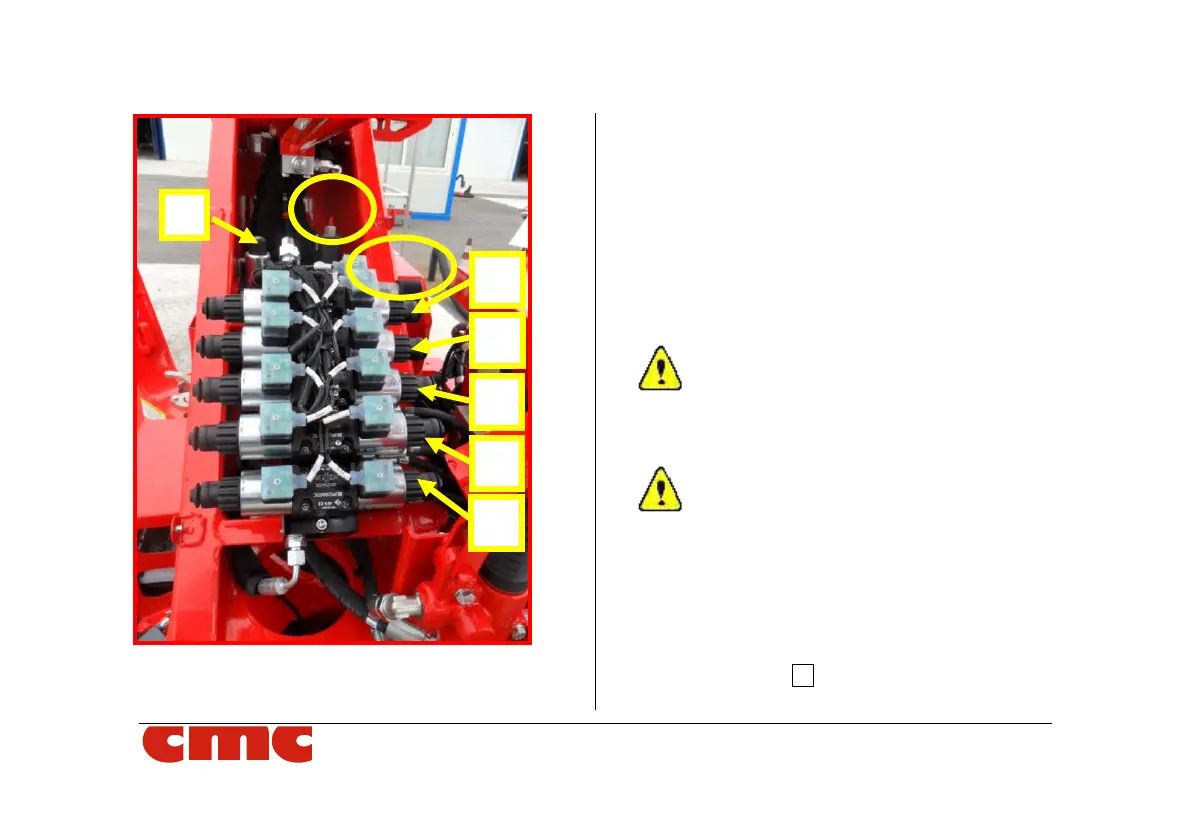

Picture 23: manoeuvres on
emergency workbench.
4. Perform the aerial part recovery operations in
the following sequence, by pressing the cursor
of the specific maneuver (Picture 23) and sim-
ultaneously pumping oil with the manual pump:
1. jib closing 5;
2. telescopic booms return 2;
3. telescopic booms lowering 3;
4. pantograph lowering 4;
5. basket levelling 1;
6. turret rotation, keeping pressed 6 togeth-
er 1.
When you have to carry out the boom
lowering, it is necessary to unseal and
keep pulled the red cursor of the solenoid
valve RC (Picture 23).
CAUTION! In case of emergency, first
perform the retraction of the telescopic
boom and then the lowering of the boom
and of the pantograph.
If necessary, the basket operator can operate the
basket centering first pressing the cursor of the
valve in Picture 24, with a pointed object, and then
moving the joystick J6 (Picture 8) upward for coun-
