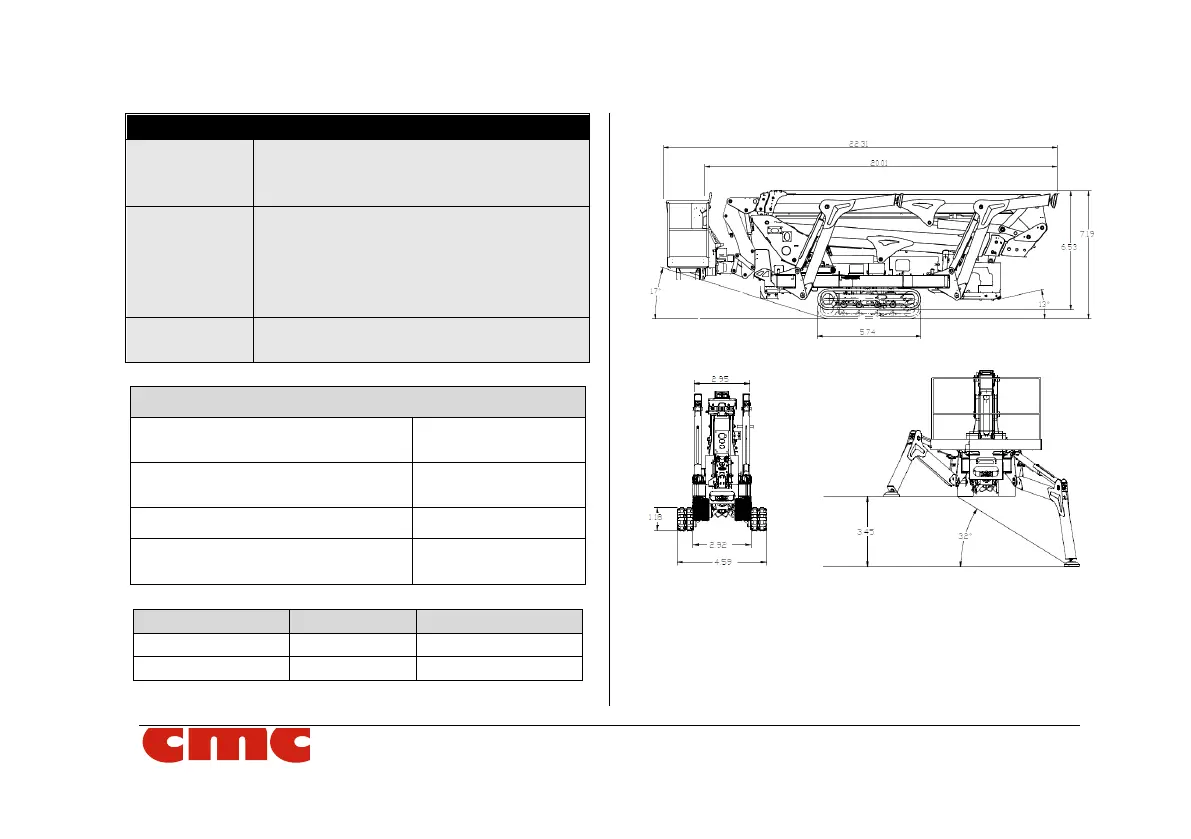

CMC S28 - Page 13

MAN.243 Rev.5 ENG - Use and maintenance manual S28 page 11 of 138
POWERS
Standard
hydraulic feed
1) Diesel engine:
Kubota D902-E4B, 16.1 kW (21.6 HP),
3200 rpm
*Optional
feeds
2) Electric engine
230/110/120 V
3) Electric motor G0901306, 9 kW, 48 V,
with lithium batteries 200 Ah
4) Hybrid motor (diesel + lithium batteries)
Fuel tank
capacity
30 l
Max values allowed according to USA/EU standards
Max. lowering and lifting speed
of the MEWP
0,4 m/s (1.31 ft/s)
Max. boom extension and
retraction speed
0,4 m/s (1.31 ft/s)
Max. turret rotation speed
0,7 m/s (2.3 ft/s)
Max. manual force in the basket
with 1 operator
400 N
Bolts
Size
Tightening torque
Slewing ring
M16 cl 10.9
28 daNm
Geared motor
M16 cl 10.9
28 daNm
