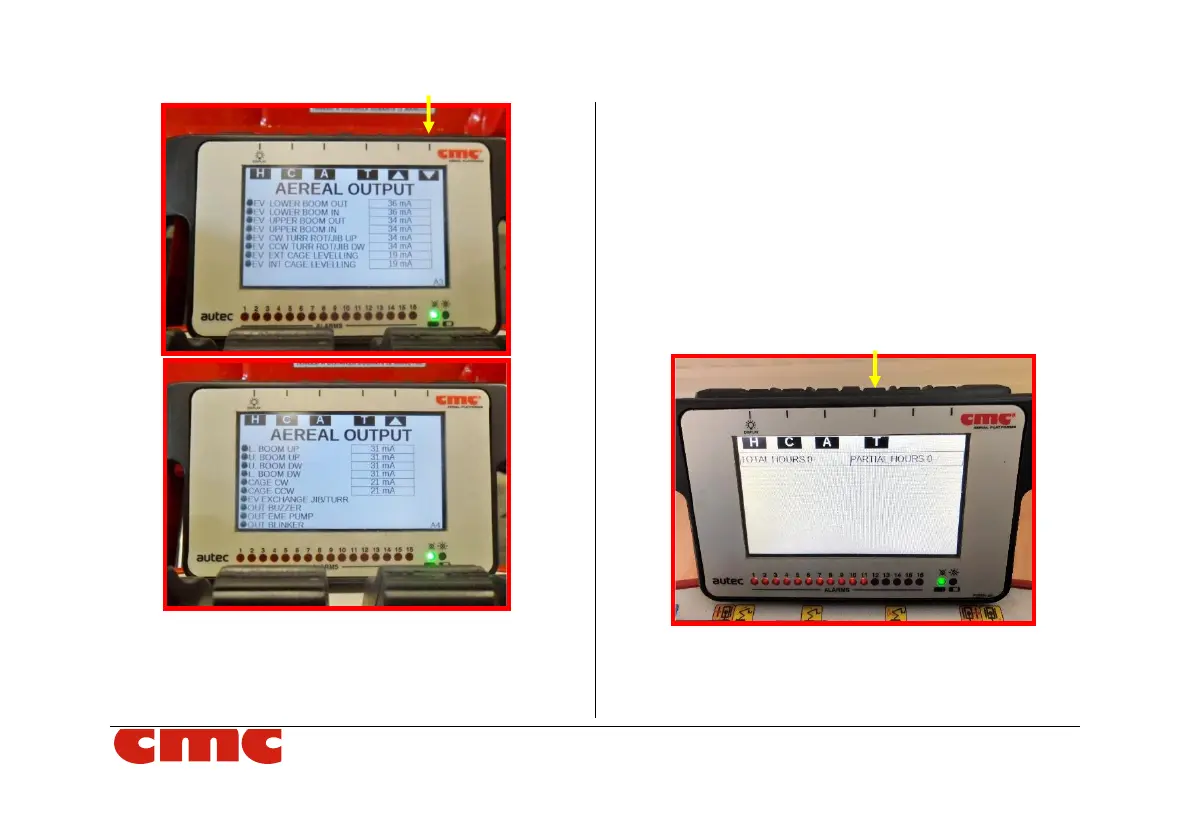

Picture 25: A2-A3-A4 screens.
In the A2, A3 and A4 screens (Picture 25), you can read
the data in input and output of the system:
- centering of the basket;
- tracks lock bypass;
- chains of extension/retraction of booms;
- boom 2 resting on a support;
- pin inserted to fix the basket;
- activation of the radio control emergency button;
- values of electro valves for extension/retraction and
lifting/lowering of booms, turret and jib rotation,
rotation and leveling of the basket;
- turret/jib exchange electro valve;
- activation of acoustic signal, emergency
electropump (*optional), flashing light (*optional).
